BZBGear ADAMO 4K Three-Camera Live Streaming Kit
For a three-camera 4K room, this kit adds a third ADAMO 4K PTZ camera to the same Commander/Quad Fusion 4K core used in BZBGear's two-camera bundle. Each camera runs a 1/1.8-inch Sony 4K CMOS sensor at 4K@60Hz, output simultaneously over HDMI, 12G-SDI, USB 3.0 and IP with SRT, so a director can cut between three angles while still feeding a separate recorder or stream off any single camera.
One BG-Commander joystick reaches all three cameras over VISCA, ONVIF or PELCO with PoE and 255 presets each. The Quad Fusion 4K mixes the switcher program at up to 4K60 with picture-in-picture and a USB 3.0 capture output for direct-to-software streaming. Choose zoom, camera color and mount for the room.

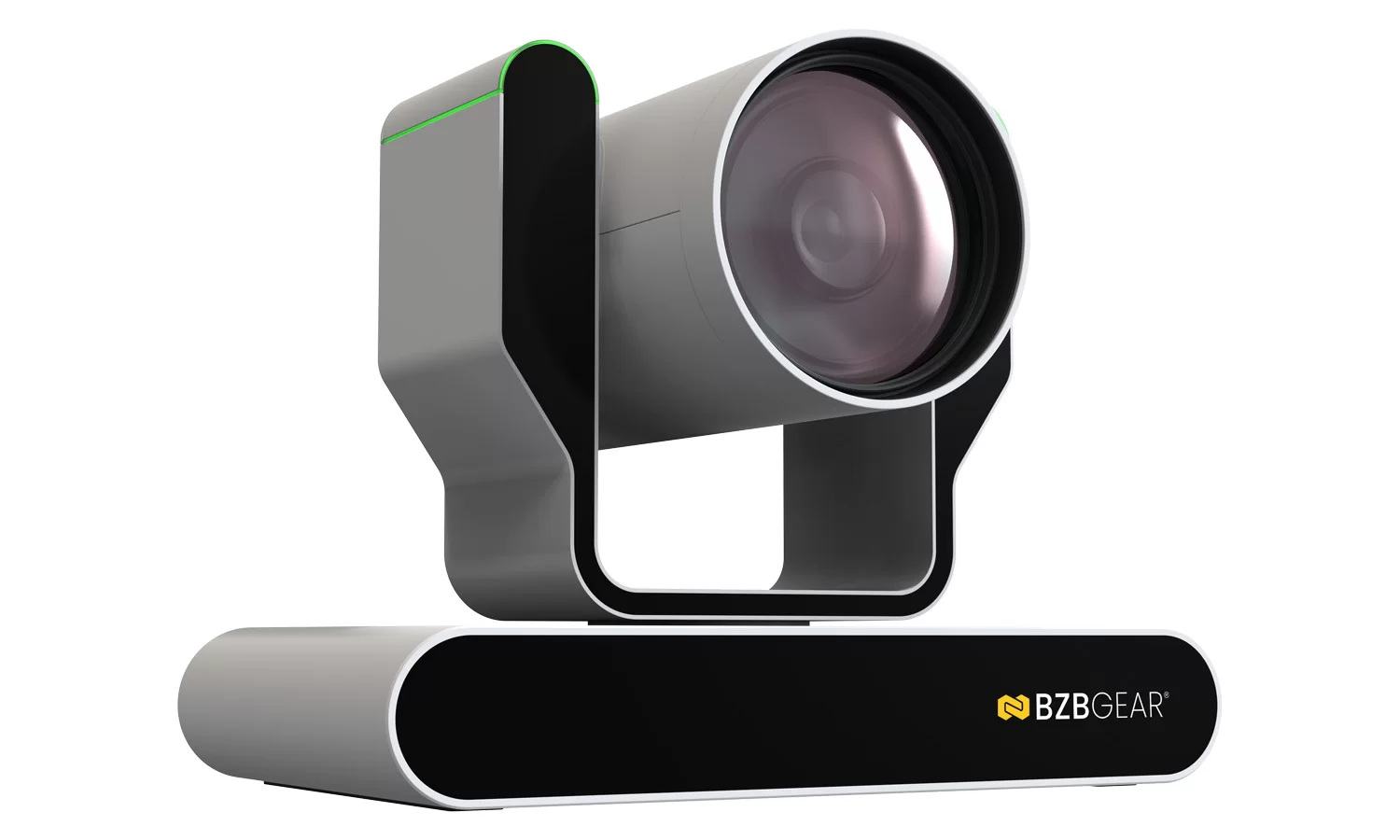

| Cameras included | 3x BZBGear ADAMO 4K PTZ, 12X or 25X zoom (matched per kit) |
|---|---|
| Camera sensor | 1/1.8" Sony 4K CMOS, 4K@60Hz |

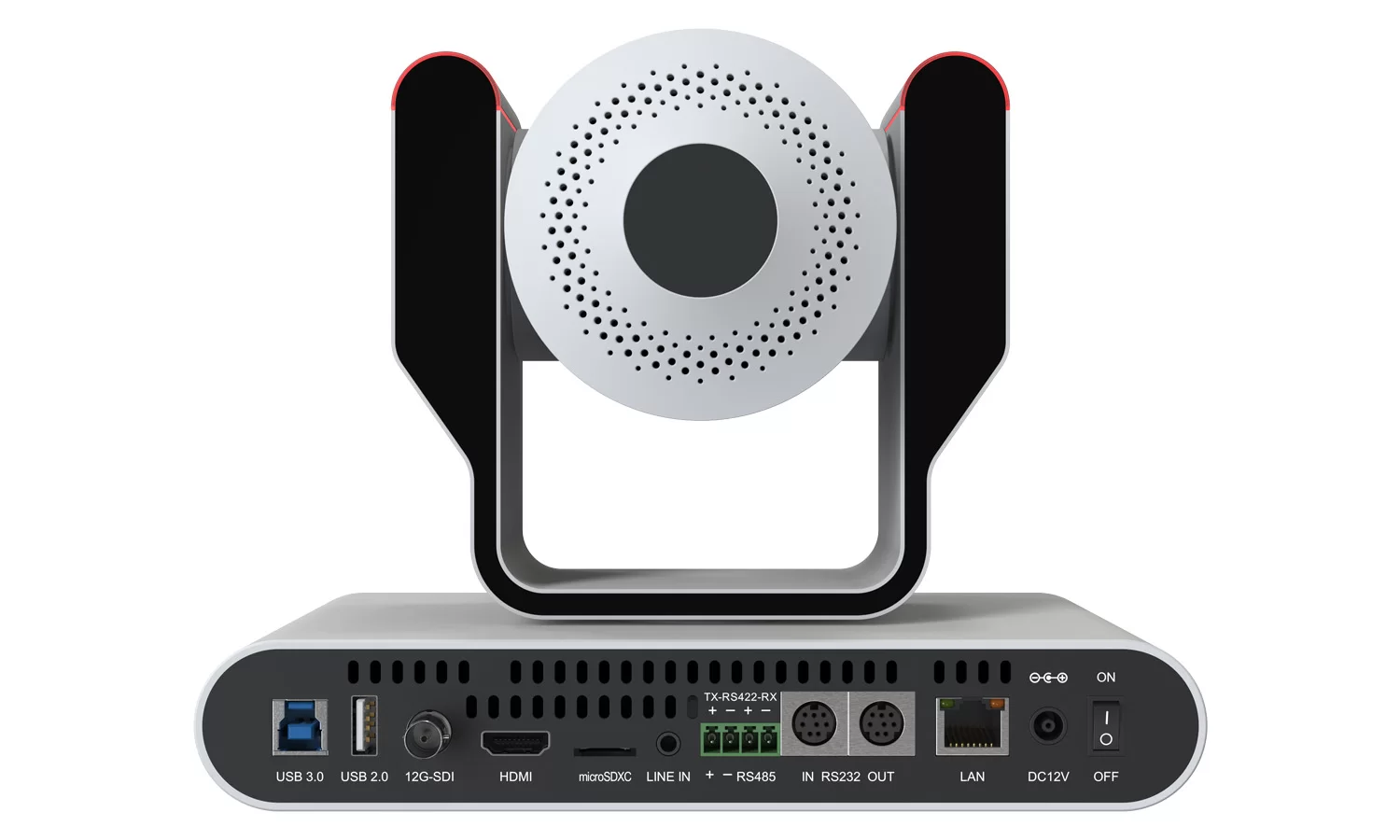

| Camera outputs | HDMI, 12G-SDI, USB 3.0, USB 2.0, IP streaming with SRT |
| Camera control | PoE, RS-232, RS-422; VISCA/ONVIF/PELCO protocols |
| Controller | 1x BG-Commander joystick, LAN/RS-232/RS-422/485, PoE, 255 presets/camera |
| Switcher/mixer | 1x Quad Fusion 4K, 4-channel HDMI/DP up to 4K60, PIP/POP, USB 3.0 program capture |
| Mount options | Ceiling mount standard; wall mount on the 12X kit |
| Storage | MicroSD slot per camera, up to 1TB |
