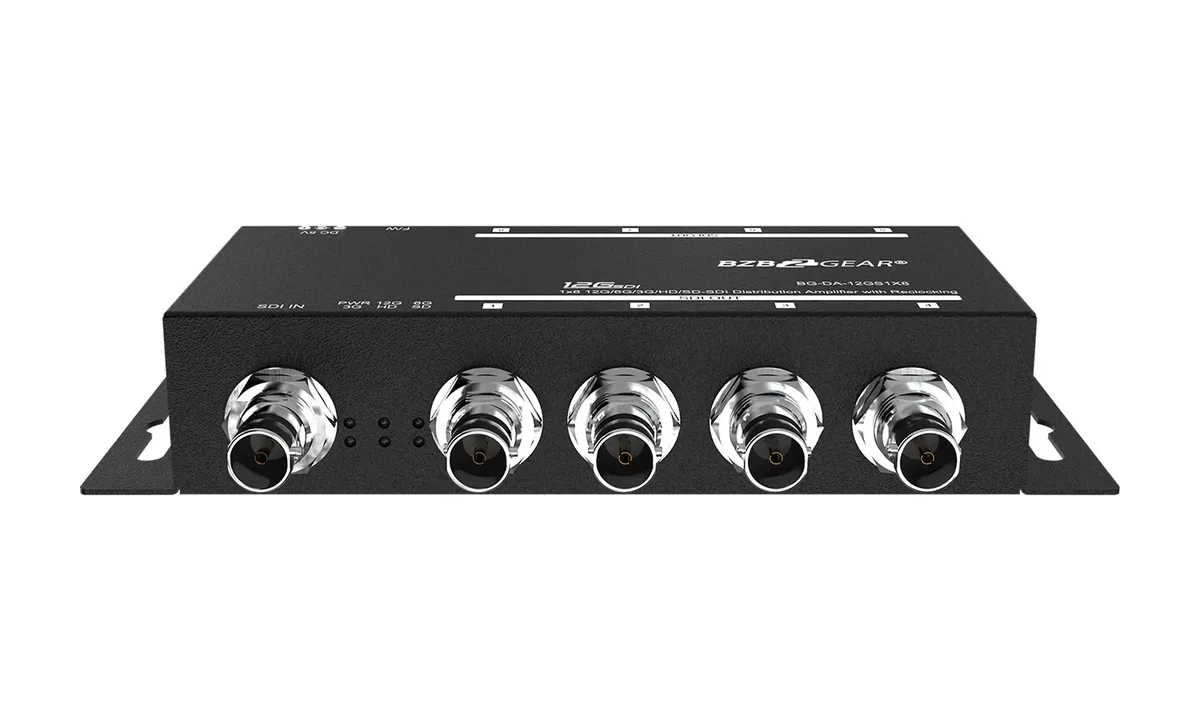

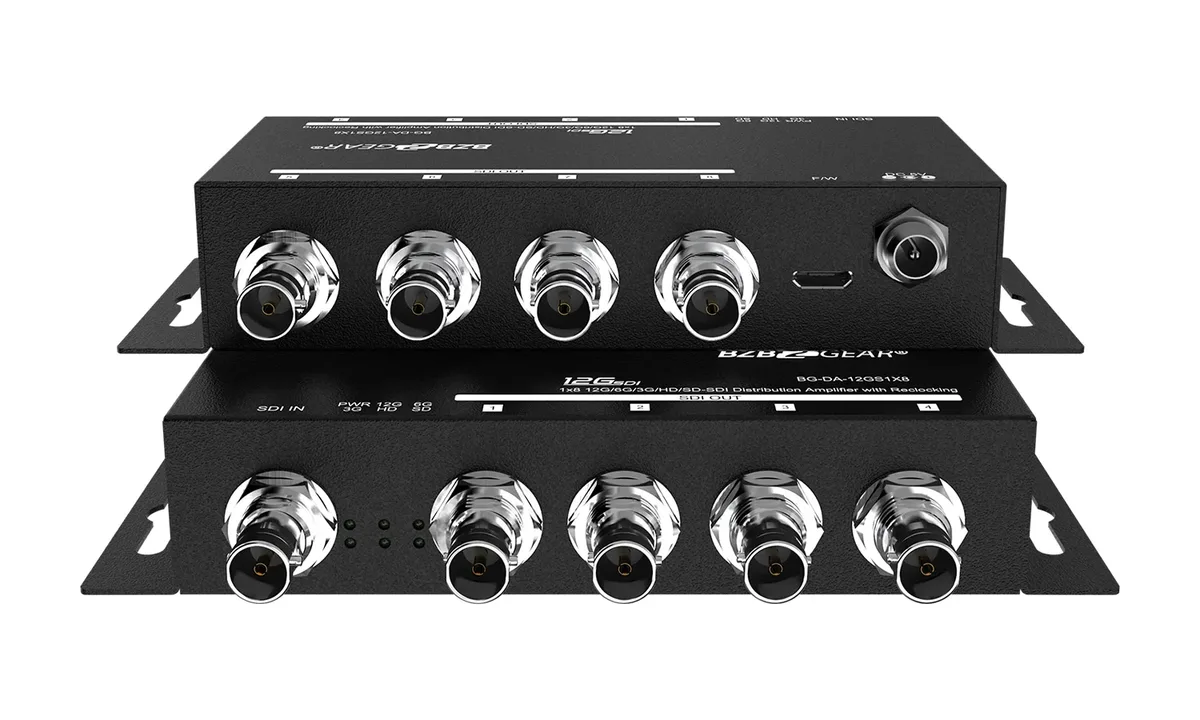

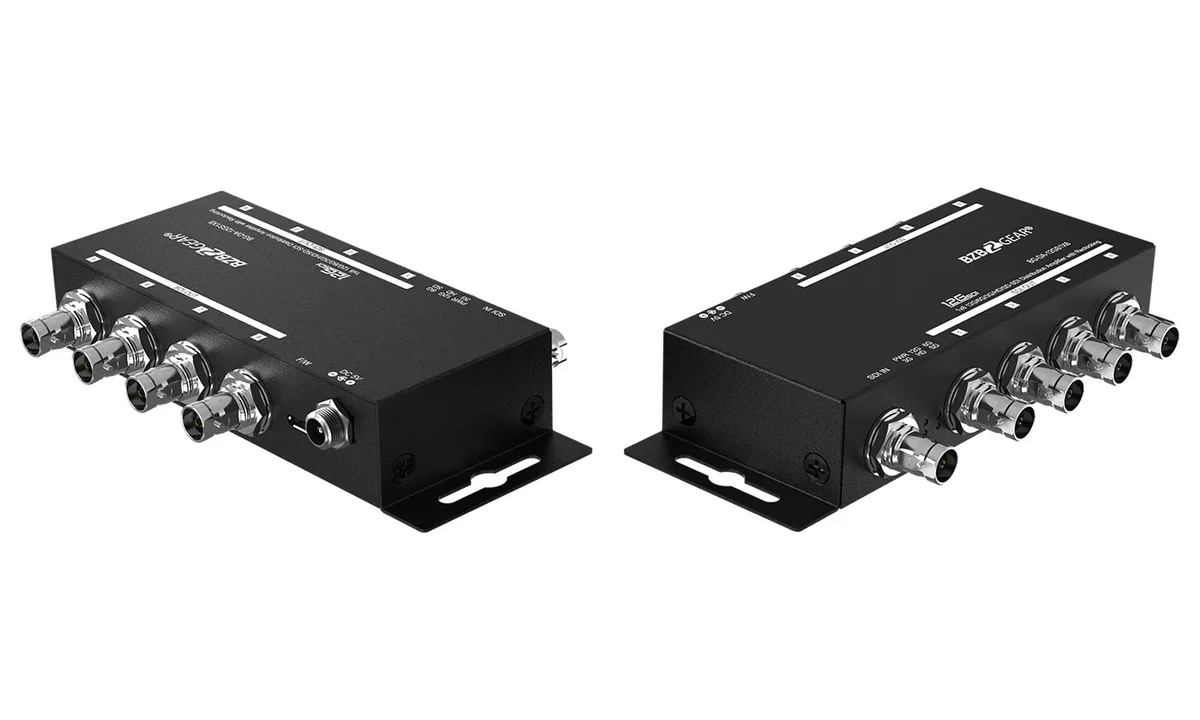

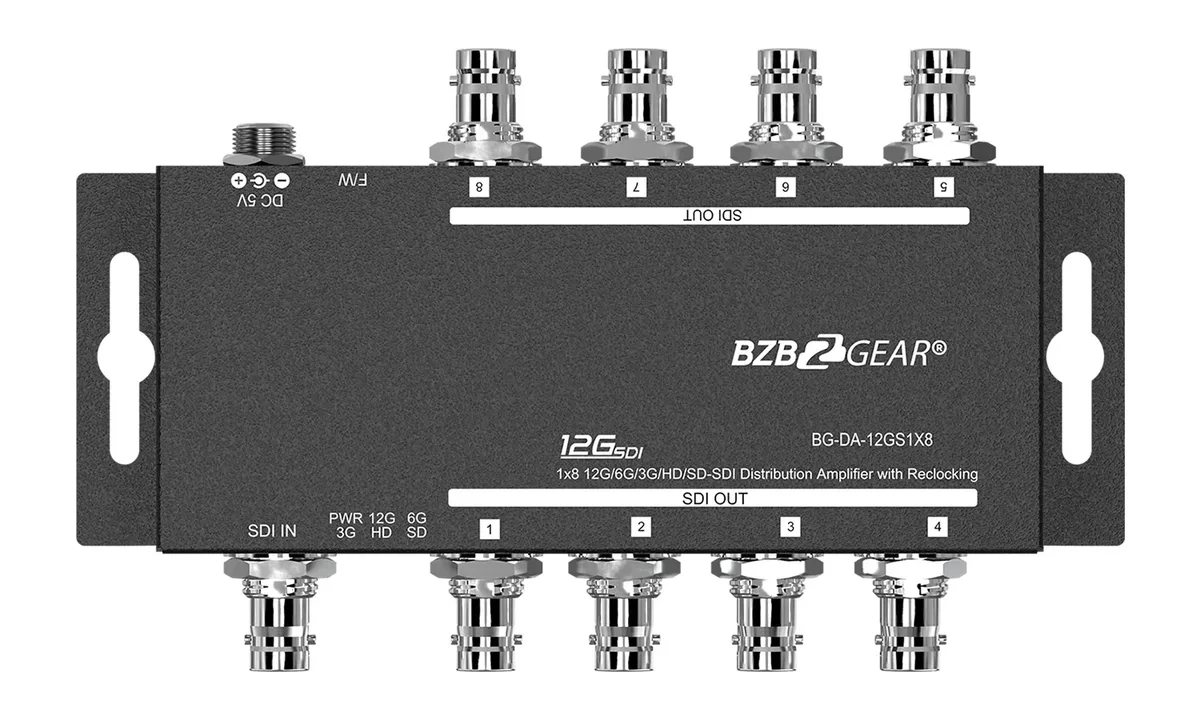

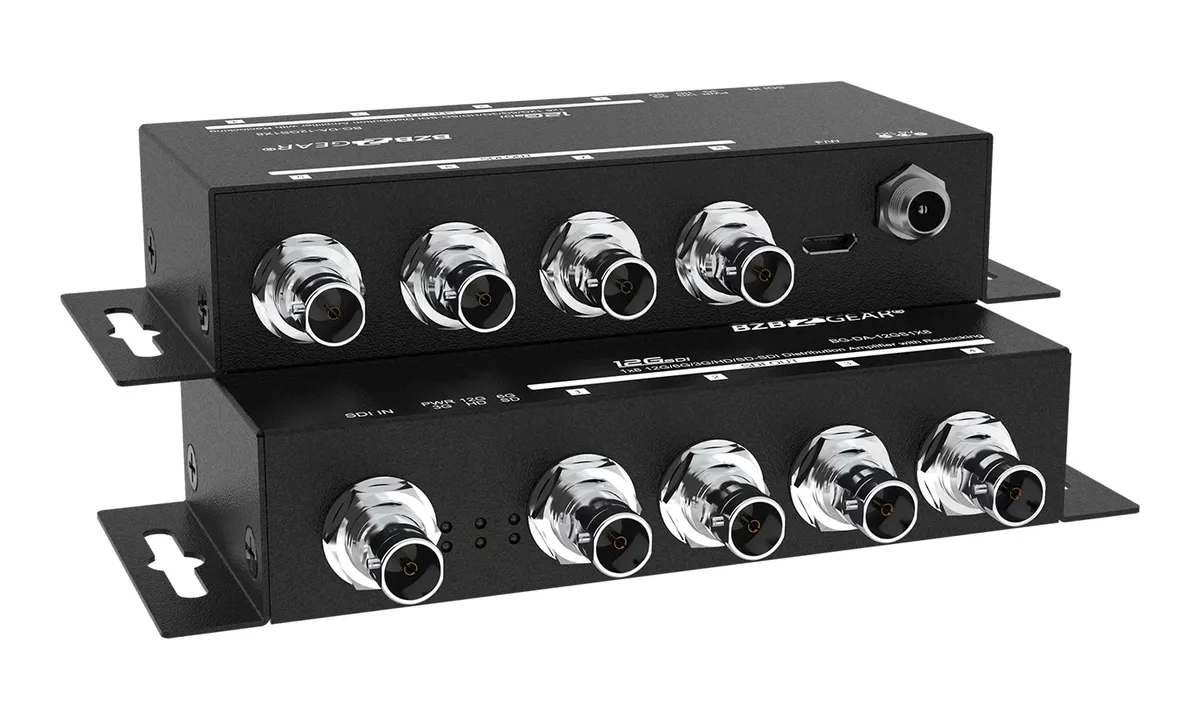

BZBGear BG-DA-12GS1X8 12G-SDI 1x8 Distribution Amplifier
The BG-DA-12GS1X8 is the eight-output member of BZBGear's 12G-SDI distribution line. It auto-detects SD, HD, 3G, 6G and 12G signals and buffers and reclocks each of the eight outputs separately.
That makes it the unit to reach for when one camera or router feed has to arrive at a monitor wall, a set of recorders and a stream encoder at the same time without any of them affecting the others. Input cable equalization is automatic, reach is about 70 m at 12G and 100 m at 6G, and the outputs are 75 ohm interlocked BNC.
- Input1x BNC [SDI]
- Output8x BNC [SDI]
- Power supply5V 2A DC
- Power consumption2.5 Watts [max]
- WeightModel: 7 oz [198g] Package: 0.9 lbs [425g]
| Video bandwidth | 11.88Gpbs & 11.88/1.001Gbps |
|---|---|
| Input | 1x BNC [] |
| Output | 8x BNC [SDI] |
| Power supply | 5V 2A DC |
| Power consumption | 2.5 Watts [max] |
| Dimensions [L x W x H] | Model: 5.2" x 2.1" x 1.1" [133 x 53 x 28 mm] Package: 7.8" x 5.4" x 2.9" [198 x 137 x 74 mm] |
| Weight | Model: 7 oz [198g] Package: 0.9 lbs [425g] |
| SDI standard | SD/HD/3G/6G/ |
SDISerial Digital Interface. The coaxial video connection used in broadcast. It carries uncompressed video and embedded audio over long cable runs.
12G-SDISDI at 12 Gbit/s. One coaxial cable carries 4K video at up to 60 frames per second.
