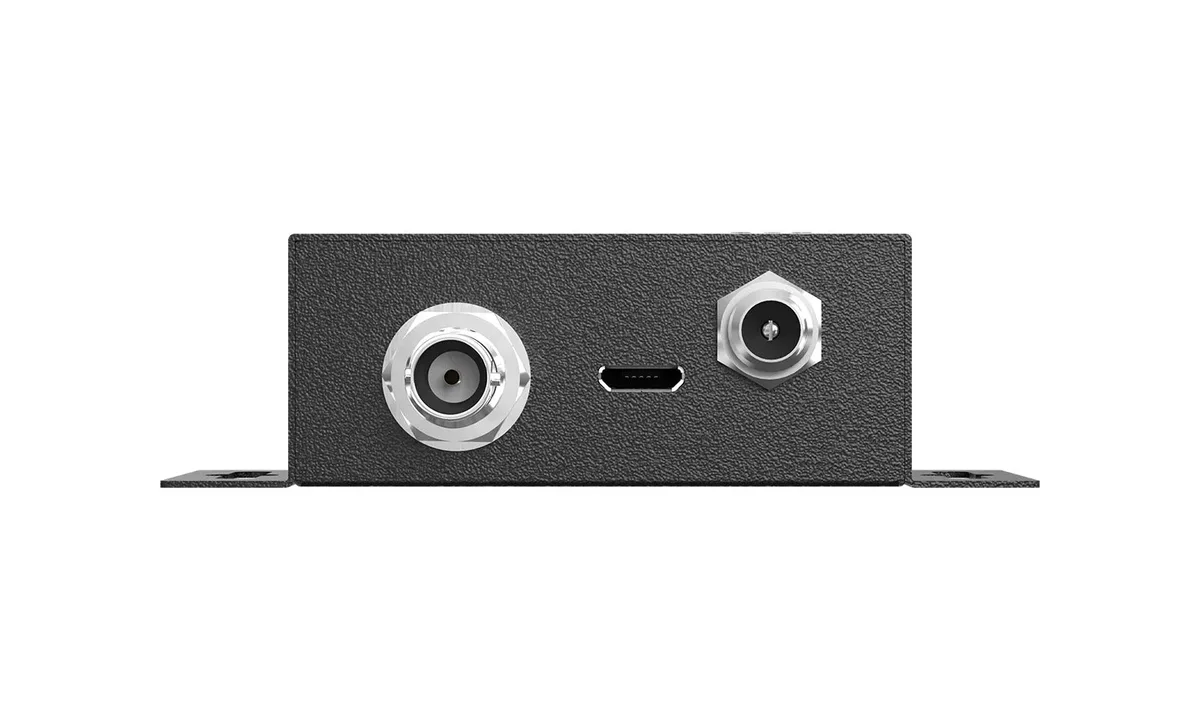

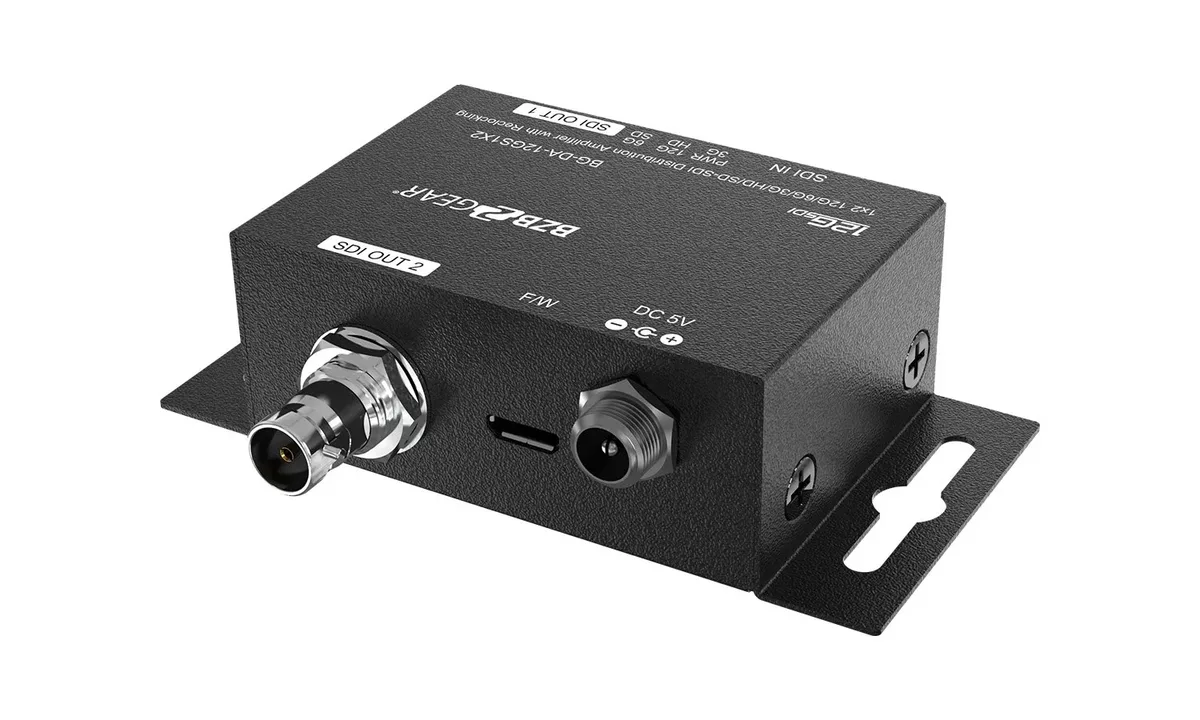

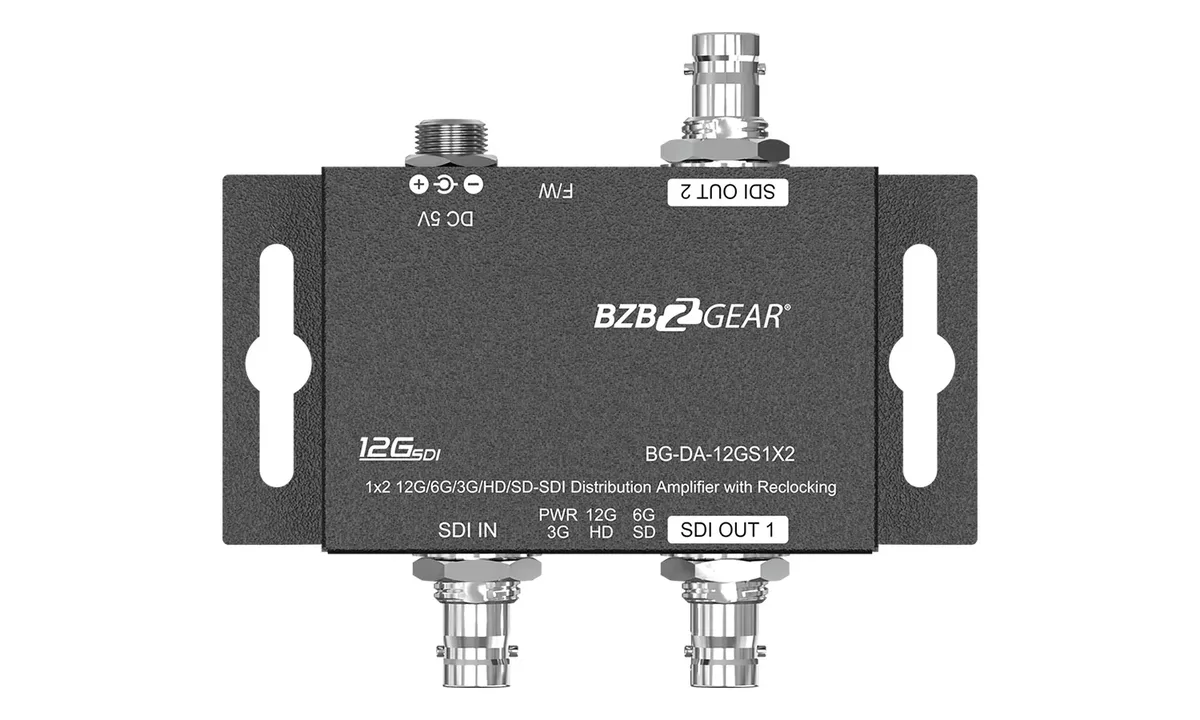

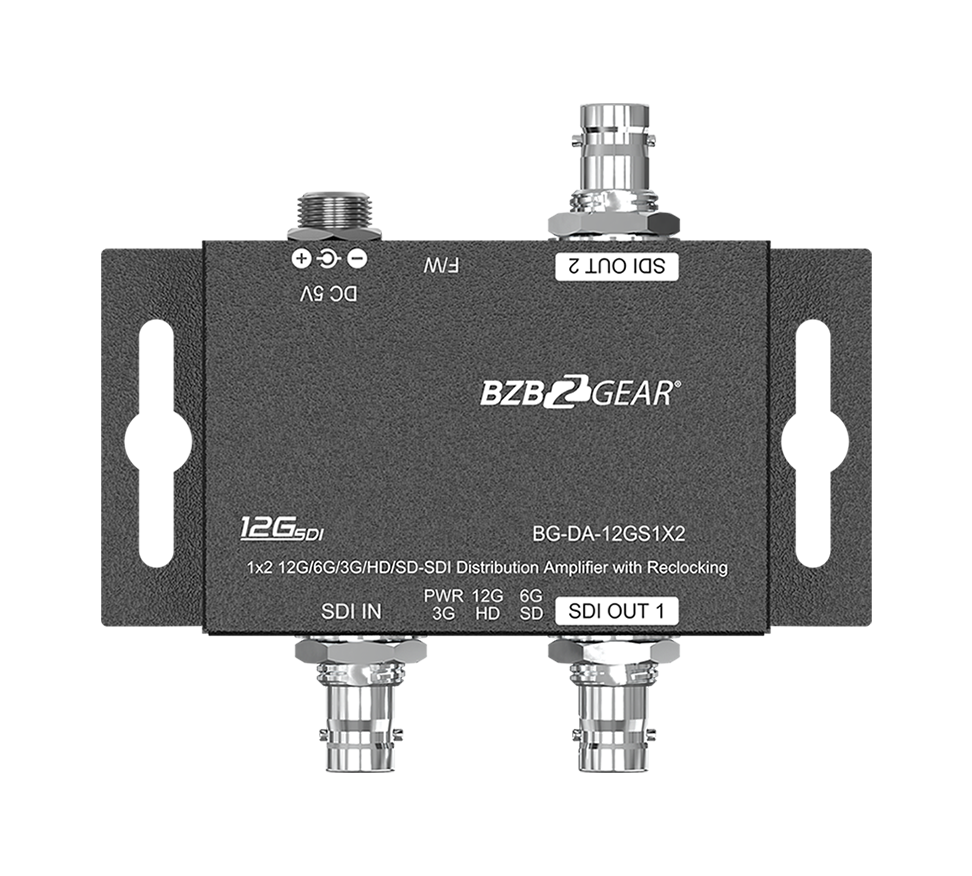

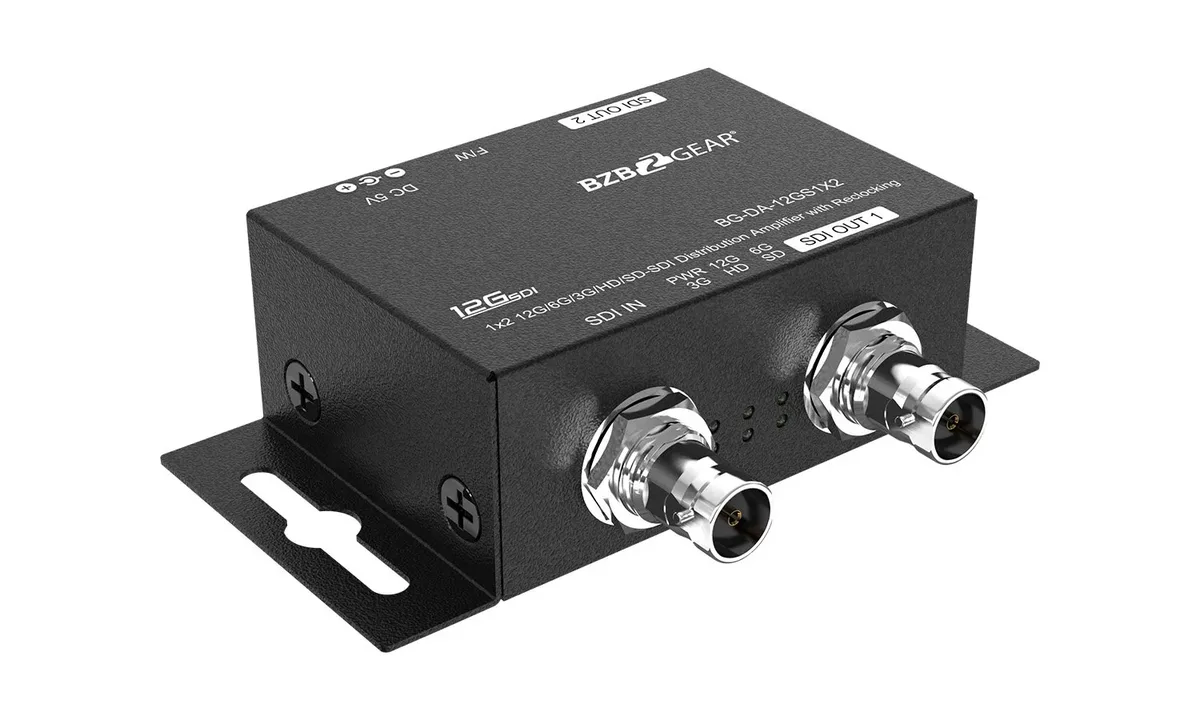

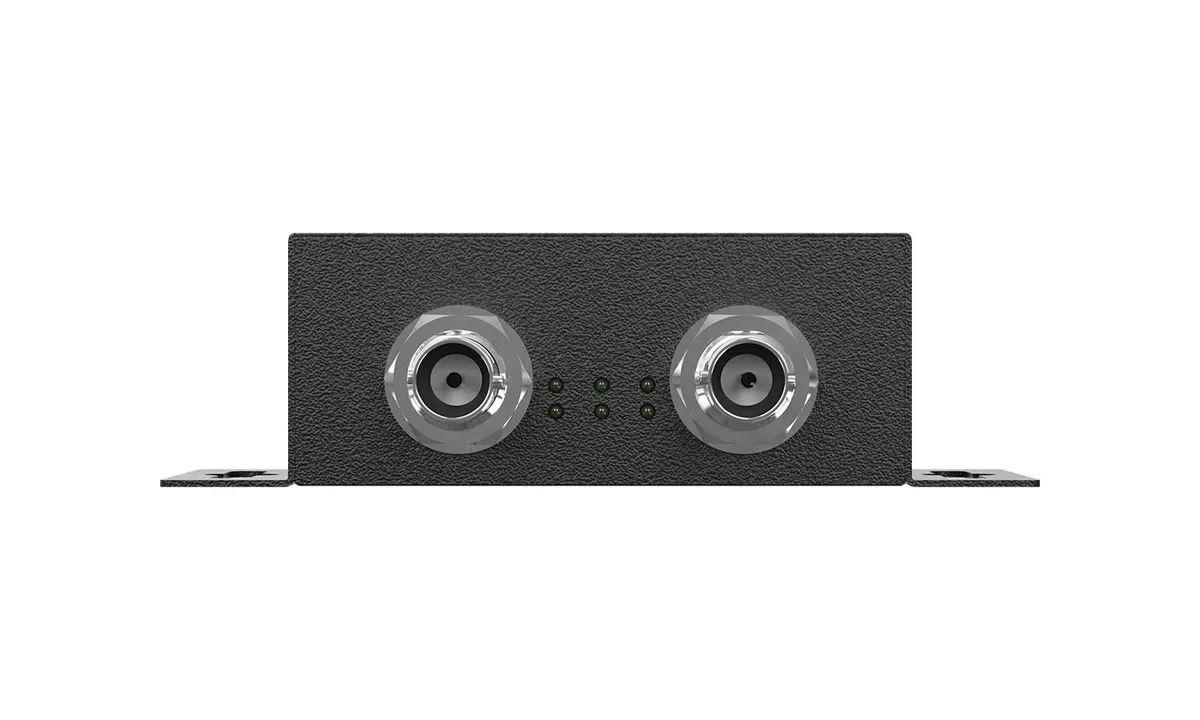

BZBGear BG-DA-12GS1X2 12G-SDI 1x2 Distribution Amplifier

The BG-DA-12GS1X2 takes one SDI source at any rate from SD to 12G and hands it to two BNC outputs. Each output is buffered and reclocked separately, so a long run out of the amplifier starts clean and units can be cascaded to build a larger distribution tree.

Automatic input cable equalization recovers a tired signal before it is split, which is what makes the quoted reach realistic: about 70 m at 12G, 100 m at 6G and further still at 3G and below. It meets SMPTE 424M, 292M, 344M and 259M as well as DVB-ASI, and it is immune to RP-198 pathological patterns.

Video bandwidth	11.88Gpbs & 11.88/1.001Gbps
Input	1x BNC [SDI]
Output	2x BNC [SDI]
Power supply	5V 2A DC
Power consumption	2.5 Watts [max]
Dimensions [L x W x H]	Model: 3" x 1.7" x 1.1" [77 x 42 x 28 mm] Package: 6.4" x 4.4" x 1.7" [165 x 111 x 42mm]
Weight	Model: 3.1 oz [89g] Package: 0.7 lbs [316g]
SDI standard	SD/HD/3G/6G/12G-SDI
