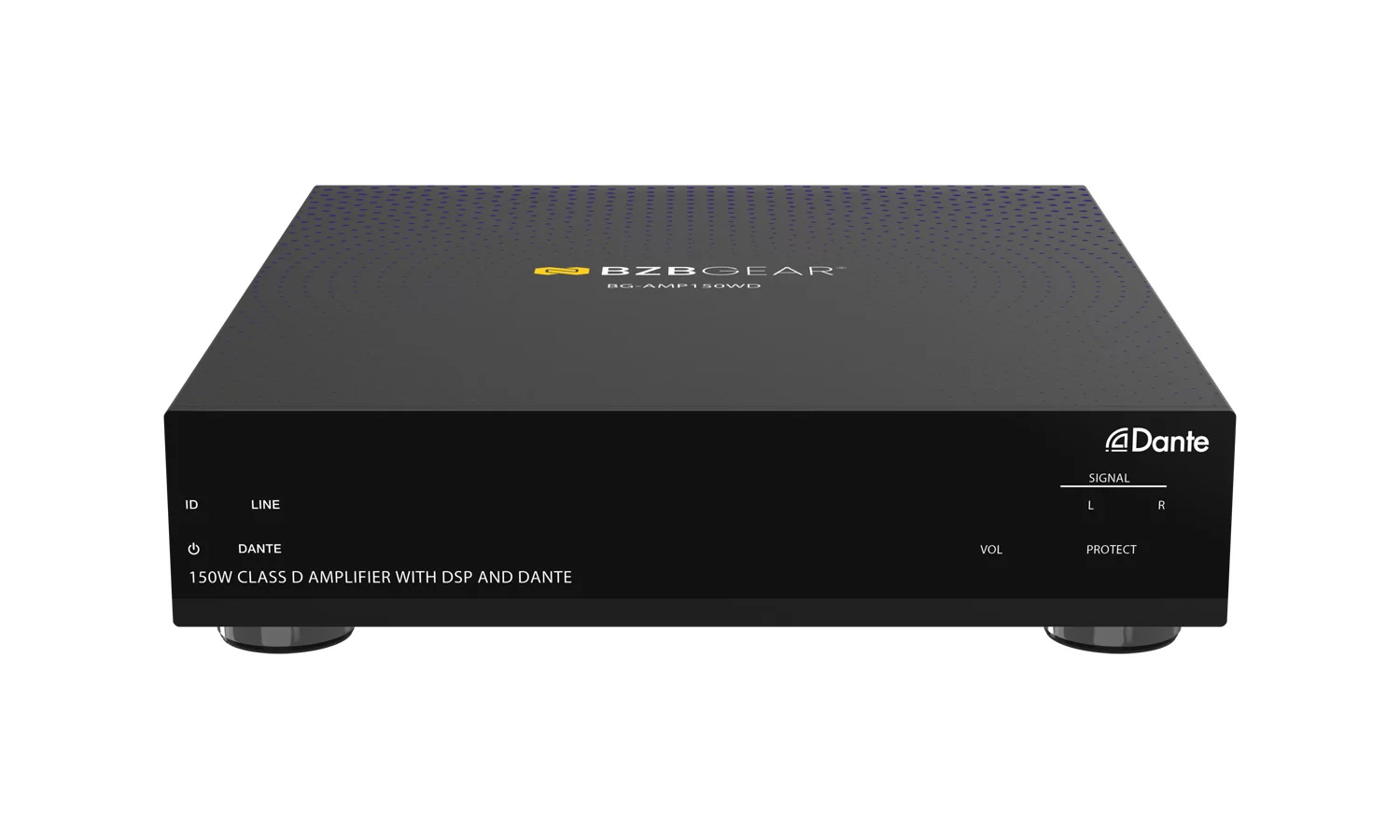

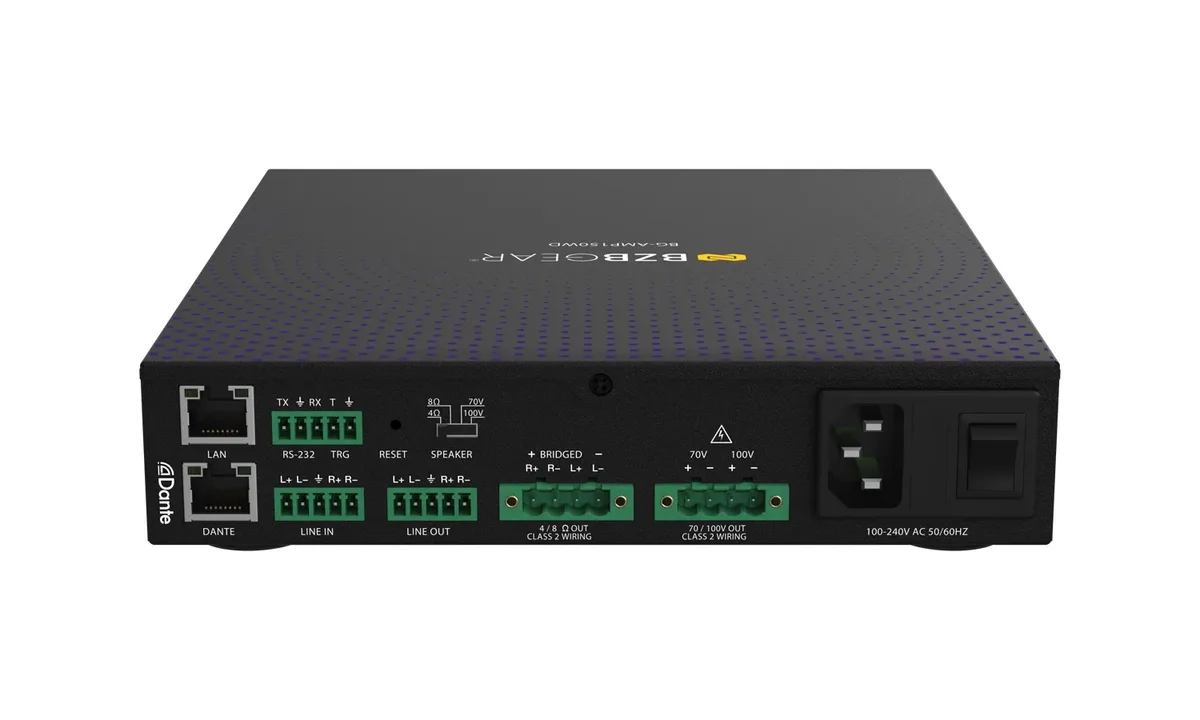

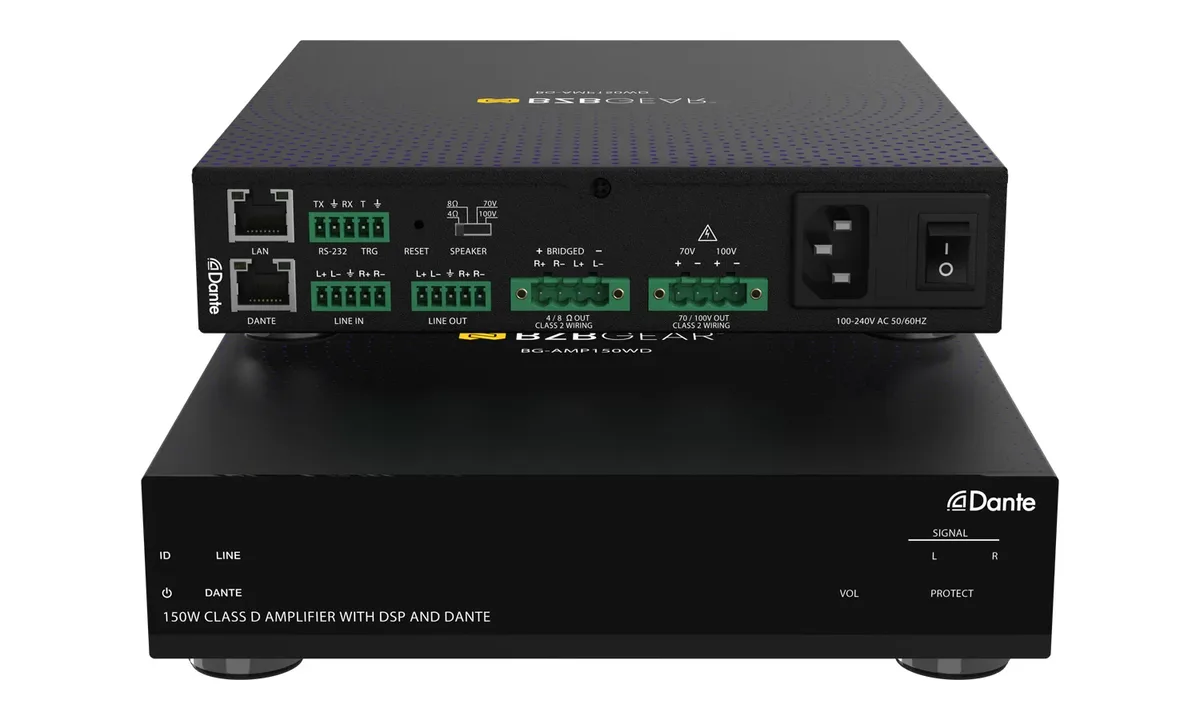

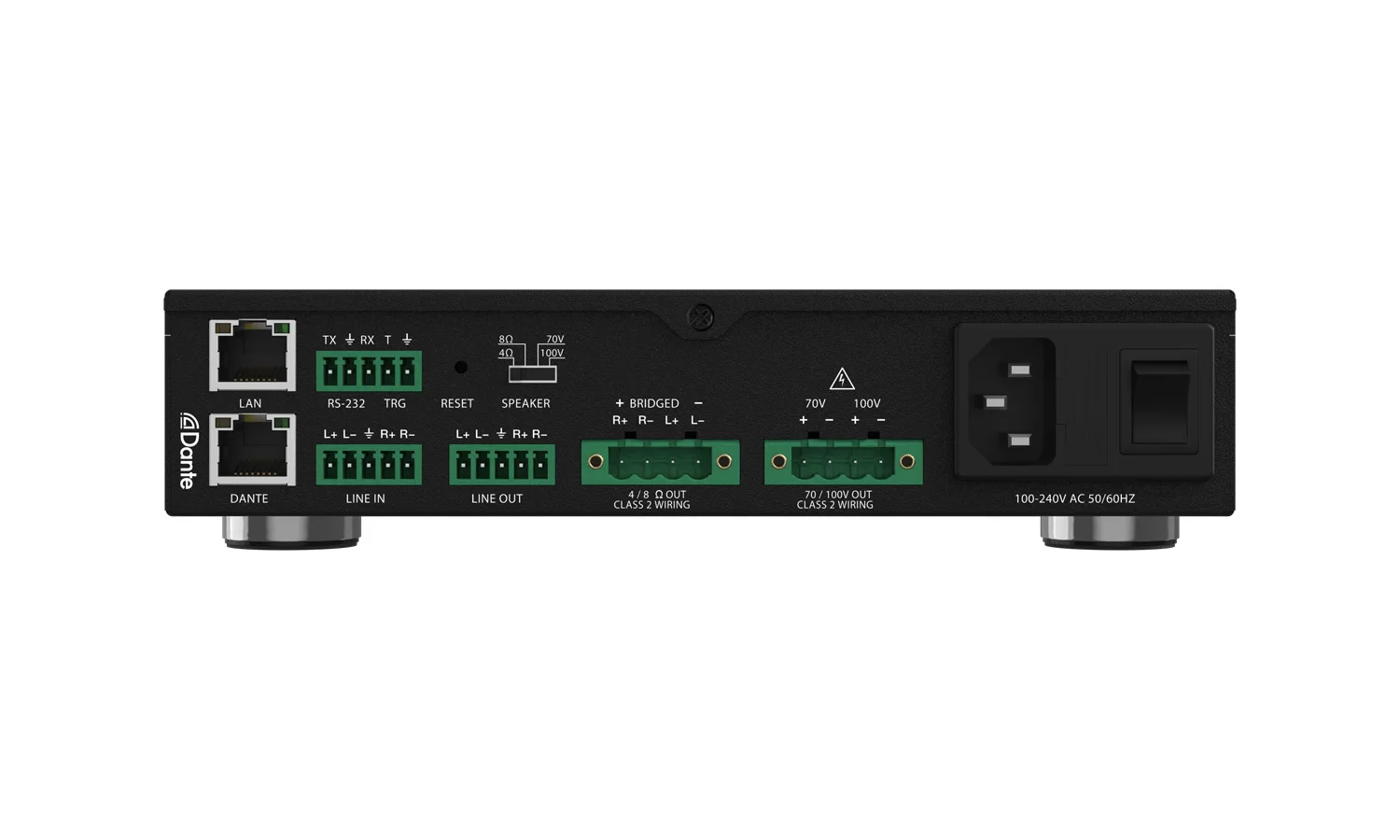

BZBGear BG-AMP150WD 150W Class D Amplifier with DSP and Dante

The BG-AMP150WD is a compact class D amplifier that takes analog line level or Dante and drives either a low-impedance stereo pair or a constant-voltage line. Output is 2 x 75W into 4 or 8 ohms, or 150W bridged into 8 ohms, 70V or 100V, with a switch to change modes.

Onboard DSP runs at 24-bit and 48 kHz with independent input gain, output EQ and volume, and control is over RS-232 or the web interface. Frequency response is 20 Hz to 20 kHz within 3 dB, signal to noise is 87 dB, and THD+N is 0.04 percent at 1 kHz and 1W.

Input	1x Dante Network audio input 1x LINE balanced stereo 0dBu/10k input
Output	1x Dante Network audio output 1x Stereo or constant voltage 70V/100V speaker output 1x LINE balanced stereo output
Audio Format	LINE IN [Analog audio, Balanced 2CH, Max input level 2VRMS] LINE OUT [Analog audio, Balanced 2CH, Max output level 2VRMS] DANTE [Digital audio 2x2 in/out, PCM 2CH 44.1K-96KHz 16/24Bit] AMP OUT [Analog audio, Balanced 2CH, Max output level 24.5VRMS] 70V/100V AMP OUT [Analog audio, Unbalanced 1CH, Max output level 70V/100VRMS]
Control	RS-232, Web GUI
Control:	1x RS-232/TRG [5pin-3.81mm phoenix connector] [TRG: 5-12V trigger input to turn on/off the amplifier] 1x LAN [RJ45 connector]
Power Supply	DC Input: AC100 - 240V 50/60Hz
Power Consumption	75W
Dimensions (WxDxH)	9.4in x 8.3in x 1.7in [240mm x 210mm x 44mm]
