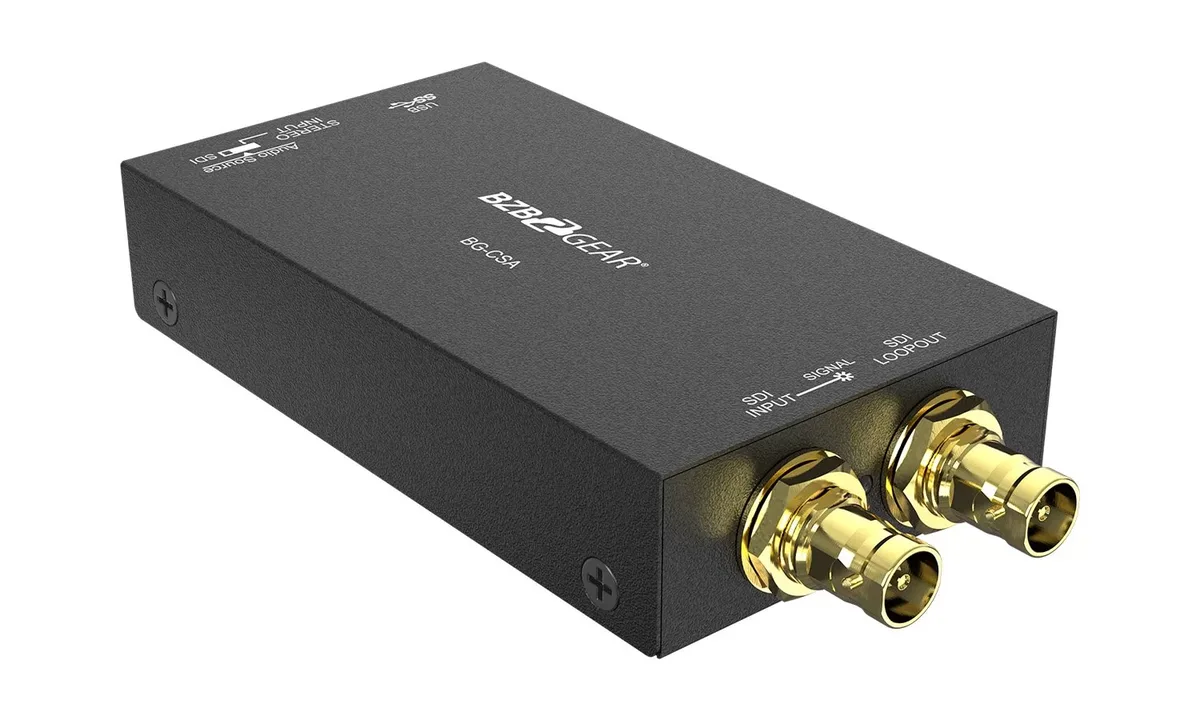

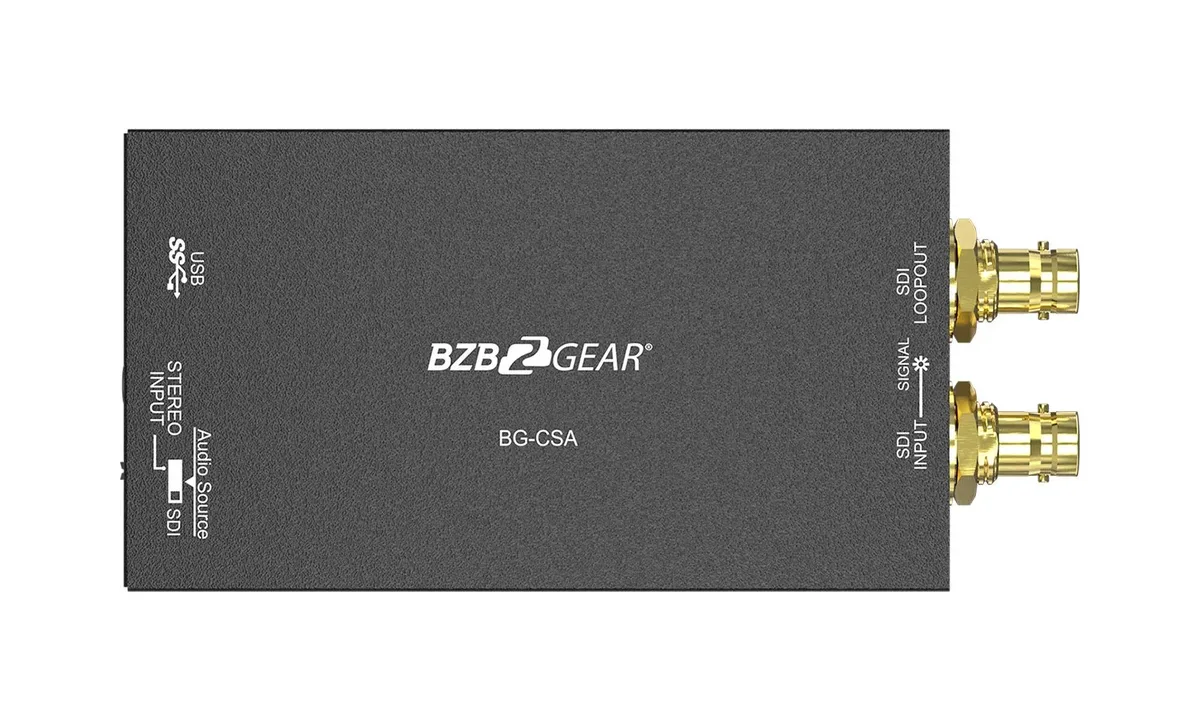

BZBGear BG-CSA 3G-SDI Capture Device

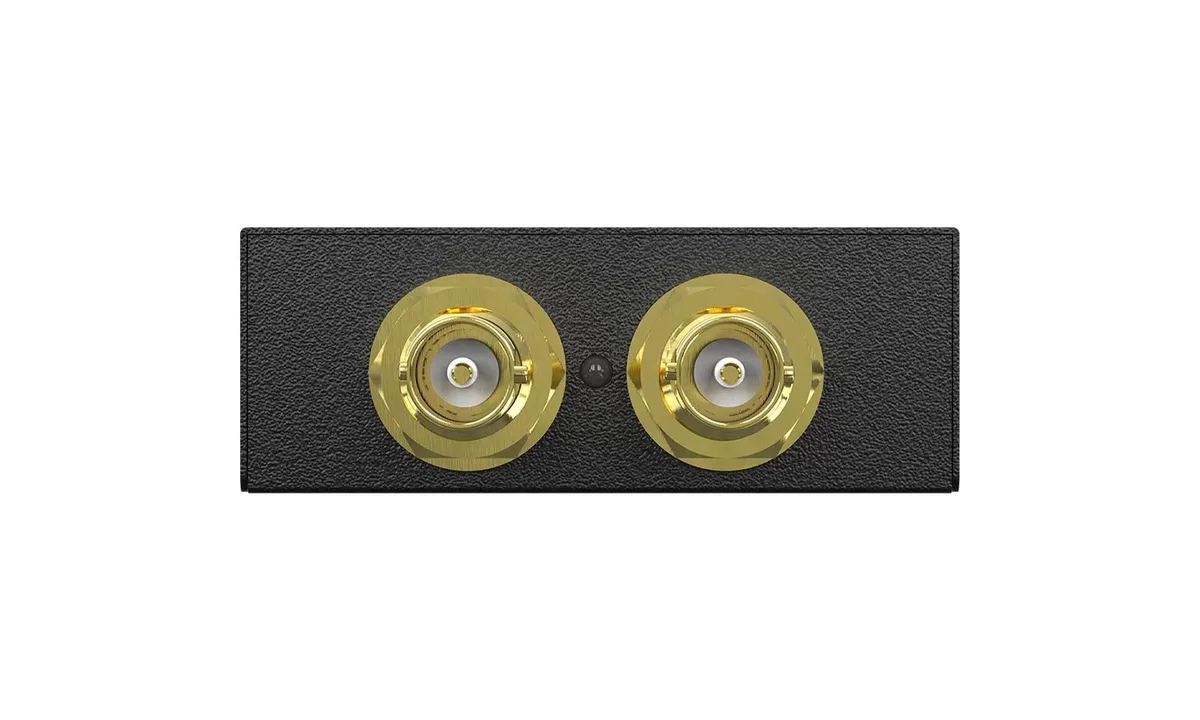

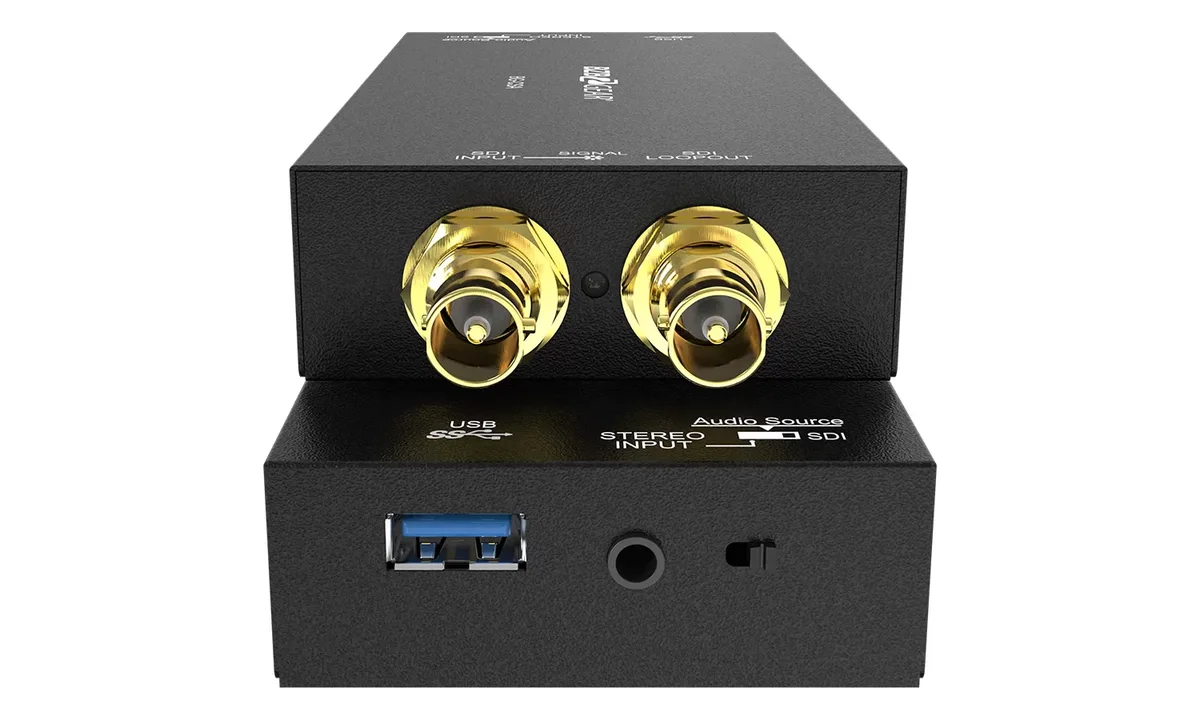

The CSA is the simple, pocketable way to get an SDI camera into a computer: BNC in, USB 3.0 out, no drivers, and the machine sees a standard UAC/UVC device. Data rate is up to 350 Mbps and it handles 3G, HD and SD-SDI with the usual SMPTE rates.

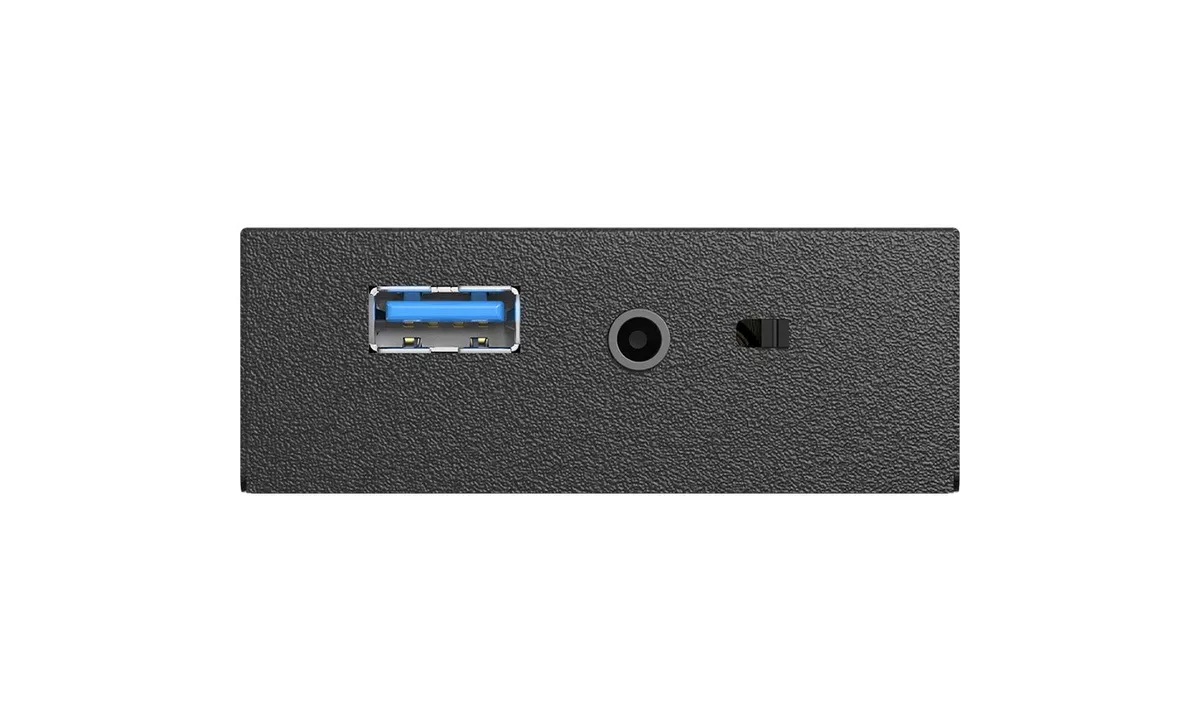

Audio arrives either embedded in the SDI or on a 3.5 mm analog input, and comes out as stereo 16-bit 48 kHz. The housing is aluminium, it is powered over Micro-USB at 4 watts, and it works with OBS, Potplayer, Skype, Hangouts and similar on Windows, macOS and Linux.
| Maximum data rate | 350 Mbps |
|---|---|
| Video output resolutions | SMPTE 424M-2.97 Gbps 3G-SDI: 1080p at 50/59.94/60 Hz (4:2:2) SMPTE 274M-1.485 Gbps HD-SDI: 1080p at 23.98, 24, 25, 29.97, 30 Hz, 1080i at 50, 59.94, 60 Hz SMPTE 292M-1.485 Gbps HD-SDI: 1080i at 30 Hz, 720p at 60 Hz SMPTE 296M-1.485 Gbps HD-SDI: 720p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz SMPTE 259M-270 Mbps SD-SDI: NTSC 525 at 59.94 Hz, PAL 625 at 50 Hz |
| Audio output format | Stereo / 16-bit / 48000Hz |
| Recording video format | YUY2 (USB3.1 Gen 1), MJPG (USB2.0/3.1 Gen 1) |
| Audio input | SDI Embedded Audio 3.5mm Analog Stereo Audio |
| Operating systems | Windows 7, 8, 10, Mac OS X 10.9 or above, Linux |
| Housing | Aluminum |
| Power supply | 5V DC, 1A |
| Power consumption | 4 watts (Max) |
| Weight | 0.3 lbs [135g] |
