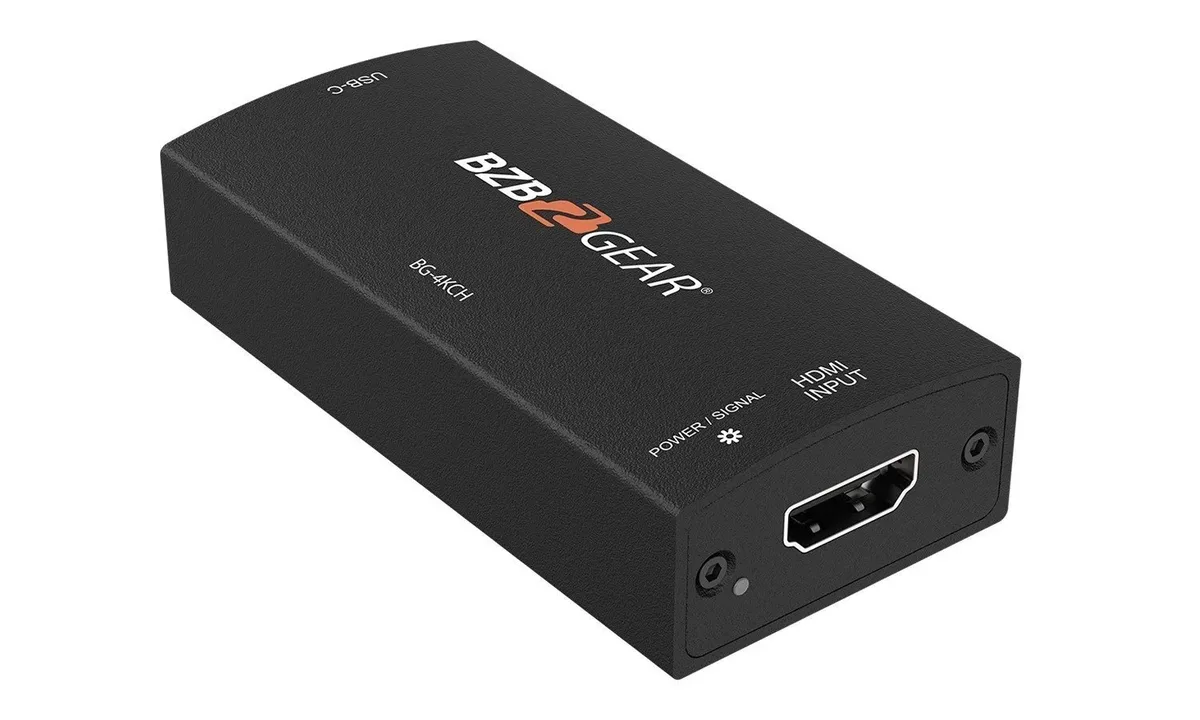

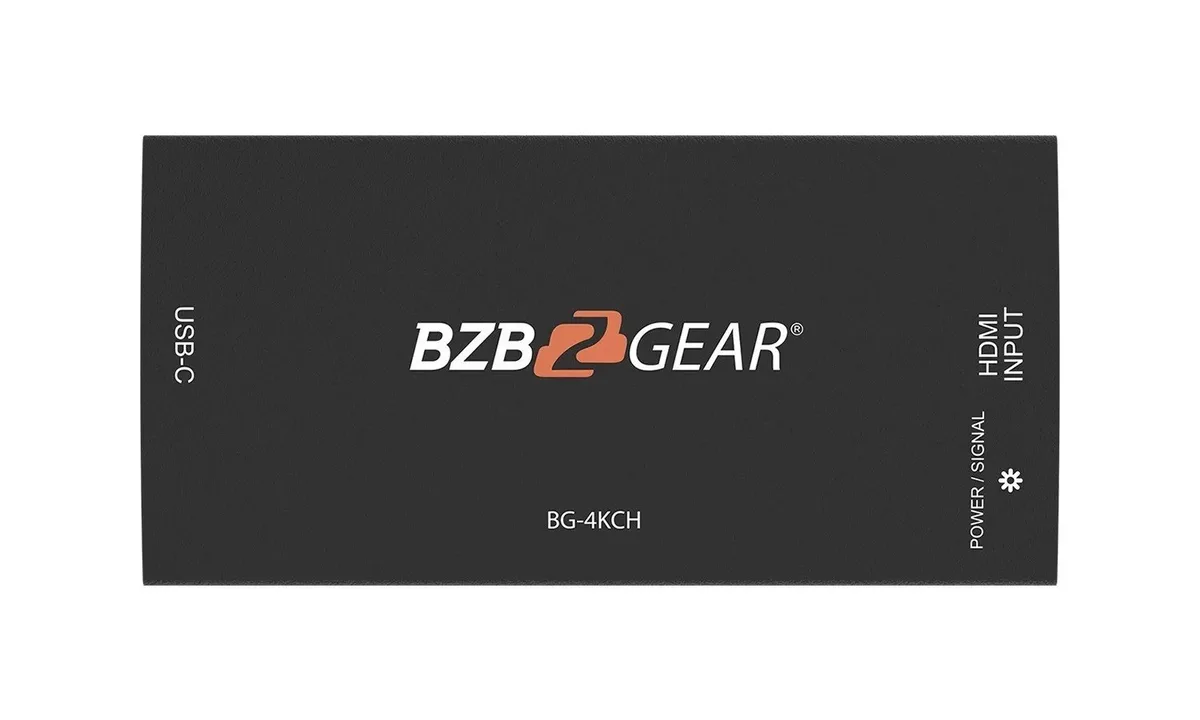

BZBGear BG-4KCH USB-C 4K Capture Card with Scaler
The BG-4KCH puts a camera, console, computer or player onto a laptop as a standard USB video device. It accepts HDMI up to 4K30 and needs no driver, so conferencing and streaming applications see it as a webcam the moment it is plugged in.
Over USB 3.1 Gen 1 it passes RGB, YUY2 and NV12; on a USB 2.0 port it falls back to YUY2 and NV12 at up to 720p30. HDMI audio is captured as 2-channel 16-bit PCM alongside the video. Input bandwidth is 297 MHz and firmware updates go in through the same USB-C connector.
| Input Video bandwidth | 297MHz |
|---|---|
| Recording Video Format | RGB/YUY2/NV12 (USB3.1 Gen 1), YUY2/NV12 (USB2.0) |

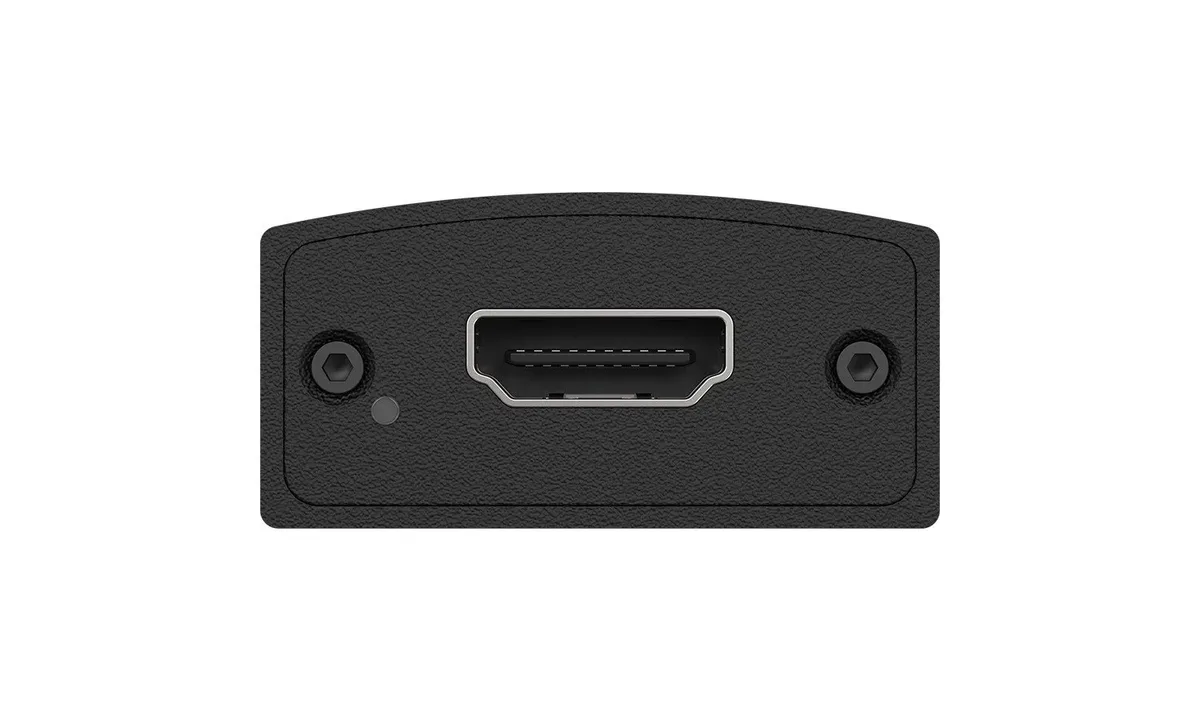

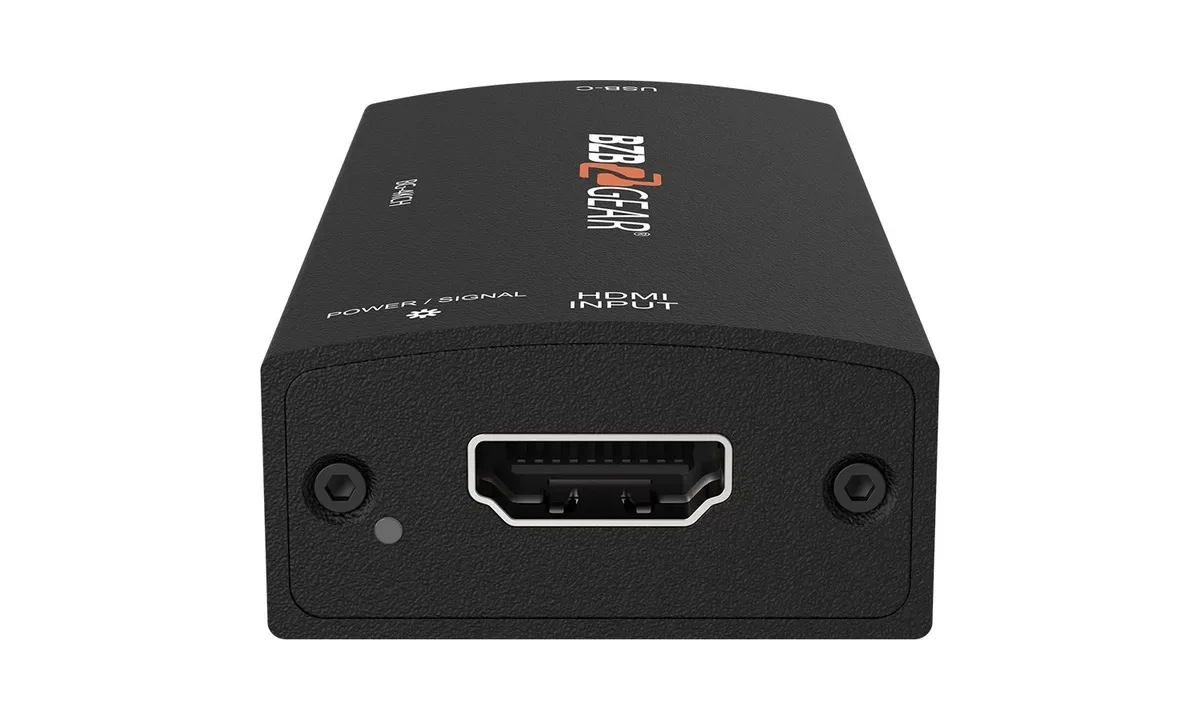

| Input | 1x HDMI |

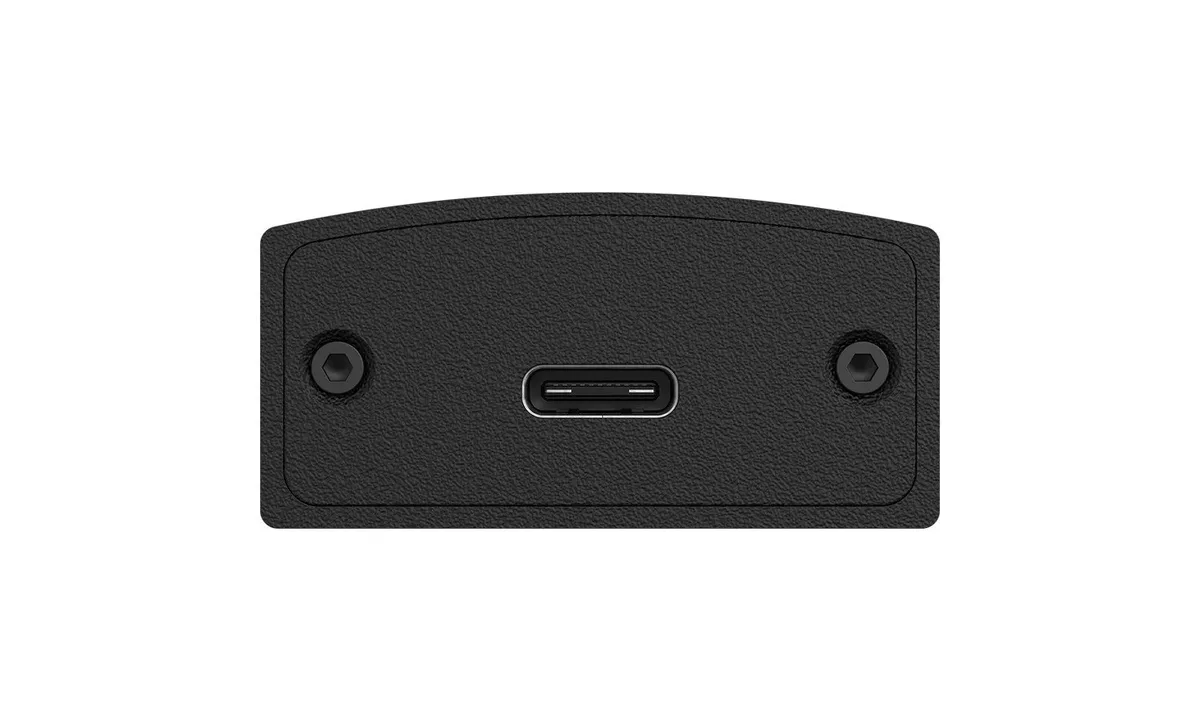

| Output | 1x USB-C |
| Audio Input | HDMI Embedded Audio |
| Audio Format | 2CH 16bit PCM |
| Power supply | Via USB-C |
| Power consumption | 3 Watts (max) |
