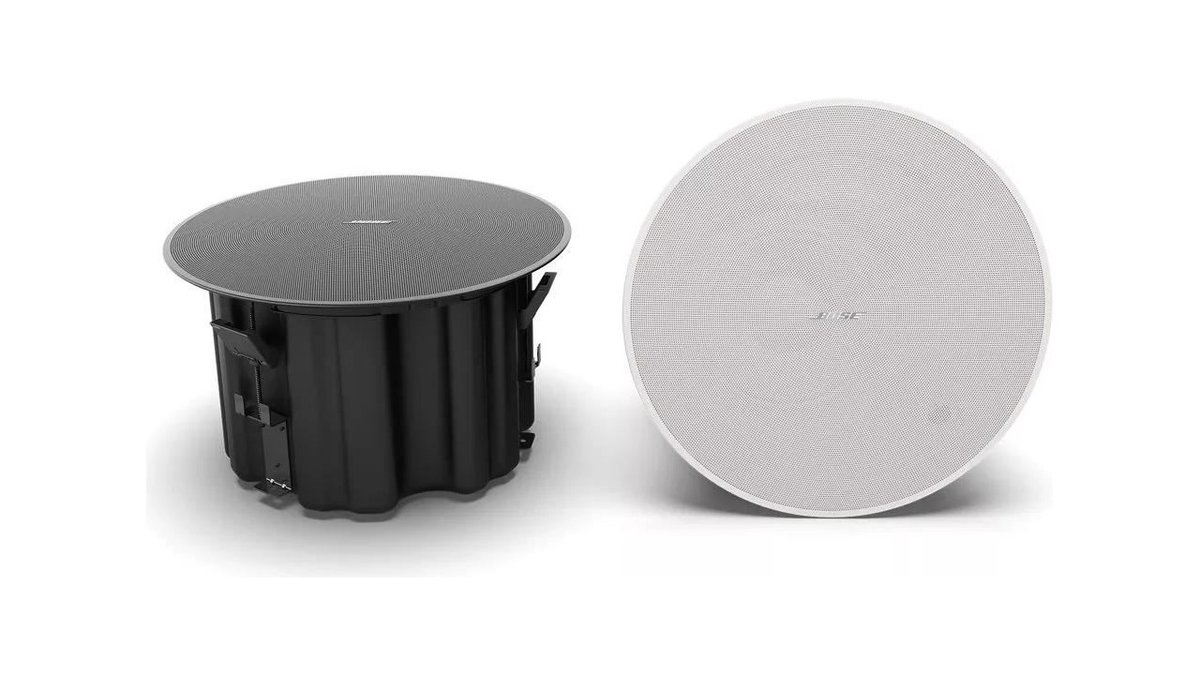

Bose Professional Bose DesignMax DM8C Loudspeaker

Deliver rich lows and clear, intelligible highs with coaxial two-way drivers - no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level.

Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos.

Nominal Impedance	8 ohms (transformer bypass)
Enclosure Material	Engineered-plastics front baffle with integrated steel-formed backcan
Colors	White grille (similar to RAL 9003), black grille (similar to RAL 9005), paintable
Net Weight	21.1 lb (9.6 kg), loudspeaker with grille / 2.2 lb (1.0 kg), tile bridge
Environmental	Indoor only
Safety Agency Ratings	UL-1480A, S5591/ UL Listed, in compliance with UL2043 for plenum-space installation, NFPA70 & NFPA90-A, CE compliant
Calculated Maximum SPL @ 1 m	113 dB
Ceiling Cutout	13.8 in (349 mm)
