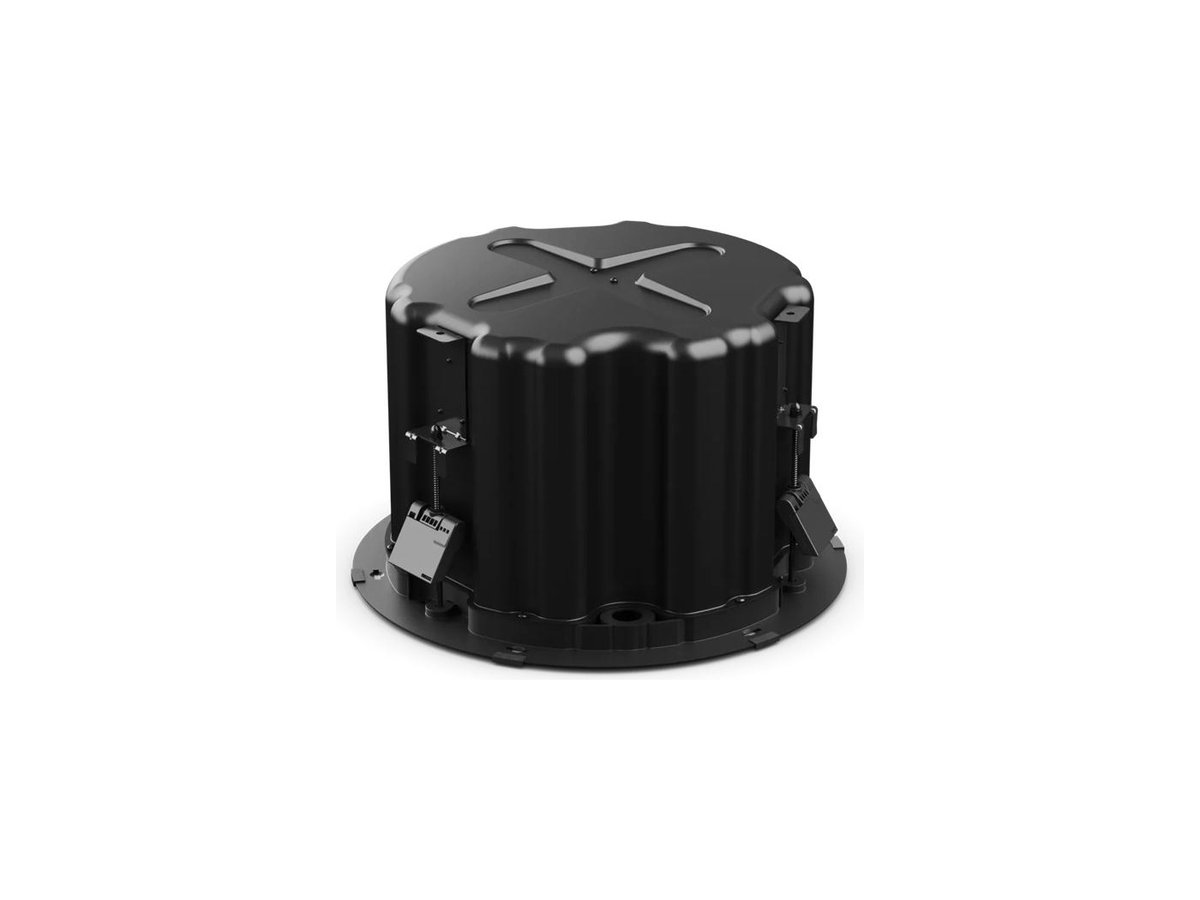

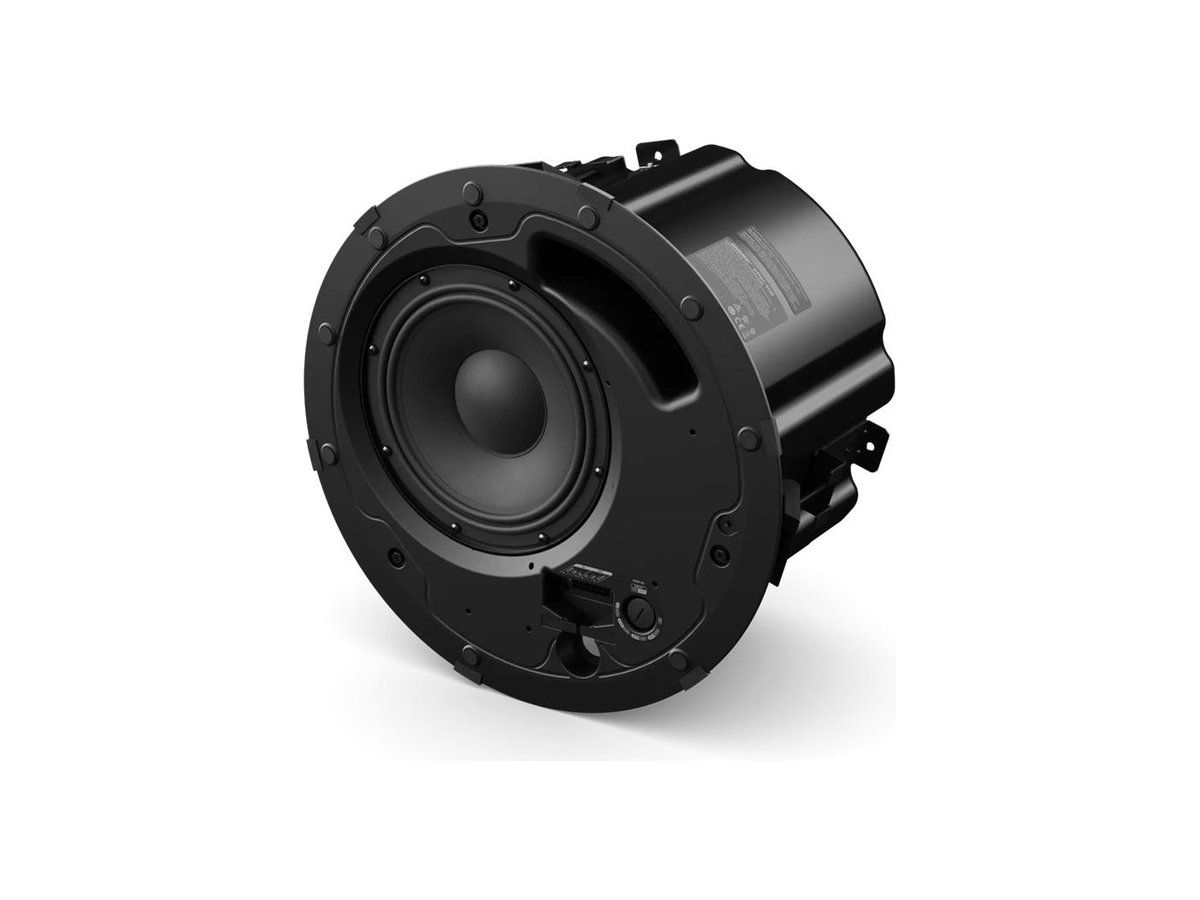

Bose Professional Bose DesignMax DM8C-SUB Subwoofer

Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos.

Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage.

Nominal Impedance	8 ohms (transformer bypass)
Enclosure Material	Engineered-plastics front baffle with integrated steel-formed backcan
Colors	White grille (similar to RAL 9003), black grille (similar to RAL 9005), paintable
Net Weight	21.9 lb (9.9 kg), loudspeaker with grille (single) / 2.2 lb (1.0 kg), tile bridge (single)
Environmental	Indoor only
Safety Agency Ratings	UL-1480A, S5591/ UL Listed, in compliance with UL2043 for plenum-space installation, NFPA70 & NFPA90-A, CE compliant
Calculated Maximum SPL @ 1 m	112 dB
Ceiling Cutout	13.8 in (349 mm)
