Bose DesignMax DM3P Loudspeakers (Pair)

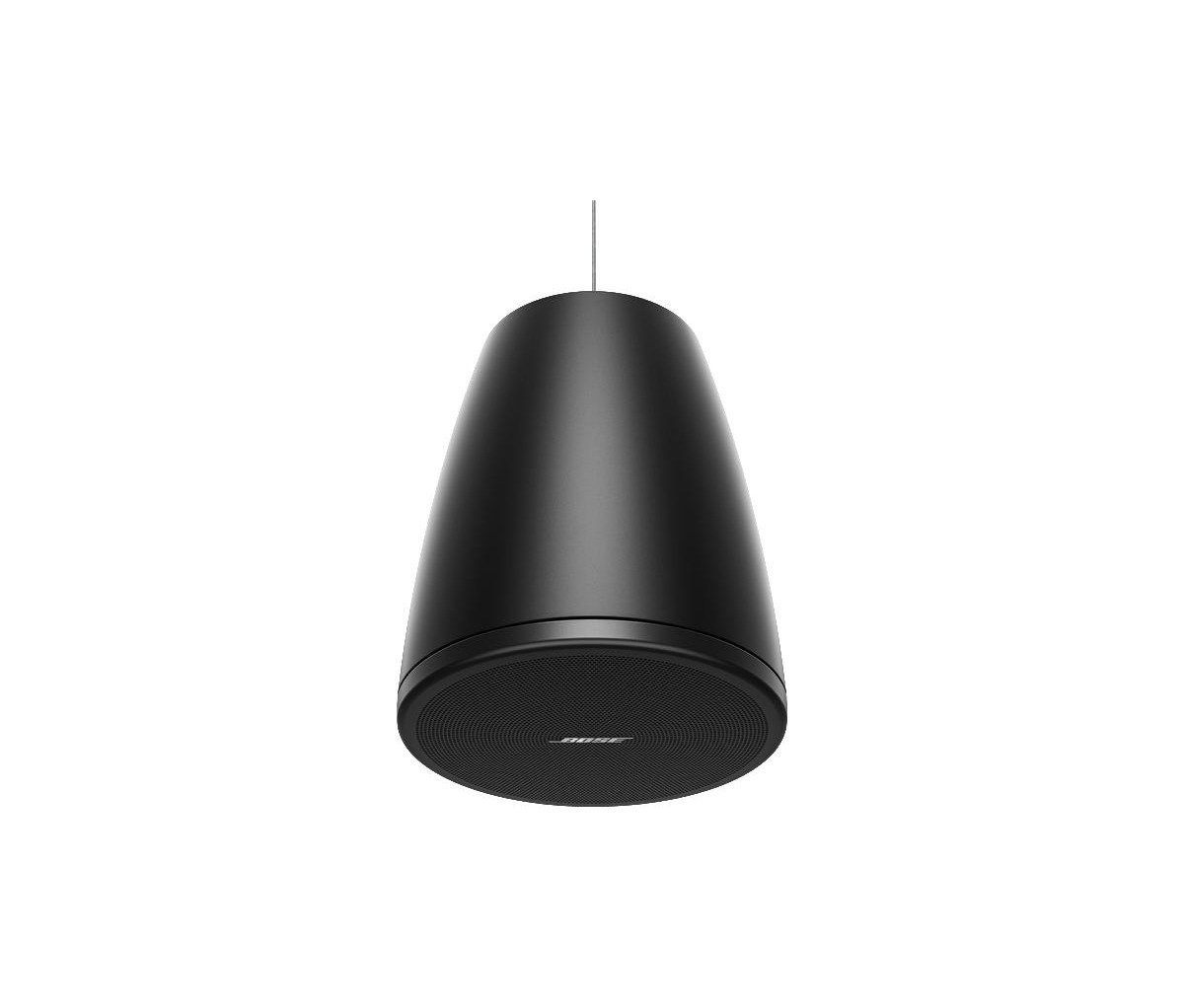

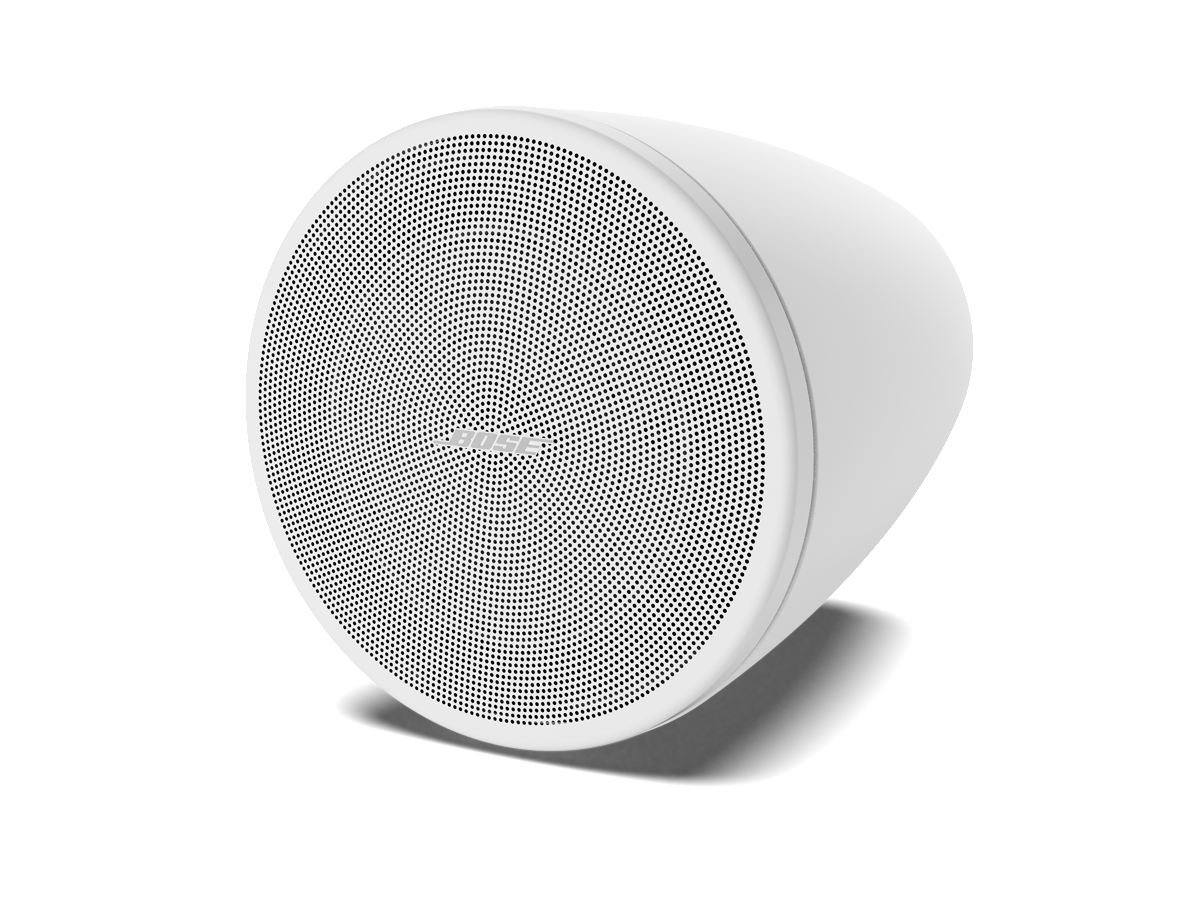

The DM3P is the pendant loudspeaker of the three DesignMax DM3 models, alongside the in-ceiling DM3C and the surface-mounted, outdoor-rated DM3SE.

Deliver clear highs and surprising low end for their size with a coaxial two-way design - no DSP or EQ required. For even better sound, combine with select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level.

  • Frequency response75 Hz – 20,000 Hz
  • Sensitivity84 dB
  • Power handling25 W
  • Net Weight5.5 lb, single
  • Enclosure MaterialEngineered plastics
Nominal Impedance8 ohms (transformer bypass)
Enclosure MaterialEngineered plastics

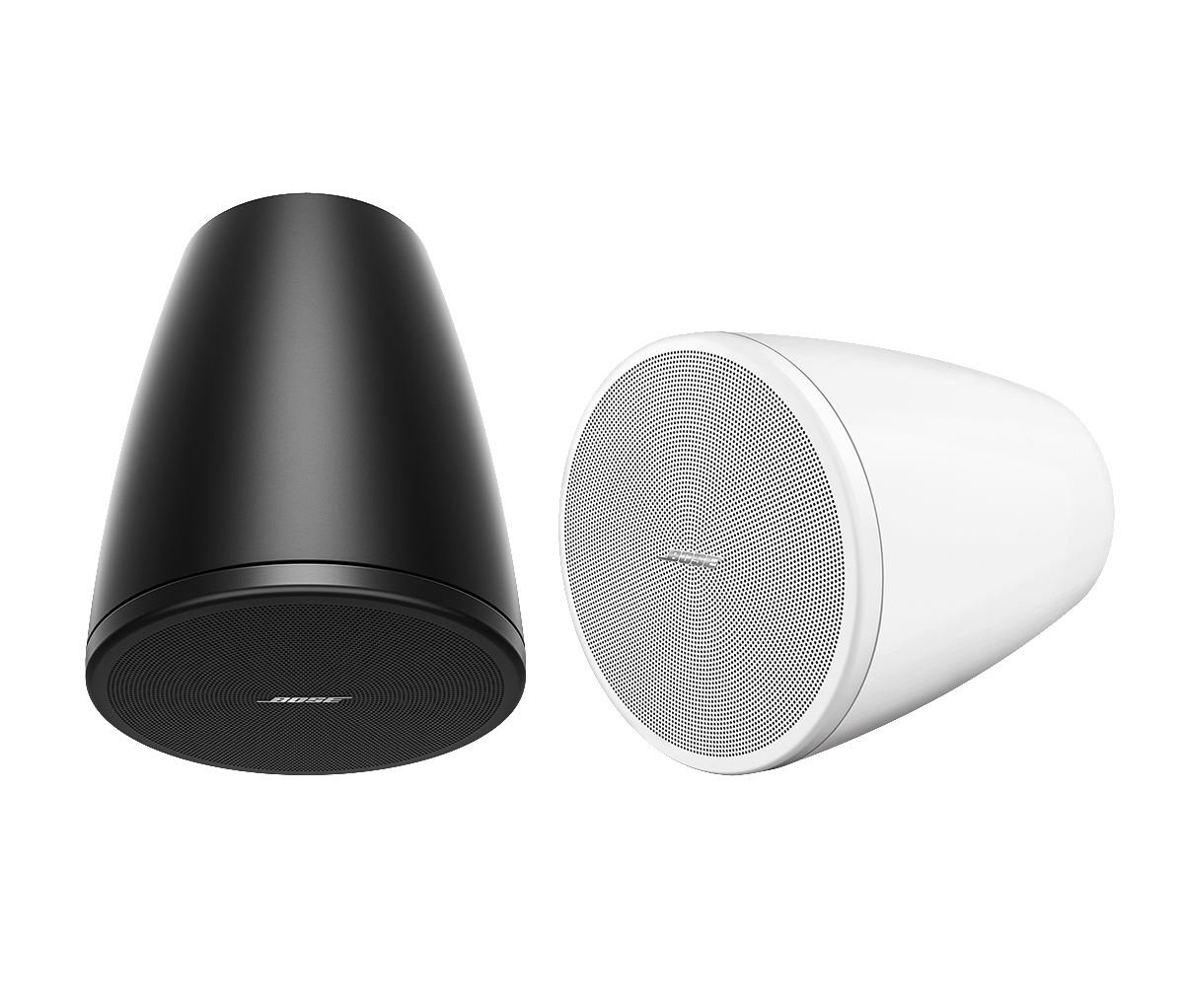

ColorsBlack (similar to RAL 9005), white (similar to RAL 9003), paintable
Net Weight5.5 lb (2.5 kg), single
EnvironmentalIndoor only
Safety Agency RatingsUL 1480A, UL 2239 for suspension cable, NFPA 70 & NFPA 90A, CE-compliant
Calculated Maximum SPL @ 1 m99 dB
Coverage, Horizontal130 deg conical
Frequency response75 Hz – 20,000 Hz
Power handling25 W
Sensitivity84 dB
