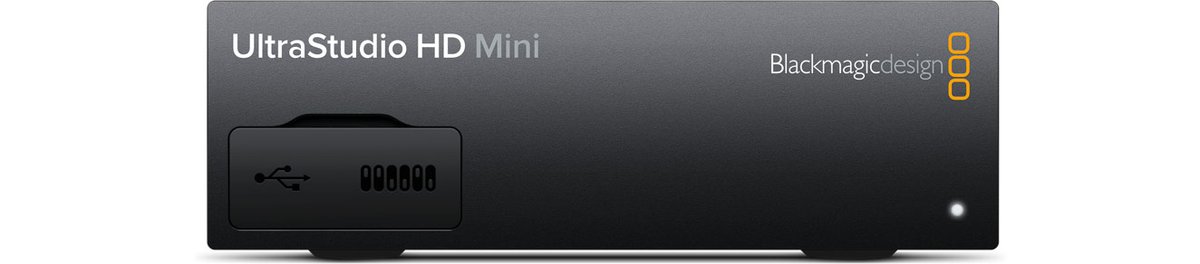

Blackmagic UltraStudio HD Mini Thunderbolt 3 interface allows you to record on your Thunderbolt laptop or desktop computer

UltraStudio HD Mini is a compact Thunderbolt 3 capture and playback interface for HD edit and streaming workflows. It records 10-bit video up to 1080p60 and plays back out with fill and key support on its SDI outputs, which suits it to graphics and keying passes as well as straight monitoring. The small enclosure is bus powered from the host computer, so no separate supply is needed at the desk.

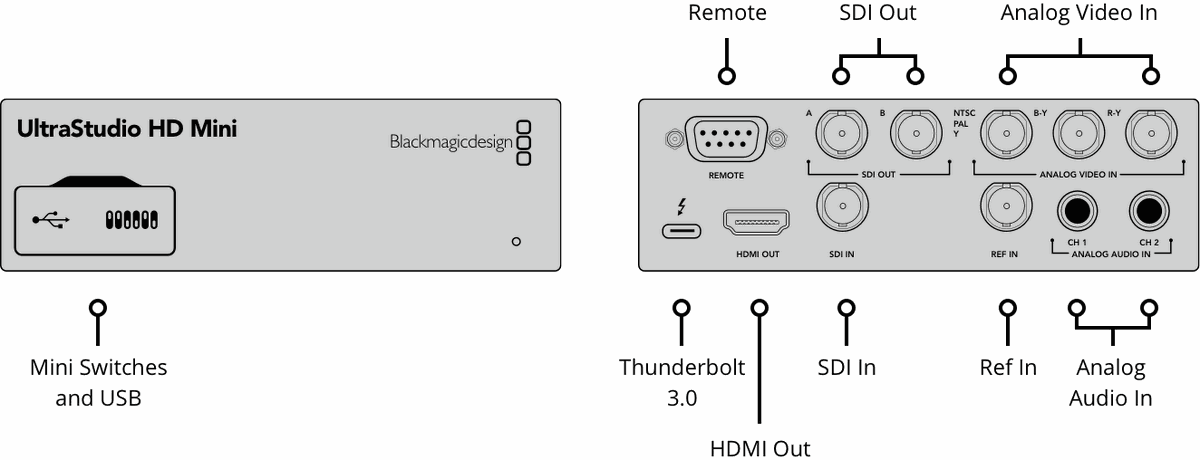

Connections include one 3G-SDI input, two 3G-SDI outputs, an HDMI 1.4b output, and analog component input, with a reference input that accepts Tri-Sync or Black Burst. It runs on Mac and Windows over Thunderbolt 3. Blackmagic part number BMD-BDLKULSDMINHD.

Computer InterfaceThunderbolt 3 (Mac, Windows), bus powered
SDI Input1 x 3G-SDI SD/HD switchable
SDI Output2 x 3G-SDI, supports fill and key
HDMI Output1 x HDMI 1.4b type A
Analog Video InputY, B-Y, R-Y / NTSC / PAL
ReferenceTri-Sync or Black Burst input
Recording10-bit up to 1080p60
Part NumberBMD-BDLKULSDMINHD
