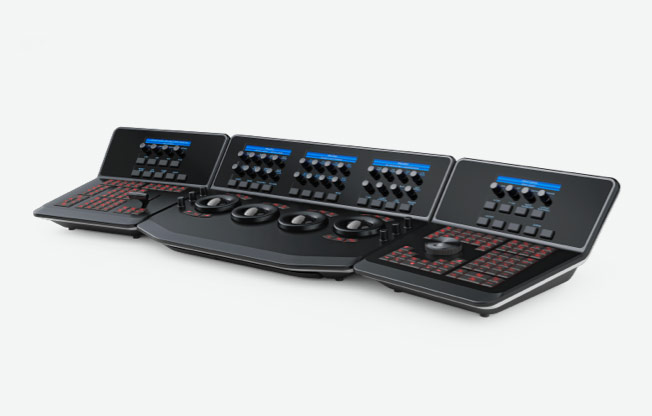

Blackmagic DaVinci Resolve Advanced Panel

The DaVinci Resolve Advanced Panel is the full colourist's desk: three trackballs, a bank of soft knobs and a dedicated key for essentially every primary and secondary control in DaVinci Resolve. It exists so a grade happens with both hands on hardware and eyes on the picture, never on a mouse pointer.

The panel is built in three sections around the centre trackball bucket, with menu displays above the knobs that change with the tool in use. It connects to the DaVinci Resolve workstation over Ethernet and is powered from mains, and it is the same control surface used in finishing suites that grade features and episodic work.

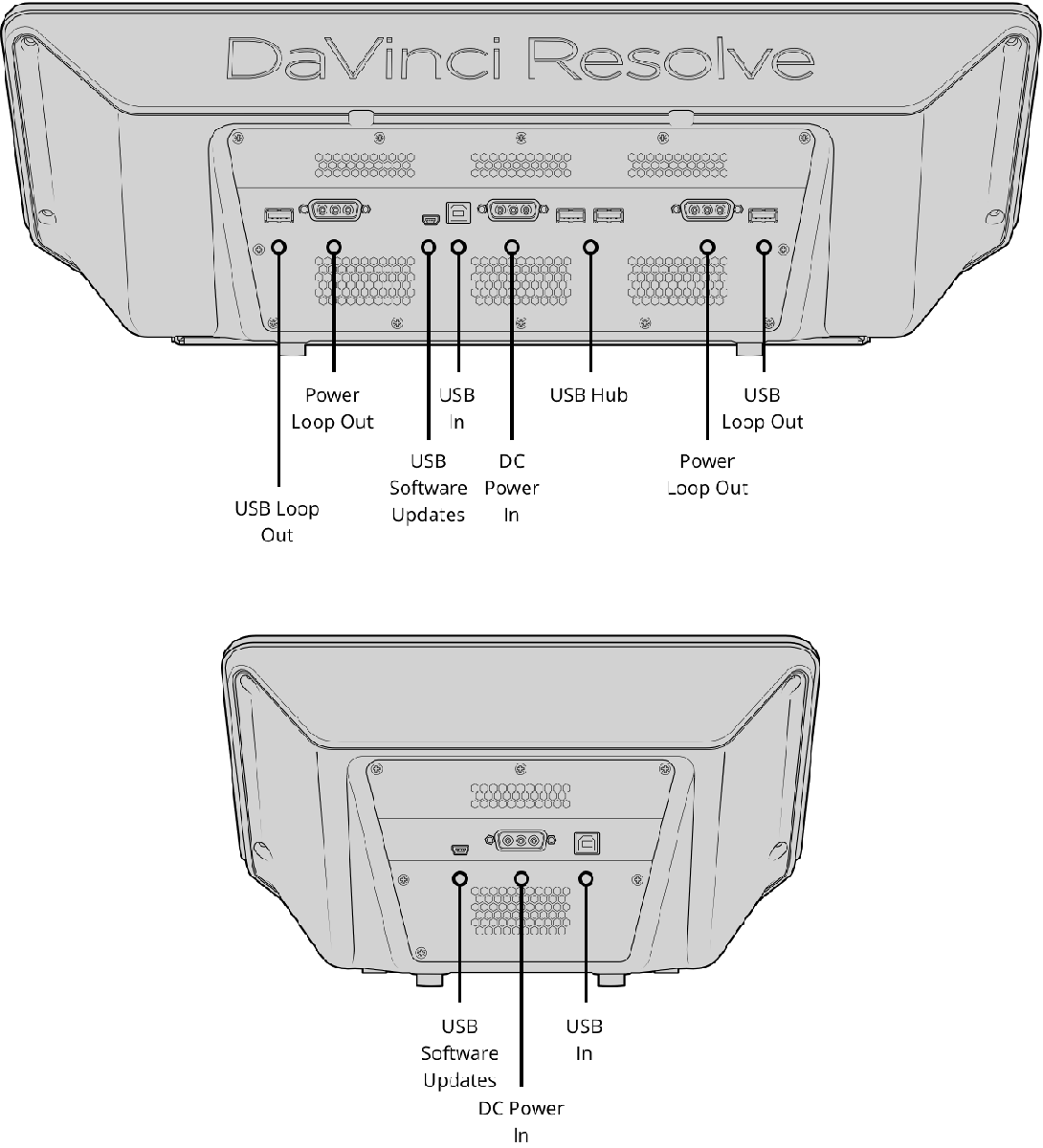

Computer Interface	USB Type-B connector on each panel.
USB Loop Out	2 x loop out USB Type-A connectors for side panels.
USB Hub	2 x USB Type-A connectors for a mouse and other USB devices.
Software Updates	USB Type Mini-B connectors on each panel for factory software updates.
12V Power Input	Centre 3-pin 3W3 D-Sub connector on Trackball Panel. / 3-pin 3W3 D-Sub connector on the Search Dial and T-bar Panels.
12V Power Output	Left and right 3-pin 3W3 D-Sub connectors on Trackball Panel.
Power Supply	External 100 - 240V AC 1.5A 50/60Hz with IEC C14 mains input.
Part Number	BMD-DV/RES/AADPNL
