Biamp Desono DX-S5-B Surface-Mount Loudspeaker (Black)
The Desono DX-S5-B is a compact, high-efficiency 2-way surface-mount loudspeaker in black, with coaxially mounted HF/LF drivers (a 5 in woofer and a 1 in exit compression driver) for uniform coverage, built for both indoor and weather-exposed commercial installs. It is rated IP54 and tested for solar radiation, salt mist, SO2 and chlorine, so it holds up under a patio roof or on a pool deck. Nominal beamwidth is 130 x 125 degrees, sensitivity 92 dB (2.83 V), and it reaches 109 dB continuous and 117 dB peak.

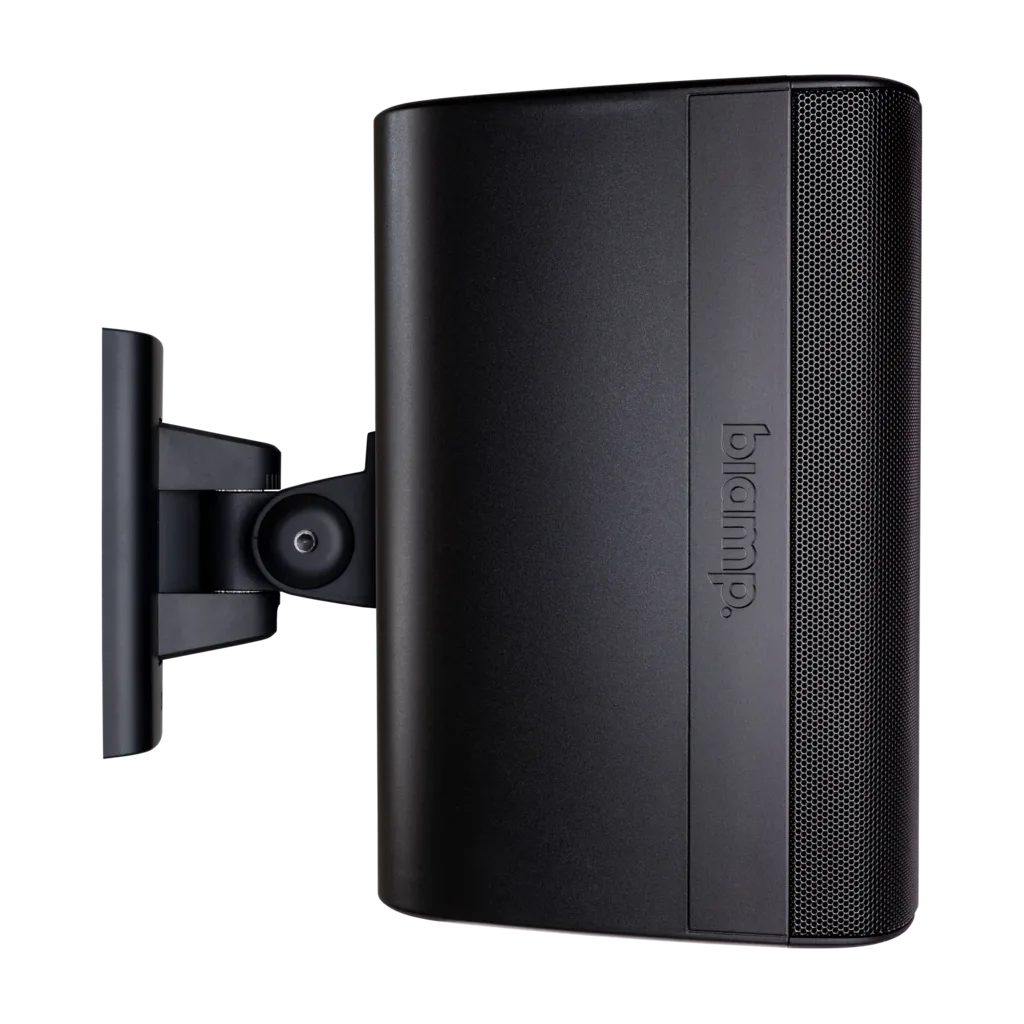

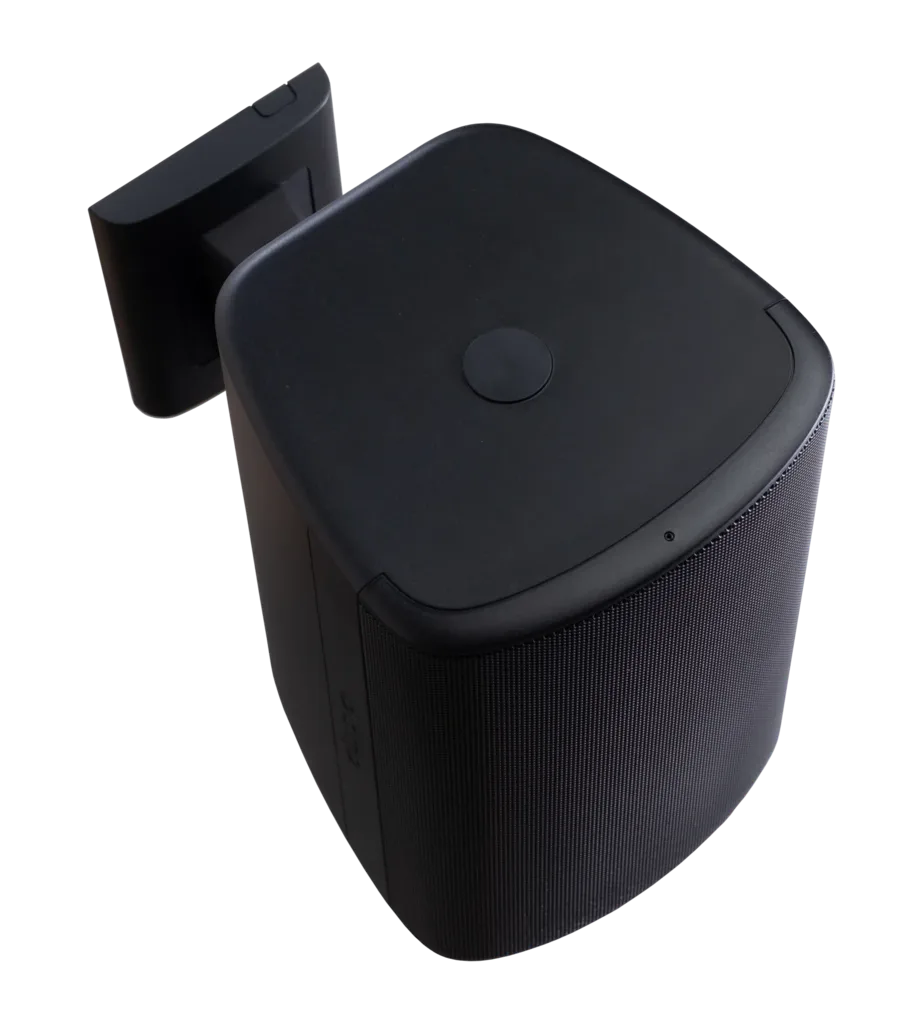

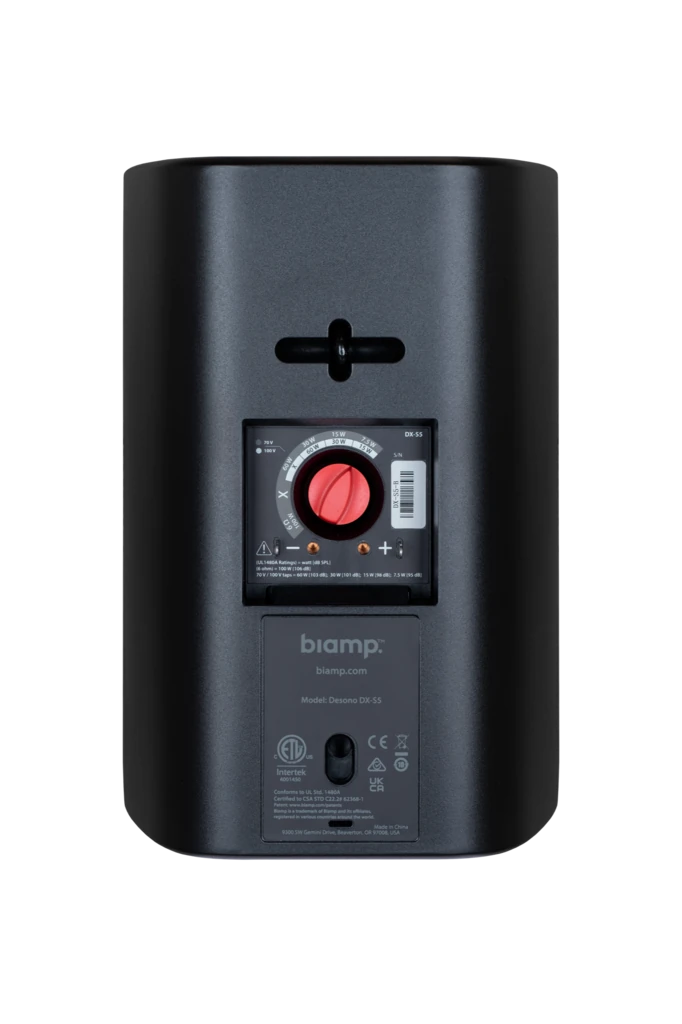

The included ClickMount pan-tilt bracket allows fast mounting and precise aiming without extra hardware, and voicing is matched to the Desono DX ceiling loudspeakers for a consistent tonal signature across a room that mixes ceiling and surface-mount coverage. It runs 6 ohm direct or on a 70V/100V autoformer with taps to 60 W, set by a selector switch. It is Zoom Certified, weighs 10.3 lbs (4.7 kg), and is backed by a 5-year warranty.
- Dimensions (H x W x D)11.02 x 7.09 x 11.51 in
- Operating Range(-10 dB): 75 Hz - 20 kHz
- Power100W Cont.; 400W Peak
- Weight10.3 lbs
- MountingClickMount pan-tilt bracket
| Driver configuration | Coaxial HF/LF, high efficiency |
|---|---|
| Mounting | ClickMount pan-tilt bracket |
| Rating | Indoor / weather-resistant |
| Voicing | Matched to Desono DX ceiling loudspeakers |
| Warranty | 5-year |
| Drivers | LF 1 x 5 in; HF 1 x 1 in exit compression driver |
| Power | 100W Cont.; 400W Peak |
| Impedance | 6 ohms |
| Autoformer Taps | 70V: 60W, 30W, 15W, 7.5W; 100V: 60W, 30W, 15W |
| Operating Range | (-10 dB): 75 Hz - 20 kHz |
| Environmental Rating | IP54 per IEC 60529 |
| Dimensions (H x W x D) | 11.02 x 7.09 x 11.51 in (280 x 180 x 292 mm) |
| Weight | 10.3 lbs (4.7 kg) |

- ClickMount pan-tilt bracket
