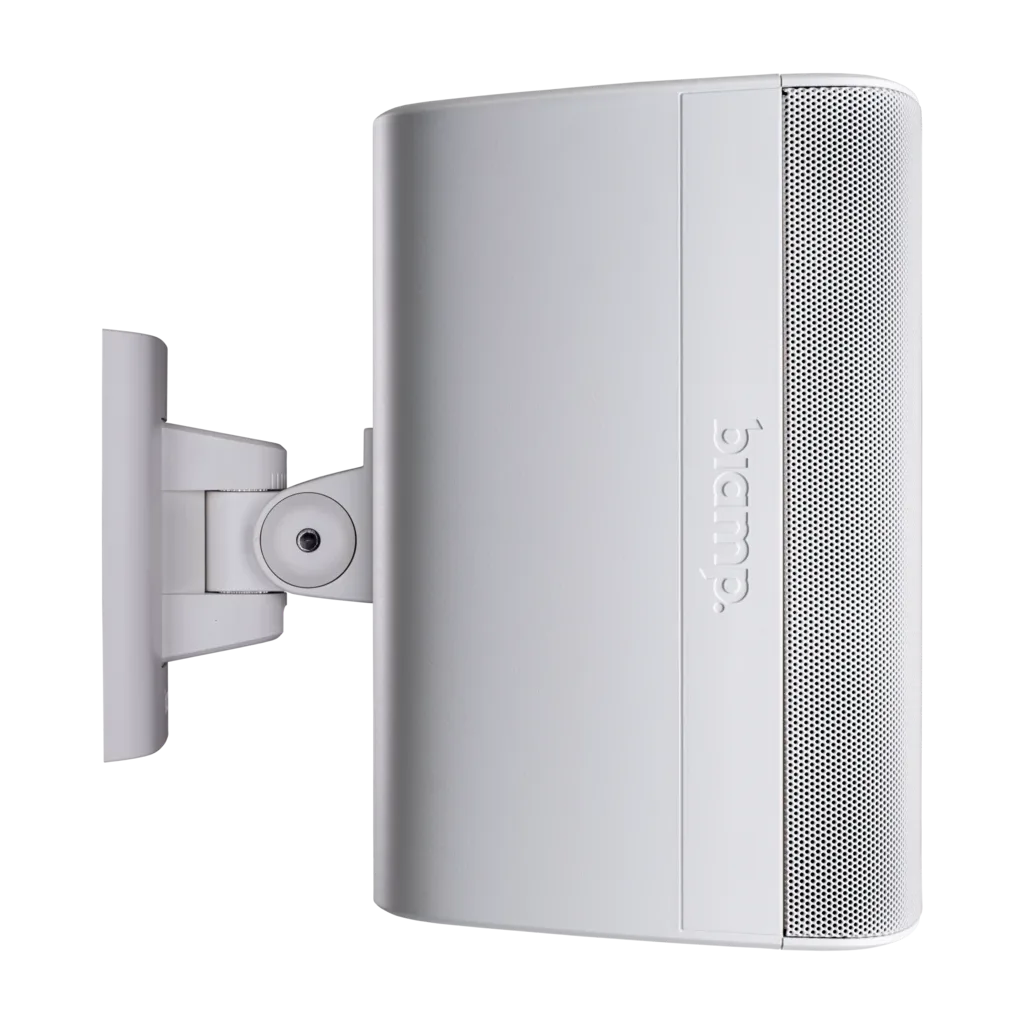

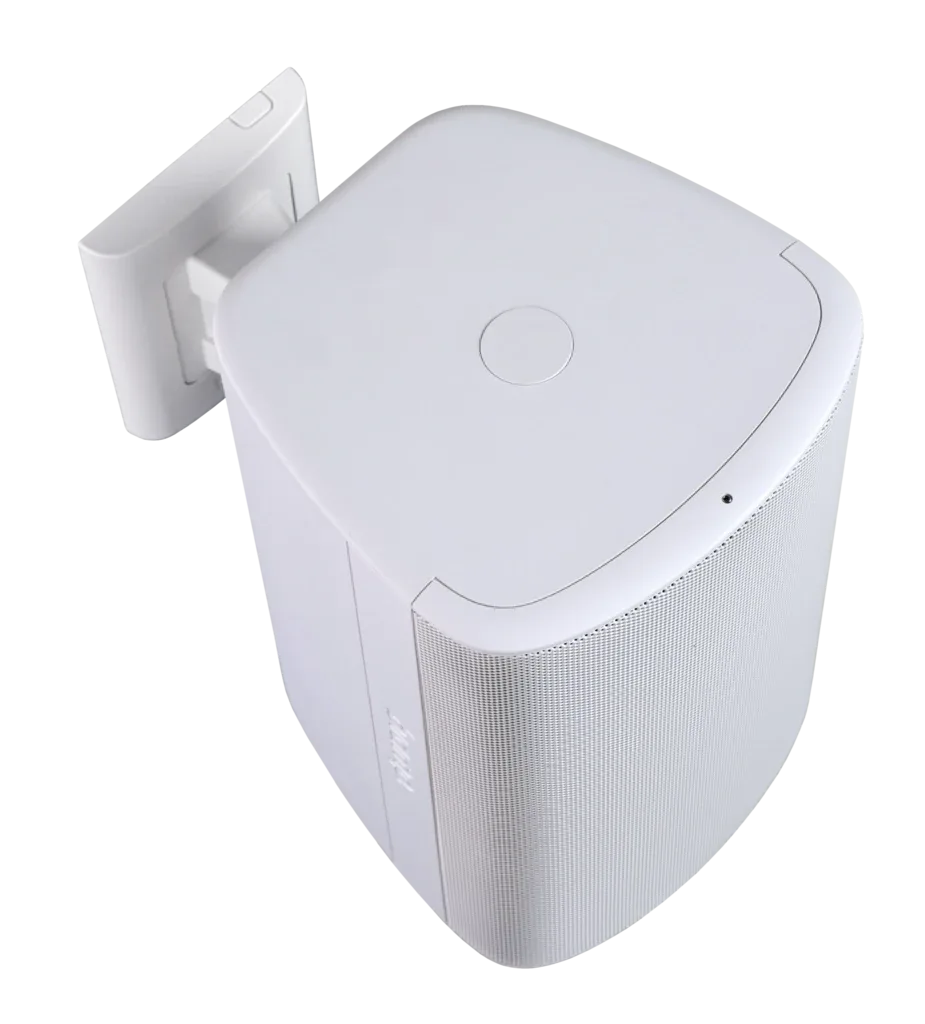

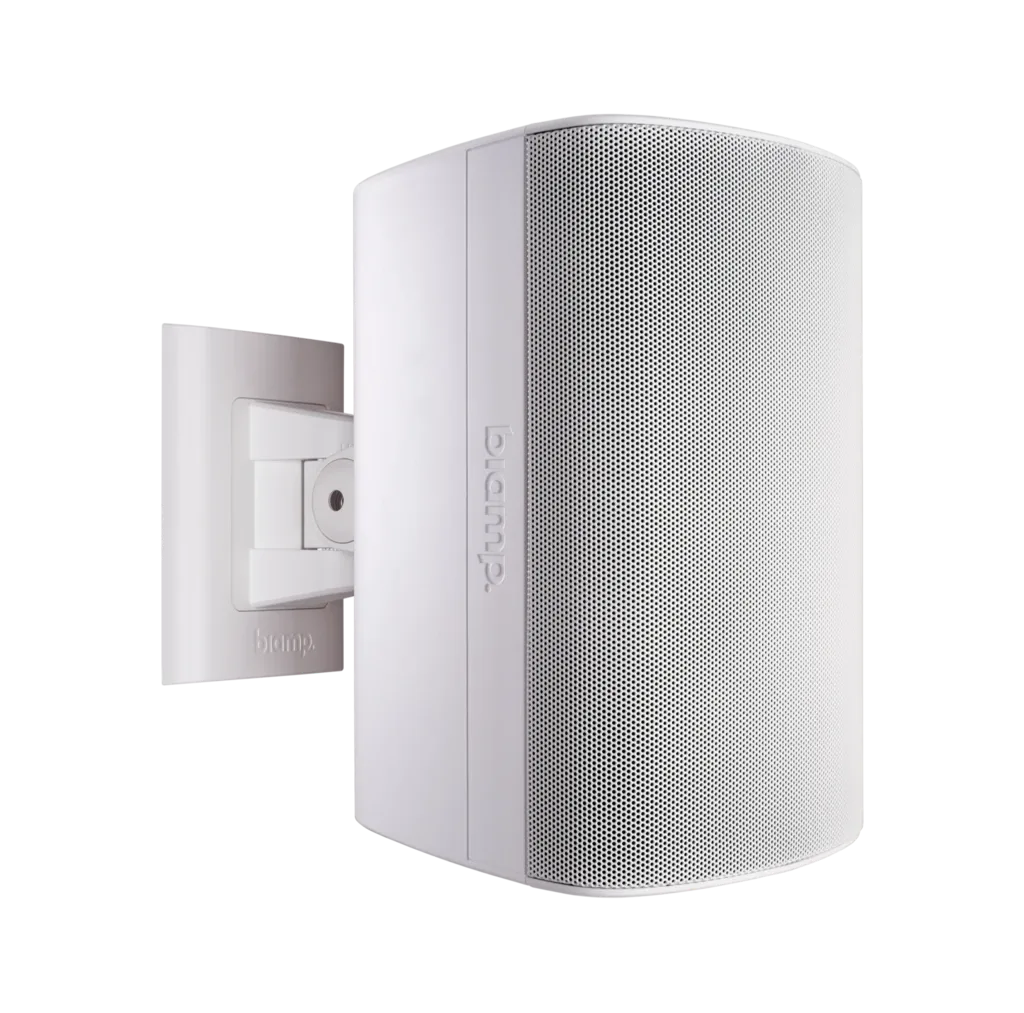

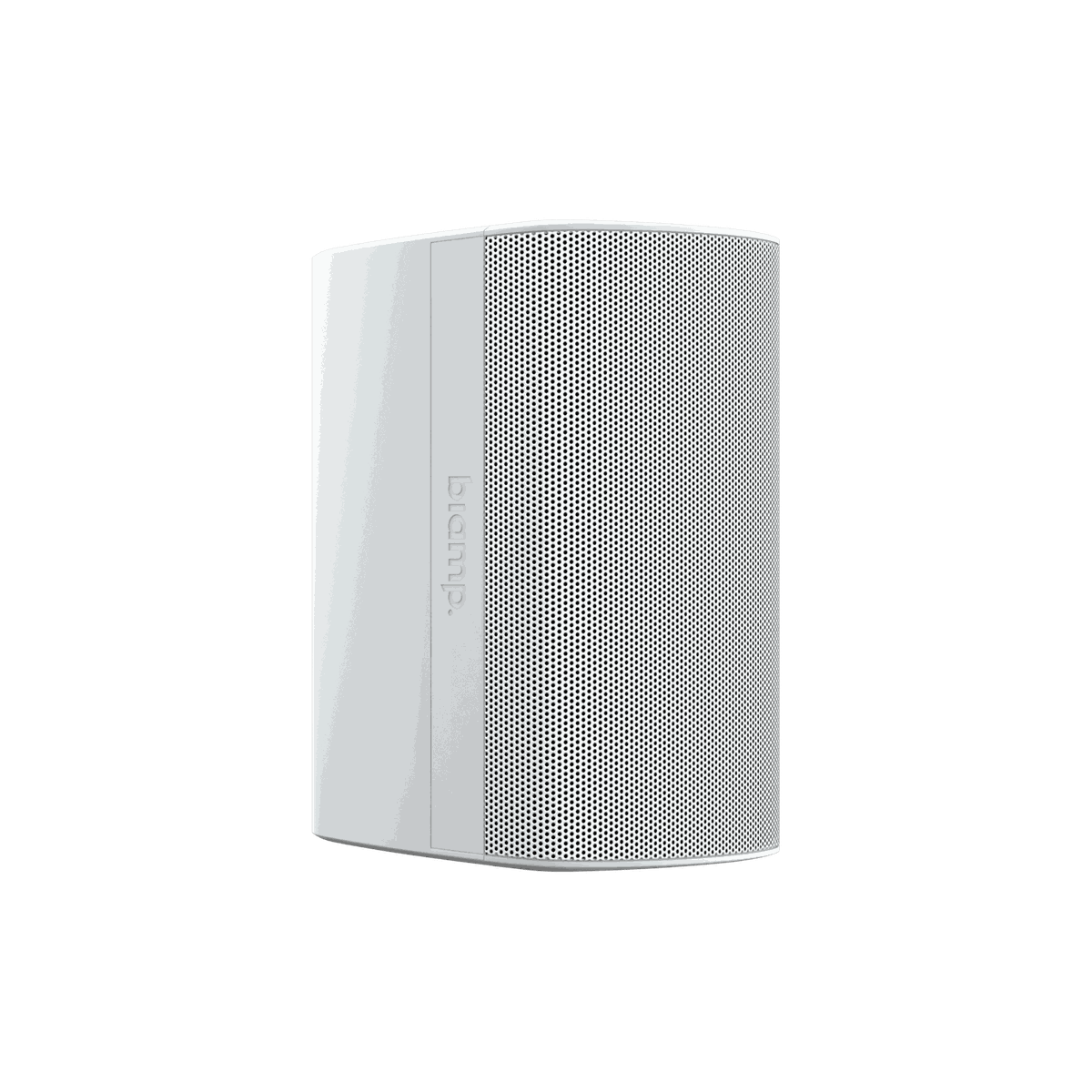

Biamp Desono DX-S5-W Surface-Mount Loudspeaker (White)

The Biamp Desono DX-S5-W Surface-Mount Loudspeaker (White) is a two-way, 5-inch surface mount loudspeaker built for business audio and installed sound systems. Drivers are LF 1 x 5 inch; HF 1 x 1 inch. The transducer complement is LF 1 x 5 inch (127 mm); HF 1 x 1 inch (25 mm) exit compression driver. Its operating range is 75 Hz - 20 kHz.

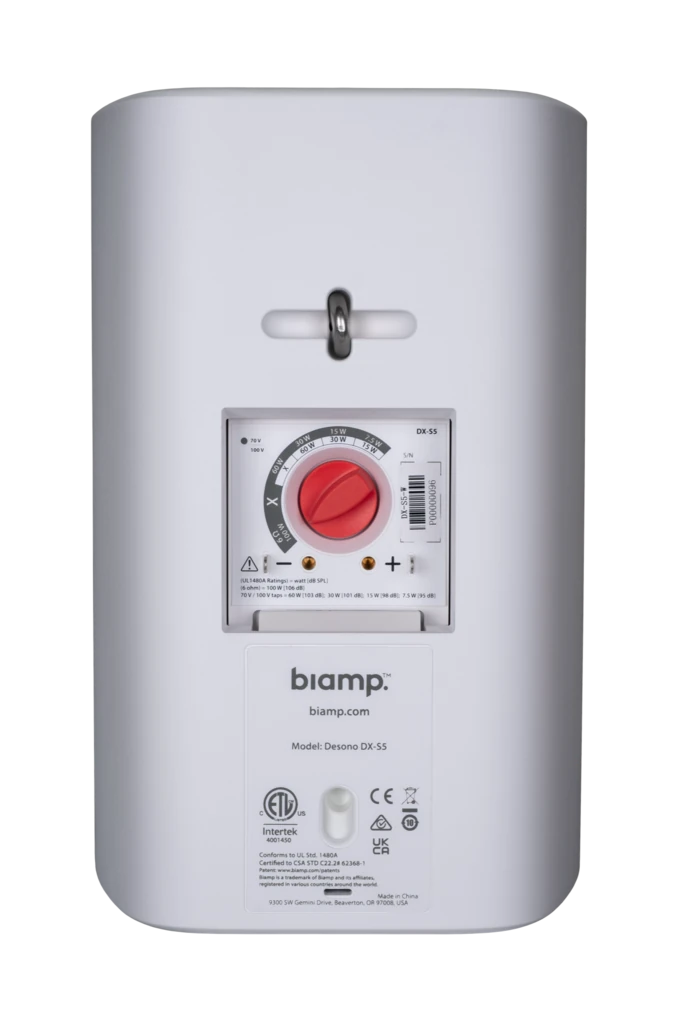

Power handling is rated at 100W Cont.; 400W Peak. Biamp recommends Passive: 100 W - 200 W into 8 ohms, (28 V - 40 V) of amplifier power. Nominal impedance is 6 ohms. Transformer tap settings are 70V: 60W, 30W, 15W, 7.5W; 100V: 60W, 30W, 15W.

Loudspeaker Type	Two-way, 5-inch surface mount loudspeaker
Transducers	LF 1 x 5 inch (127 mm); HF 1 x 1 inch (25 mm) exit compression driver
Drivers	LF 1 x 5 inch; HF 1 x 1 inch
Operating Range	75 Hz - 20 kHz
Sensitivity	92 dB (2.83 V); 91 dB (1 W at rated impedance)
Power	100W Cont.; 400W Peak
Dimensions (H x W x D)	11.02 inches (280 mm) x 7.09 inches (180 mm) x 11.51 inches (292 mm)
Impedance	6 ohms
