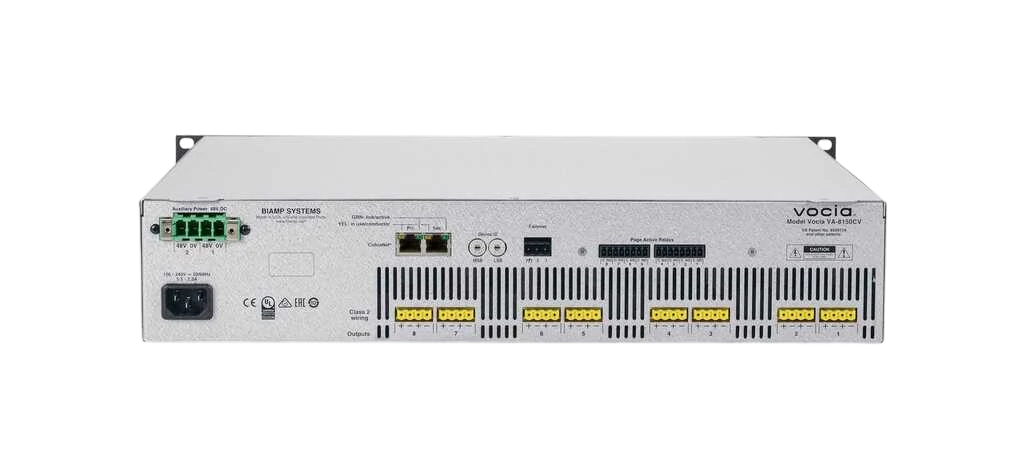

Biamp Vocia VA-8150CV Amplifier

The Biamp Vocia VA-8150CV Amplifier is a vocia amplifier built for emergency communication and life-safety systems. Frequency response is quoted at +/- 1dB. Inputs are CobraNet 20 bits,; 48kHz, 5-1/3ms (fixed). THD+N is THD + N (20Hz-20kHz, at rated power): < 0.3%.

Power handling is rated at AC: 100-240V AC 50Hz/60Hz; DC: Dual 48V. Rated output power is 8x150W. Control connection is Dual RJ-45 inputs for network redundancy.

Frequency Response	+/- 1dB
Power	AC: 100-240V AC 50Hz/60Hz; DC: Dual 48V
Input Type	CobraNet 20 bits,; 48kHz, 5-1/3ms (fixed)
THD+N	THD + N (20Hz-20kHz, at rated power): < 0.3%
Control	Dual RJ-45 inputs for network redundancy
Power Output	8x150W
Dimensions (H x W x D)	3.5 inches (88.9 mm) x 19.0 inches (483 mm) x 17.5 inches (444 mm)
Ambient Operating Temperature Range	8 deg C - 42 deg C
