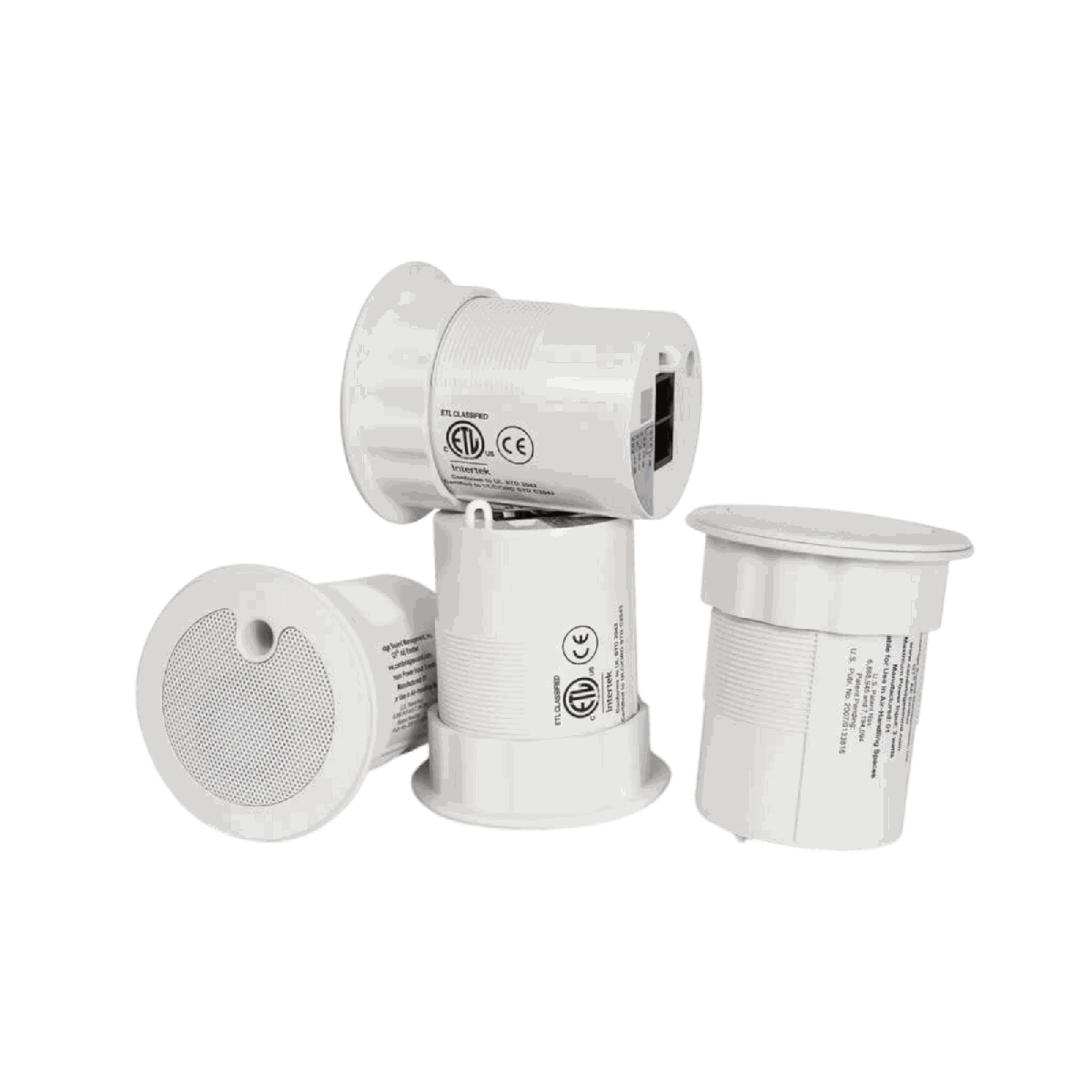

Biamp Cambridge E-P-W Sound Masking Emitter

The Biamp Cambridge E-P-W is an active with integrated amplifier built for sound masking and speech privacy systems. Drivers are Driver Diameter: 1.25 inches (32mm). Frequency response is quoted at Sound Masking: 100 Hz to 6.8 kHz; Music/Paging (-10dB)2: 105 Hz to 12 kHz. Coverage is Nominal: 170 deg conical / half space.

Power handling is rated at 2 W. Nominal impedance is Nominal: 40 k ohms. Power consumption is Max: 2 W. The enclosure is Front Vented. Order it in 3 versions: 16-4 Qt Active Emitter Pack (White), 25-4 Qt Active Emitter Pack (White), E-P-W-30-4.

Loudspeaker Type	Active with integrated amplifier
Drivers	Driver Diameter: 1.25 inches (32mm)
Frequency Response	Sound Masking: 100 Hz to 6.8 kHz; Music/Paging (-10dB)2: 105 Hz to 12 kHz
Power	Power Consumption Max: 2 W
Impedance	Nominal: 40 k ohms
Dispersion	Nominal: 170 deg conical / half space
SPL	Minimum Masking SPL (@ 1m): 30dBA; Maximum Masking SPL (@ 1m): 60dBA; Maximum Music/Paging SPL (@ 1m): 74dBA
Power Consumption	Max: 2 W
