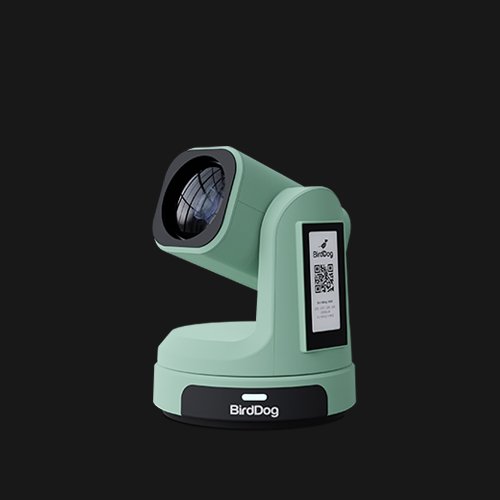

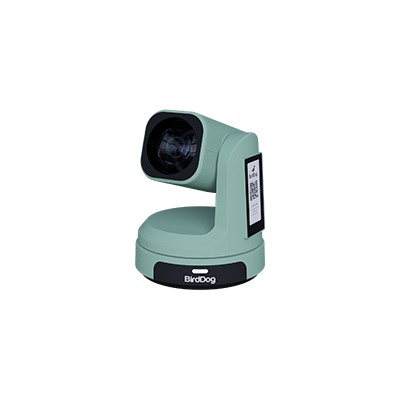

BirdDog MAX 12x NDI PTZ Camera

MAX is BirdDog's answer to the gap between a webcam and a production camera. Plug the USB-C into a laptop and it is a UVC 1.1 webcam that Zoom or Teams will find on its own; put it on the network instead and the same camera is an NDI|HX2 or HX3 source a switcher can take, with HDMI running in parallel for a local monitor or recorder. One PoE cable carries the video and the power.

The imaging is real PTZ hardware rather than webcam parts: a Sony 1/2.8 inch CMOS behind a 12x optical zoom that opens to 80.56 degrees horizontally at the wide end, which is what makes it usable in a small room where a longer lens would only see a shoulder. Pan and tilt run to 175 degrees and 90 degrees with 255 presets, control comes over VISCA, VISCA-IP, NDI, RS-232 or RS-485, and it draws 13W maximum. It ships in black, white, beige, blue and green so it can disappear into a boardroom instead of announcing itself.

Image SensorSony 1/2.8 in CMOS, Ultra HD
Lensf=3.42mm - 40.02mm, 12x optical zoom
Video FormatHDMI: 2160p30/29.97/25, 1080p60/59.94/50/30/29.97/25, 720p60/59.94/50; NDI: 2160p30/29.97/25, 1080p30/29.97/25
Angle of View80.56 deg (W) to 7.89 deg (T) horizontal, 49.61 deg to 4.46 deg vertical
ApertureF1.88 to F3.77
Minimum Illumination0.5 lux
Pan / Tilt+/-175 deg pan, -90 deg to +90 deg tilt, 255 presets
Video OutputsHDMI, USB-C UVC 1.1, Network
Encoder ProtocolsNDI|HX2, NDI|HX3, RTSP, RTMP, SRT
ControlVISCA (38400/9600/4800/2400), VISCA-IP, NDI, RS-232 in and out, RS-485, USB-C
PowerDC 12V or PoE IEEE802.3af, 13W maximum
Dimensions / Weight171.6 x 192.6 x 171.6 mm, 1.43 kg net
Meet MAX - BirdDog MAX NDI PTZ Camera
