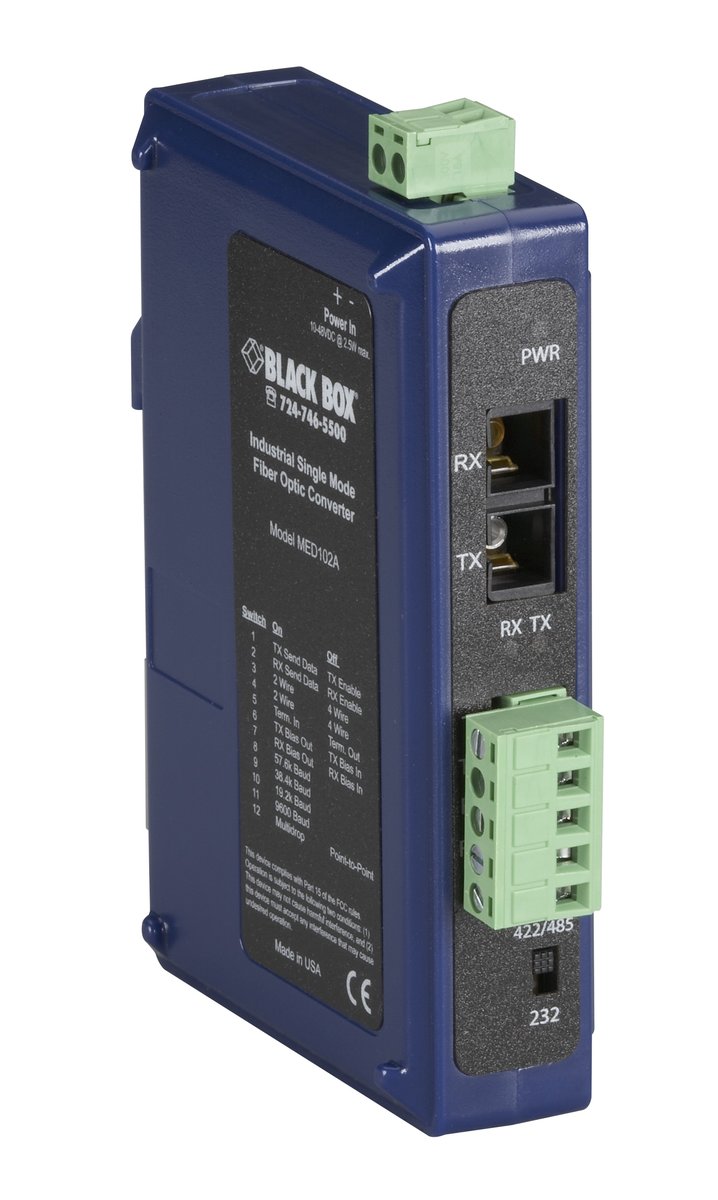

Black Box MED102A Async RS232/422/485 Extender Over Fiber - Terminal Block to Singlemode SC

Serial does not travel far on its own, and the MED102A is Black Box's answer: Terminal Block to Singlemode SC. Interface: RS-232/422/485. Connectors are (1) 2-Position Terminal Block.

Power: Input: 10 to 48 VDC, external. It measures 3.5-in. H x 1.2-in. W x 5.0-in. D (8.9 x 3 x 12.8-cm) and weighs 0.5-lb. (0.227-kg).

InterfaceRS-232/422/485
Data RateUp to 115.2 kbps
Connectors(1) 2-Position Terminal Block; (1) 5-Position Terminal Block; (1) Duplex Singlemode SC
EnclosureIP30 Plastic Case
PowerInput: 10 to 48 VDC, external; Consumption: 1.4 W
Dimensions3.5-in. H x 1.2-in. W x 5.0-in. D (8.9 x 3 x 12.8-cm)
Weight0.5-lb. (0.227-kg)
Country of OriginUnited States
