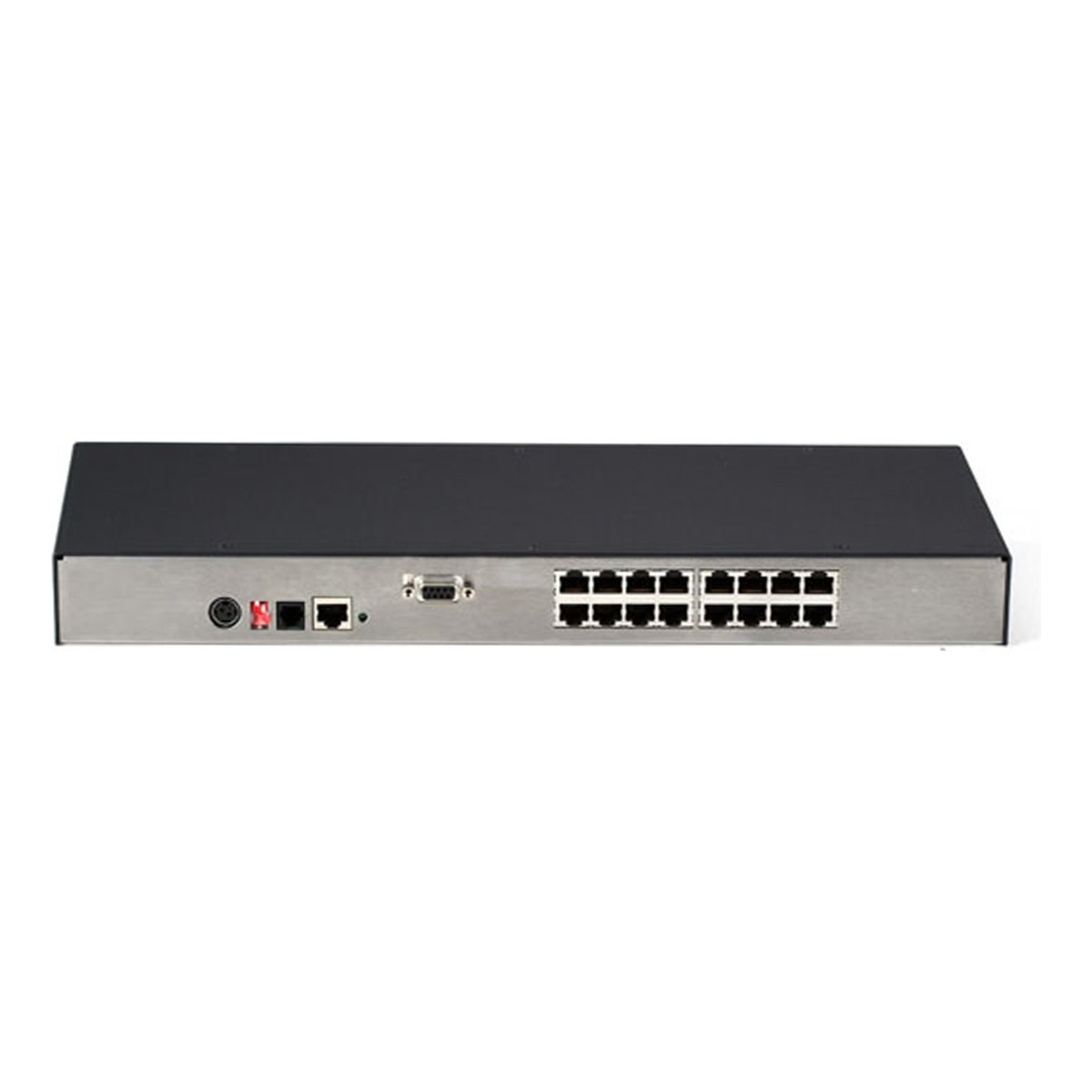

Black Box KVT417A-16CATX ServTray 17-inch LCD Console with 16-Port CATx KVM Switch

Keyboard, touchpad and a 17-inch LCD in a 1U pull-out drawer, with a sixteen-port CATx KVM switch built into the same rack unit. The display supports resolutions to 1280 x 1024. Servers connect over thin, flexible network-style CATx patch cables through USB, PS/2 or Sun Server Access Modules, so mixed estates work on one tray.

The CATx module also carries a KVM extension port, which lets a second console reach the switch from 984.5 feet (300 m) away over standard CATx and a ServSwitch CX Remote Unit. Control is from the on-screen display, hotkeys or the mouse, with password security and user profiles, and the switch responds to RS232 switching commands. Expand the system further with a CX Uno switch (KV0161A or KV0081A). Server Access Modules and user stations are not included.

Display	17-inch LCD, up to 1280 x 1024
Built-in switch	16-port CATx KVM
Form factor	1RU single-rail pull-out tray with keyboard and touchpad
Server connection	CATx to USB, PS/2 or Sun Server Access Modules (not included)
Remote console	Second console up to 984.5 ft (300 m) via CATx and a CX Remote Unit
Control	On-screen display, hotkeys, mouse, RS232 switching commands
Security	Password access with user profiles
Ships with	KVM tray with keyboard, touchpad and LCD, KVM module, power supply, universal rear rail kit, manual
