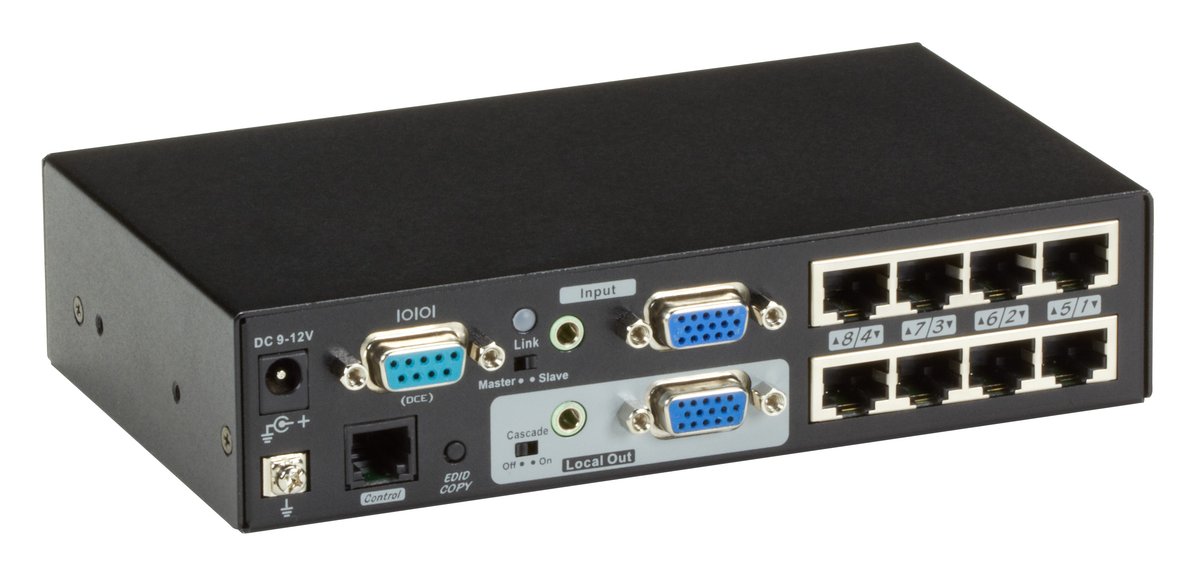

Black Box AVX-VGA-TP-TX-8 VX Transmitter - 8-Port

The AVX-VGA-TP-TX-8 is Black Box's VX Transmitter, covering 8-Port. Distance (Maximum): When used with AVX-VGA-TP-SRX receiver: 492 ft. (150 m). Connectors are Video Input: (1) HD15 (Female) (VGA).

Power: External, in-line adapter: Input: 100-240 VAC, 50-60 Hz, 0.6 amps (maximum). It measures 1.6-in. H x 6.75-in. W x 4-in. D (4.1 x 17.1 x 10.2-cm) and weighs 1.6-lb. (0.73-kg). Front-panel indication: (2) LEDs: (1) Power/Source Input, (1) Link. In the box: Transmitter, Power Supply with 6-ft. (1.8-m) Cord, 3.5-mm Stereo Audio Cable, RJ-11 Control Cable, RJ-11-to-DB9 Serial converter, Ground Cable.

Distance (Maximum)When used with AVX-VGA-TP-SRX receiver: 492 ft. (150 m); When used with AVX-VGA-TP-LRX or AVX-VGA-TP-CSRX receiver: 1000 ft. (300 m)
ConnectorsVideo Input: (1) HD15 (Female) (VGA); Audio Input: (1) 3.5-mm Jack (Stereo); Serial Input: (1) DB9 (Female) (RS-232 TX/GND signals); Local Video Output:/cascade: (1) HD15 (Female) (VGA); Local Audio Input: (1) 3.5-mm Jack (Stereo); System Configuration: (1) RJ-
Indicators(2) LEDs: (1) Power/Source Input, (1) Link
PowerExternal, in-line adapter: Input: 100-240 VAC, 50-60 Hz, 0.6 amps (maximum); Output: 12 VDC, 1.5 amps (maximum); Consumption: 18 watts
Dimensions1.6-in. H x 6.75-in. W x 4-in. D (4.1 x 17.1 x 10.2-cm)
Weight1.6-lb. (0.73-kg)
MTBF90,000 hours
Country of OriginTaiwan
