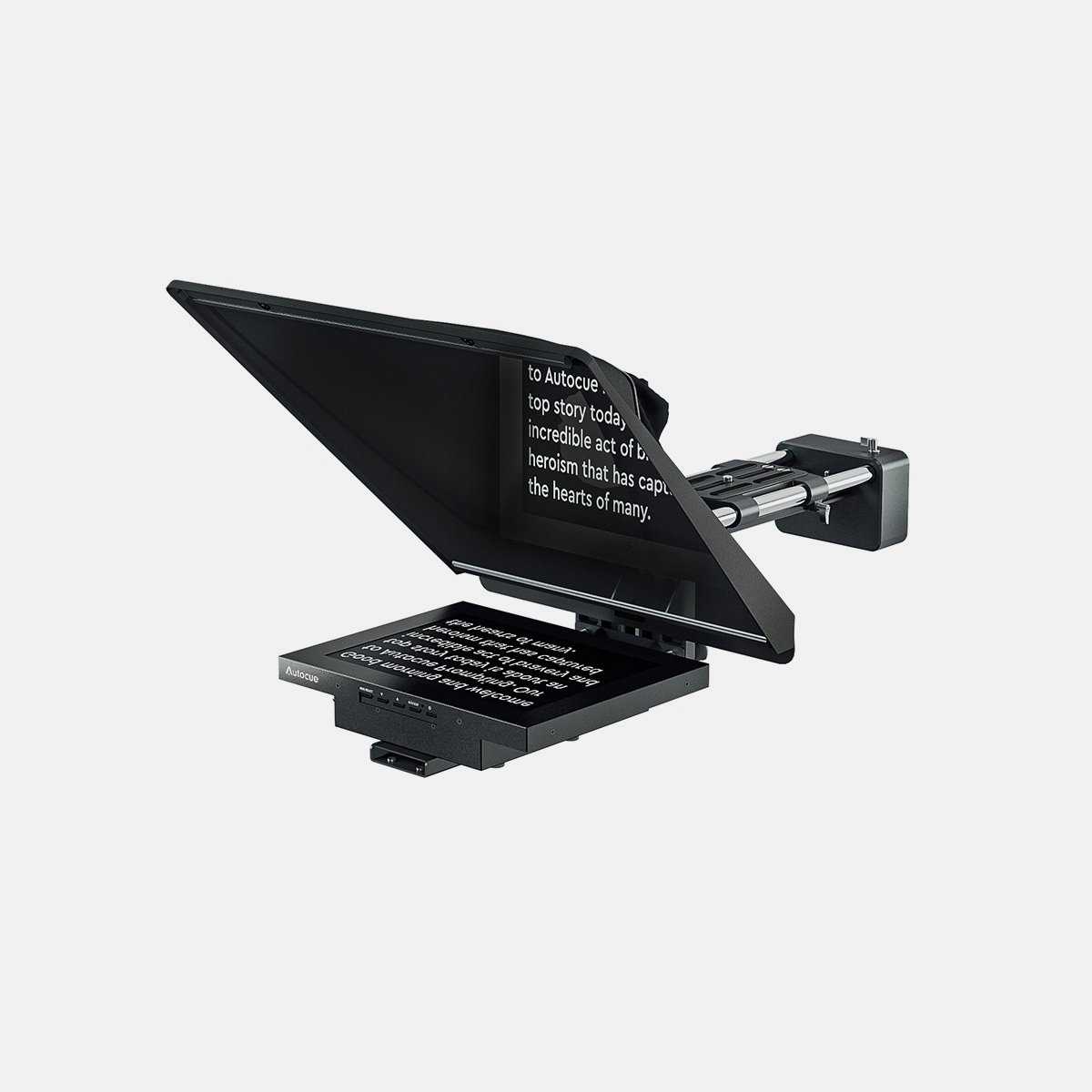

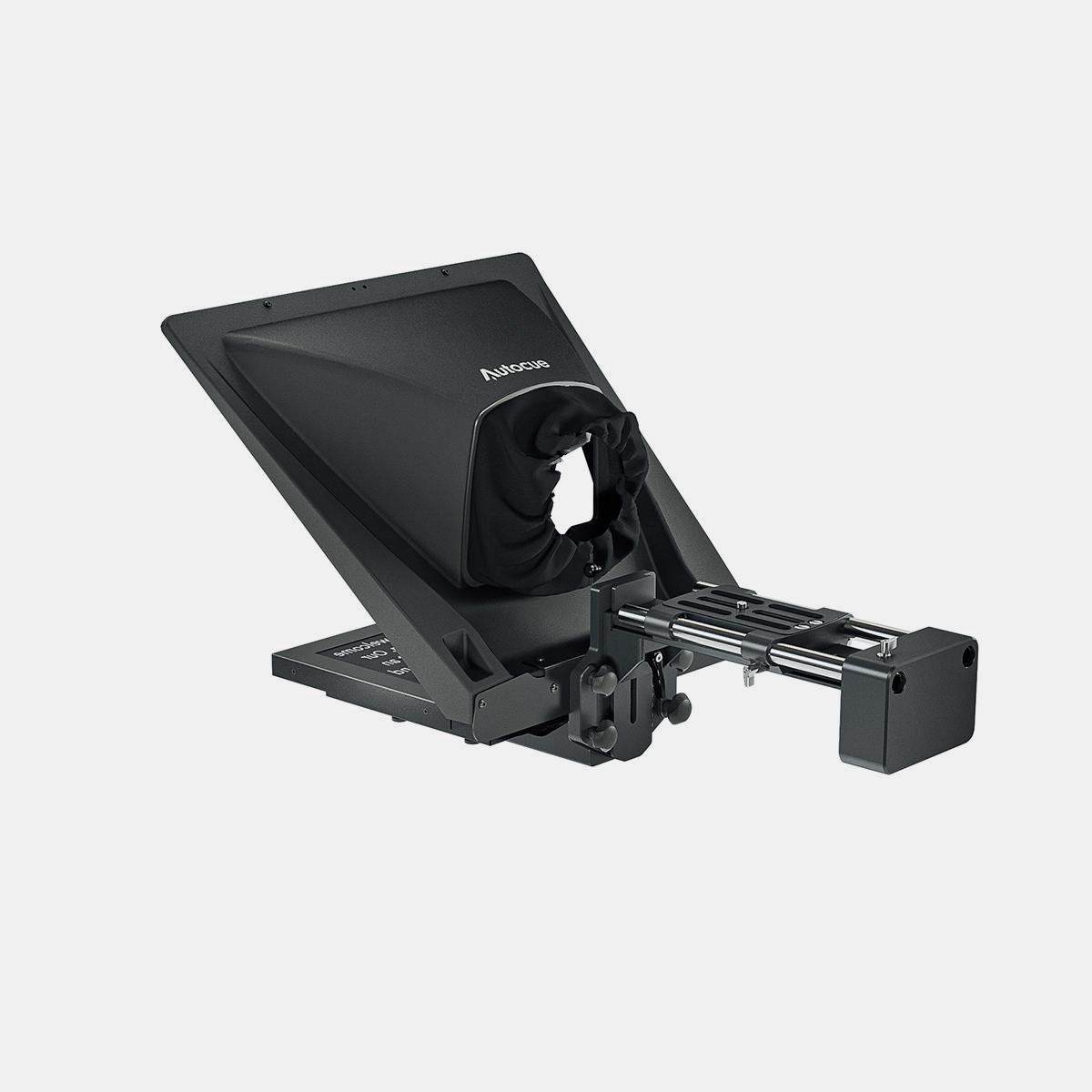

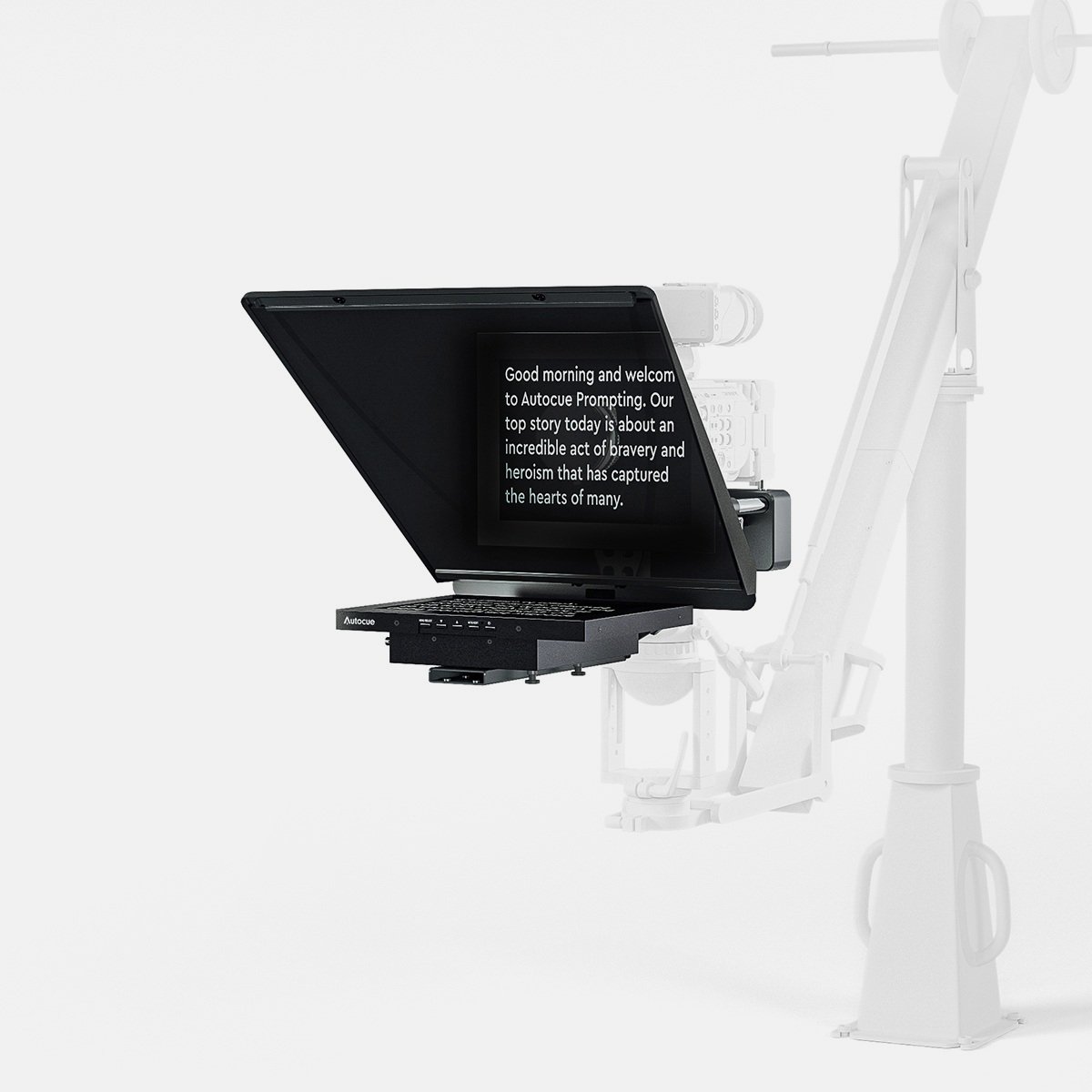

Autocue P7008-0904 12-inch Pioneer Jib Teleprompter
The 12-inch Pioneer Jib is the package to reach for when the camera support cannot take the mass of a studio prompter. It pairs the 1500-nit 12-inch Pioneer monitor in its aluminium housing with the medium composite hood, coming in at 8.1 kg excluding counterweight, which keeps a jib arm within its rating and keeps the head stable through the faster moves a jib is bought for. Reading range works out at roughly 4.5m / 15ft.
The hood clears everything but the widest lenses and carries Autocue 70:30 beamsplitter glass, invisible to the camera and legible to the presenter. The adjustable mounting kit tunes hood height so the lens sits centred in the glass, and a 5 kg counterweight on 19mm rods centres the load over the support. Inputs are 3G/HD/SD-SDI with looped output, CVBS with looped output, HDMI and VGA. Supplied with the monitor, PSU, mounting rail and bracket set, camera carriage, monitor spine, medium hood, beamsplitter glass, 19mm rod set, 5 kg counterweight, a 10m HDMI cable and an IEC power cable.
| Monitor Size | 12" |
|---|---|
| Brightness | 1500Nits |
| Resolution | 1024x768 |
| Hood | Medium composite hood with collapsible fabric lens seal |
| Inputs | 3G/HD/SD-SDI, CVBS, HDMI, VGA |
| Counterweight | 5 kg / 11.02 lb |
| Monitor Mounting | VESA100 with additional 3-8"-16 camera support fixings |
| System Dimensions | 50.3 cm x 42 cm x 72.9 cm / 19.8 in x 16.54 in x 28.7 in |
| System Weight | 8.1 kg (excluding counterweight) / 17.86 lb (excluding counterweight) |
