AUDAC PMQ600 WaveDynamics Quad-Channel 70/100V Amplifier

The PMQ600 is AUDAC's waveDynamics quad-channel 70/100V amplifier. The output stage is Class-D into a minimum load of 8 ohms over a 50 Hz - 20 kHz response. Signal to noise is < 95 dB and THD+N < 0.05% (1/2 Rated Power) at 1 kHz.

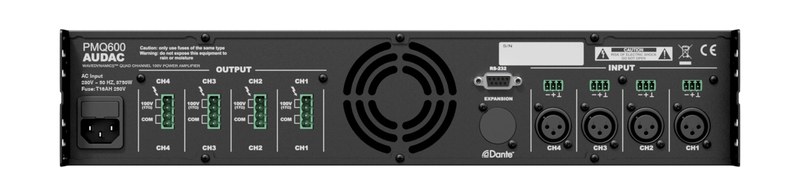

Inputs land on XLR & 3-pin Euro Terminal Block (3.81 mm) and outputs on 4-pin Euro Terminal Block (Pitch - 5.08 mm). Power comes from Switching mode. The housing is Steel. It measures 18.98 x 3.46 x 16.54 in (W x H x D) and weighs 18.96 lb.

  • Frequency Response (+/- 3 dB)50 Hz - 20 kHz
  • Continuous power (AES) @ 8 ohms4 x 600 W
  • Weight8.6 kg
  • Signal / Noise< 95 dB
  • Crosstalk (@ 1 kHz)> 70 dB
Continuous Power (AES) @ 8 Ohms4 x 600 W
Continuous Power (AES) @ 70 V4 x 600 W
Continuous Power (AES) @ 100 V4 x 600 W
Frequency Response (+/- 3 dB)50 Hz - 20 kHz
Signal / Noise< 95 dB
Crosstalk (@ 1 kHz)> 70 dB
Min. Load Impedance8 ohms
TechnologyClass-D
THD< 0.05% (1/2 Rated Power)
Weight8.6 kg
