AUDAC PMQ240 WaveDynamics quad-channel 70/100V amplifier

The PMQ240 is AUDAC's waveDynamics quad-channel 70/100V amplifier. The output stage is Class-D into a minimum load of 8 ohms over a 50 Hz - 20 kHz response. Signal to noise is > 95 dB and THD+N < 0.05% (1/2 Rated Power) at 1 kHz.

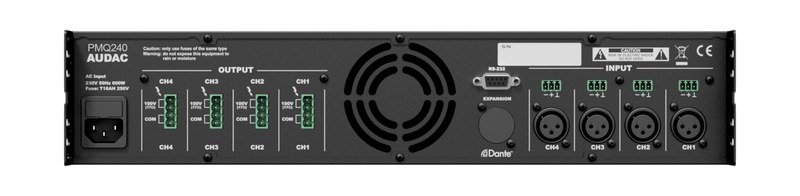

Inputs land on XLR & 3-pin Euro Terminal Block (3.81 mm) and outputs on 4-pin Euro Terminal Block (Pitch - 5.08 mm). Power comes from Switching mode. The housing is Steel. It measures 18.98 x 3.46 x 16.54 in (W x H x D) and weighs 17.75 lb.

Continuous power (AES) @ 8 ohms	4 x 240 W
Continuous power (AES) @ 70 V	4 x 240 W
Continuous power (AES) @ 100 V	4 x 240 W
Frequency Response (+/- 3 dB)	50 Hz - 20 kHz
Signal / Noise	> 95 dB
THD+N (@ 1 kHz)	< 0.05% (1/2 Rated Power)
Crosstalk (@ 1 kHz)	> 70 dB
Min. load impedance	8 ohms
