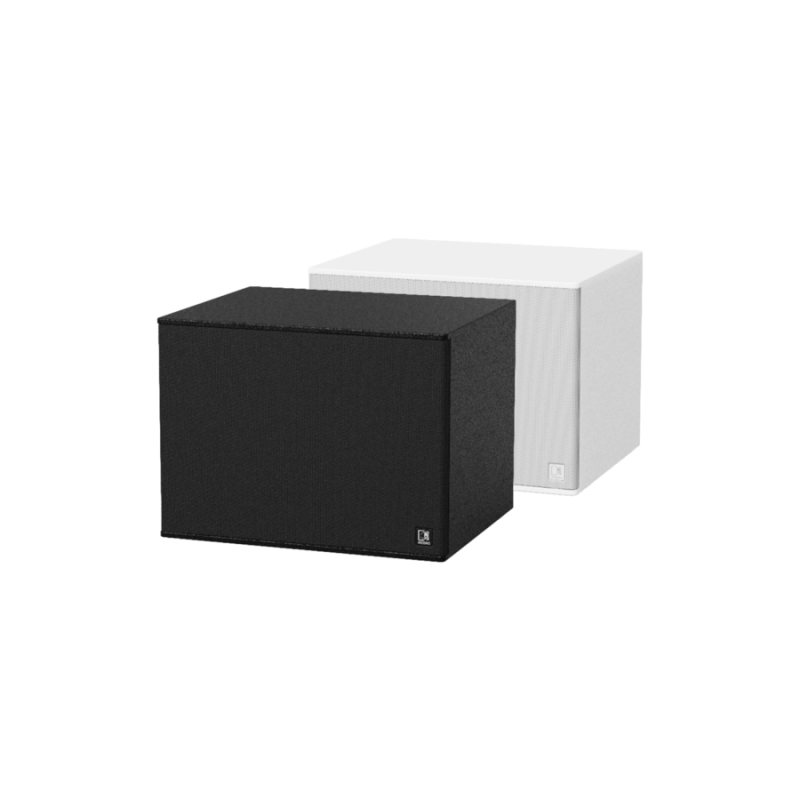

AUDAC ARCHI10 Compact 10 inch architectural subwoofer
The ARCHI10 is AUDAC's compact 10 inch architectural subwoofer. Driver configuration is 10 in Bass reflex cabinet. It is rated 225 W continuous and 900 W peak at 8 ohms. Sensitivity measures 98 dB at 1 W / 1 m.

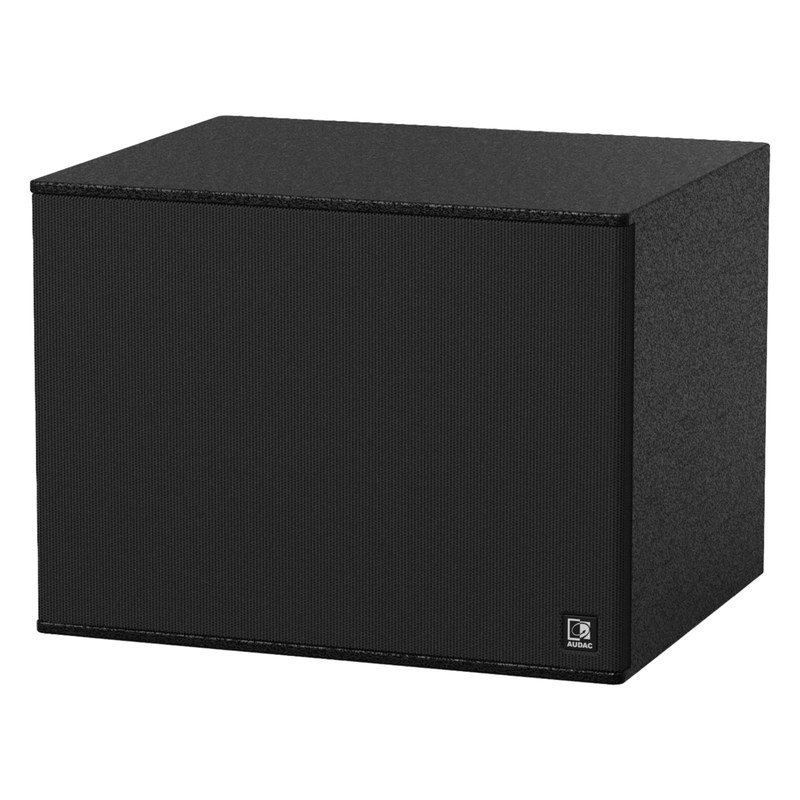

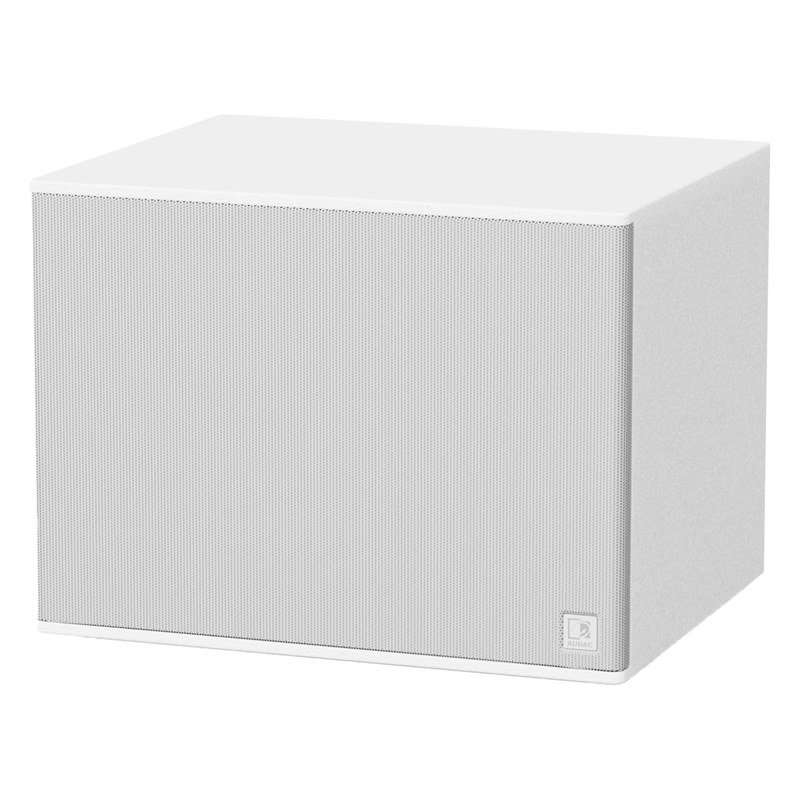

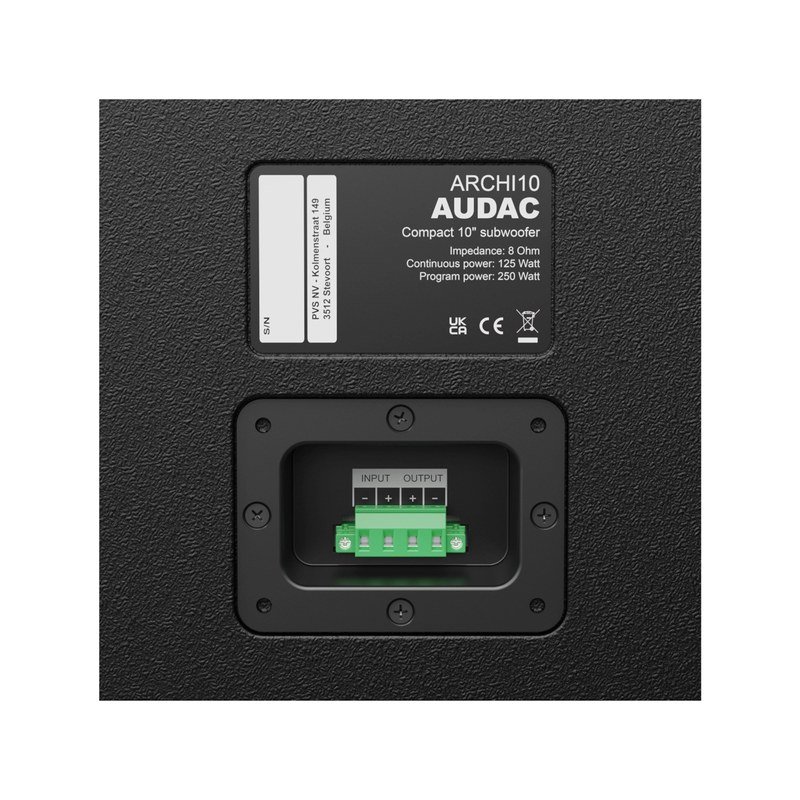

Connection is by Terminal block with linkthrough behind AcoustiMesh. It measures 15.94 x 11.81 x 13.15 in (W x H x D) (excluding feet) and weighs 24.69 lb. Order codes: ARCHI10/B is the Black version; ARCHI10/W is the White version.
| Speaker type | 10 in Bass reflex cabinet |
|---|---|
| Peak power handling | 900 W |
| Program power handling | 450 W |
| Continuous power (AES) | 225 W |
| Impedance | 8 ohms |
| Max SPL (Continuous/AES) | 124 dB |
| Sensitivity (1W/1m) | 98 dB |
| Frequency Response (- 3 dB) | 69 Hz - 120 Hz |
