AUDAC ASP20

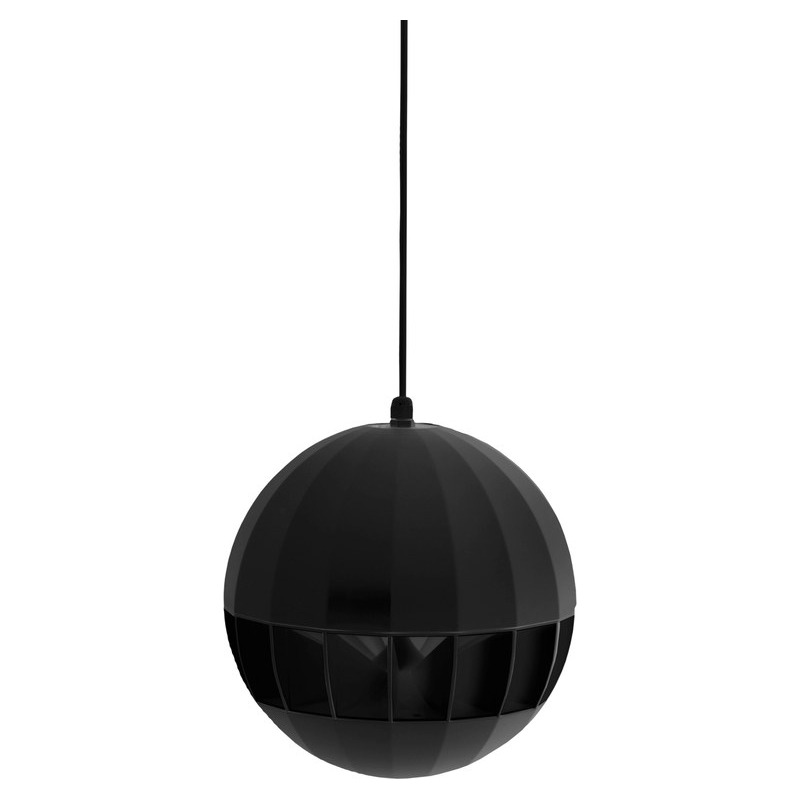

The ASP20 is AUDAC's spherical hanging sound projector. Driver configuration is Broadband. It is rated 20 W continuous and 80 W peak. Sensitivity measures 92 dB at 1 W / 1 m over a 80 Hz - 18 kHz response with a maximum sound pressure of 103 dB.

It connects by 137.80 in multi-core connection cable with steel safety core (ASP20). The housing is ABS. It measures 254 mm (dia.) and weighs 6.50 lb. Supplied with Plastic wire clamp. Order codes: ASP20/B is the Black version - 70/100V; ASP20/W is the White version - 70/100V.

Speaker typeBroadband
Drivers8 in
Peak power handling80 W
Program power handling40 W
Continuous power (AES)20 W
Line Transformer Tappings 1250 ohms - 100 V / Not used - 70 V / 20 W
Line Transformer Tappings 2500 ohms - 100 V / 20 W - 70 V / 10 W
Line Transformer Tappings 31000 ohms - 100 V / 10 W - 70 V / 5 W
