AUDAC ATEO6M

The ATEO6M is AUDAC's in & outdoor surface mount loudspeaker. Driver configuration is Full range. It is rated 60 W continuous and 240 W peak at 8 ohms (ATEO6M). Sensitivity measures 89 dB at 1 W / 1 m over a 65 Hz - 20 kHz response.

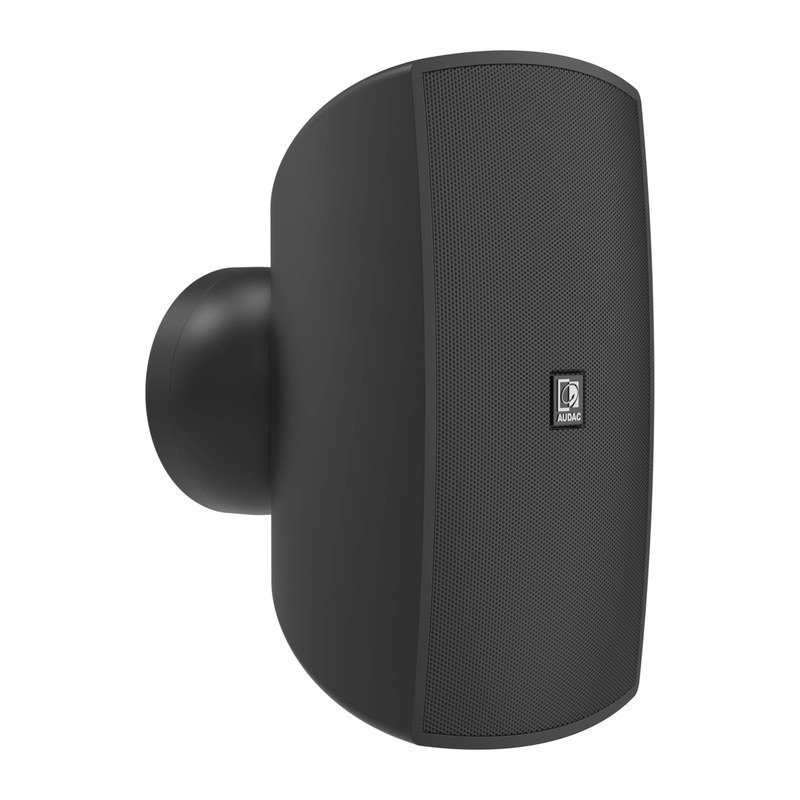

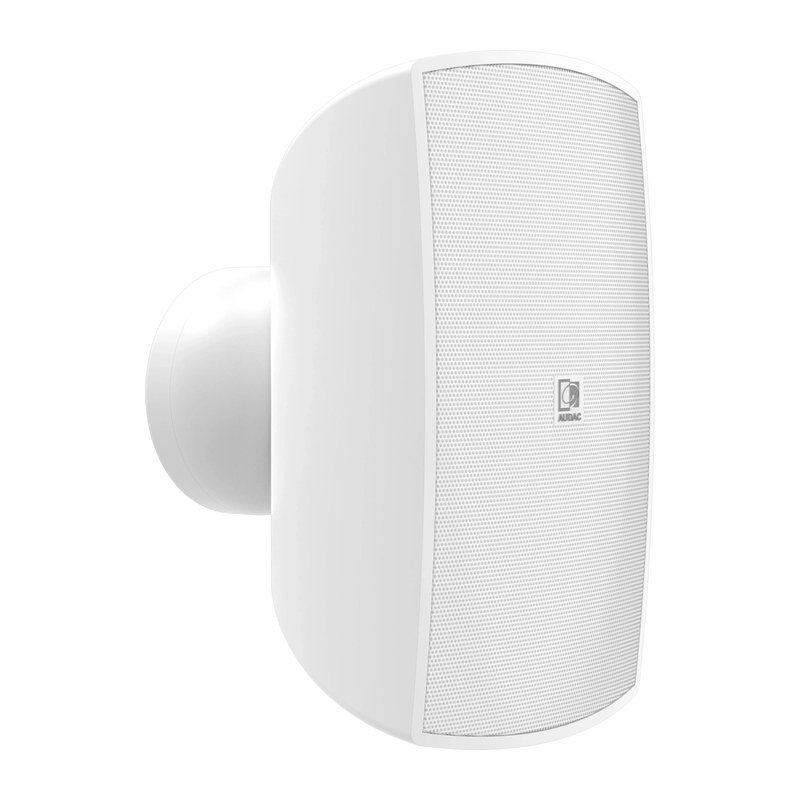

Connection is by 2 x WAGO terminal block connections. The housing is ABS behind Aluminium grill with hydrophobic cloth. It measures 7.60 x 13.68 x 8.47 in (W x H x D) and weighs 8.42 lb. Ingress protection is rated IP66. Supplied with Allen-key wrench. Order codes: ATEO6DM/B is the Black version - 16 ohms; ATEO6DM/W is the White version - 16 ohms; ATEO6M/B is the Black version - 8 ohms and 100V; ATEO6M/W is the White version - 8 ohms and 100V.

Speaker typeFull range
Continuous power (AES)60 W
Program power handling120 W
Peak power handling240 W
Impedance8 ohms (ATEO6M)
Incline angle Left30 deg
Incline angle Right30 deg
Incline angle Bottom30 deg
