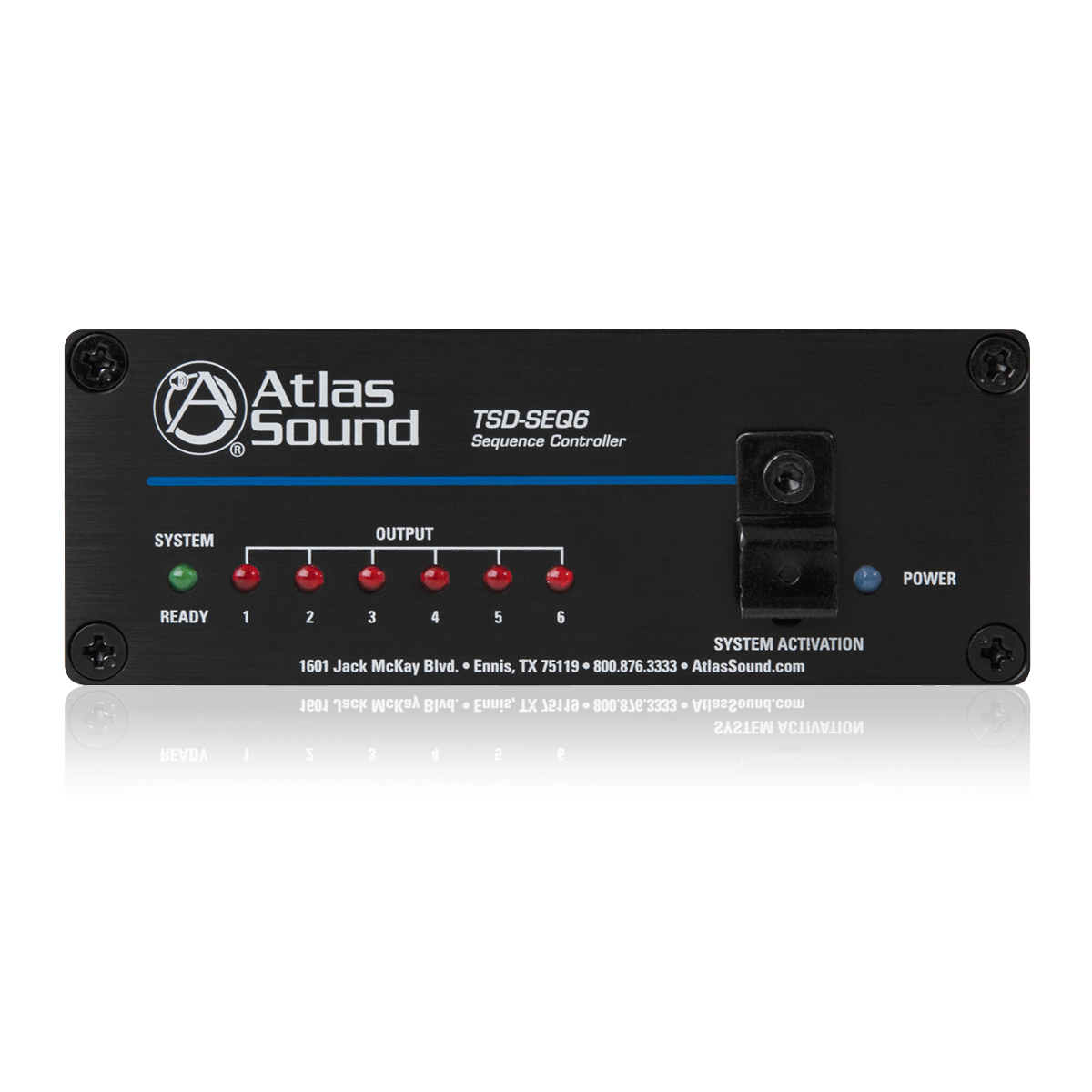

AtlasIED TSD-SEQ6 AC Sequence Controller

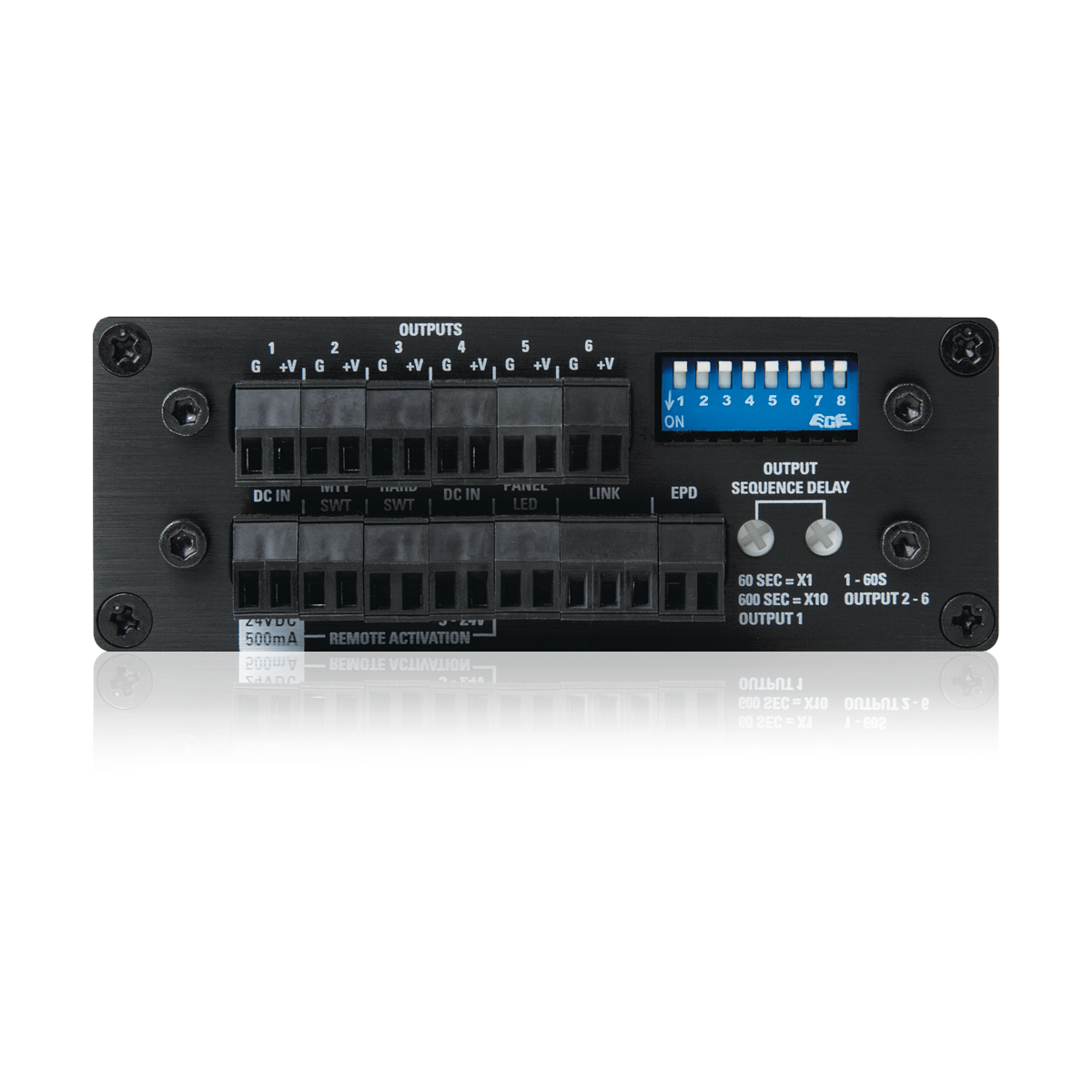

The AtlasIED TSD-SEQ6 is a sequencer controller features 6 outputs that are configurable individually to be either a 24VDC output or hard switch contact closure (CC).

AtlasIED lists 6 sequenced outputs; assignable 24VDC or hard switch contact closure (CC) per output; sequence 1 is adjustable: delay time 1 second to 10 minutes; sequences 2 - 6 are adjustable: delay time 1 second to 1 minute. It measures 1.5" (39mm) high and 2.75" (70mm) deep. It carries a manufacturer warranty of 36 months from date of purchase.

Part Number	TSD-SEQ6
Chassis Construction	Black Aluminum
Power Consumption	100mA
Sequence Status Indicator	Green, Qty 1
Output Status Indicator	Red, Qty 6
Height	1.5" (39mm)
Depth	2.75" (70mm)
Warranty Period	36 months from date of purchase
