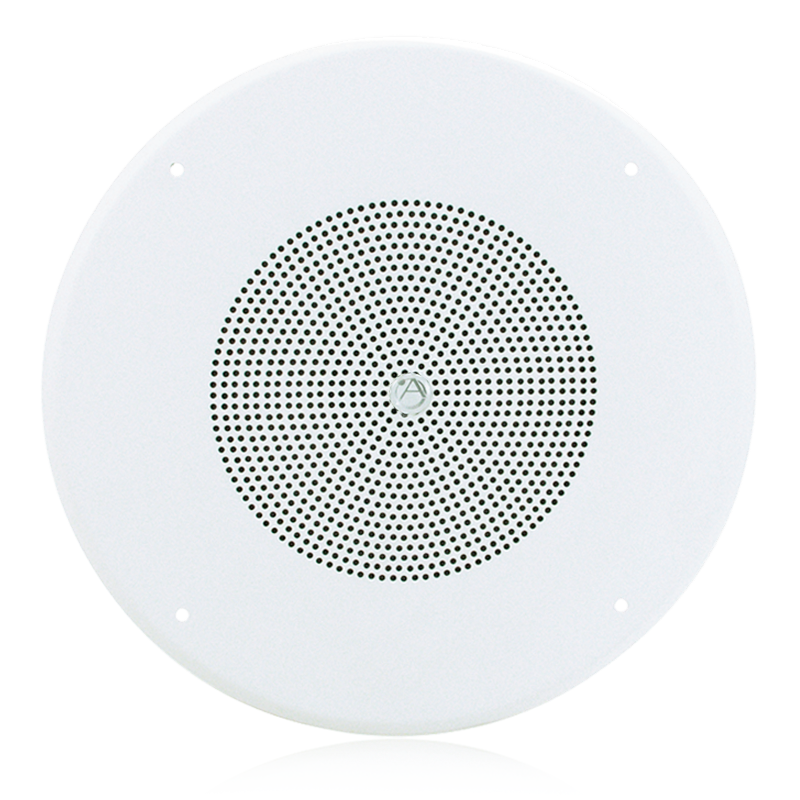

AtlasIED SD72W-KIT4 Qty 4 SD72 Speaker, 62-8 Baffle, CS95-8 Back Box, and 81-8R T-Bar Bridge Kit

The AtlasIED SD72W-KIT4 is a qty 4 SD72 speaker, 62-8 baffle, CS95-8 back box, and 81-8R T-bar bridge kit. AtlasIED offers the SD72W-KIT4 to make ordering a complete solution easy for in-ceiling speaker applications. The kit includes products that have been selected to work perfectly together in BGM and paging applications. It runs a treated paper driver over 55Hz - 8kHz.

SD72W-KIT4 includes:. The speaker used in the SD72W is the next generation of Atlas high performance cone speakers, very similar to the preceding C-Series speakers. It measures 8 1/8" in diameter. It is safety listed to UL 1480, 2043 and carries a manufacturer warranty of 60 months from date of purchase.

Part NumberSD72W-KIT4
Speaker TypeTreated Paper
Sensitivity97dB Average
Frequency Response55Hz - 8kHz
Power Taps.25, .5, 1, 2, & 5 Watts
Dispersion105° (2kHz Octave Band, -6dB Points)
Diameter8 1/8" (20.6375 cm)
Safety Listed1480, 2043
Warranty Period60 months from date of purchase
How to Wire an Atlas Sound SD72W Ceiling Speaker
