AtlasIED SM8SUB70-B 8" Surface Mount Subwoofer with 60-Watt 70V/100V Transformer - Black
The SM8SUB70-B is a black 8" surface-mount subwoofer that adds low end to 70V or 100V music systems in restaurants, bars and fashion retail. An 8" woofer in a 915 cubic inch multi-angle wood enclosure extends response to 55Hz, with a 55Hz-100Hz operating range. It is for indoor use only.

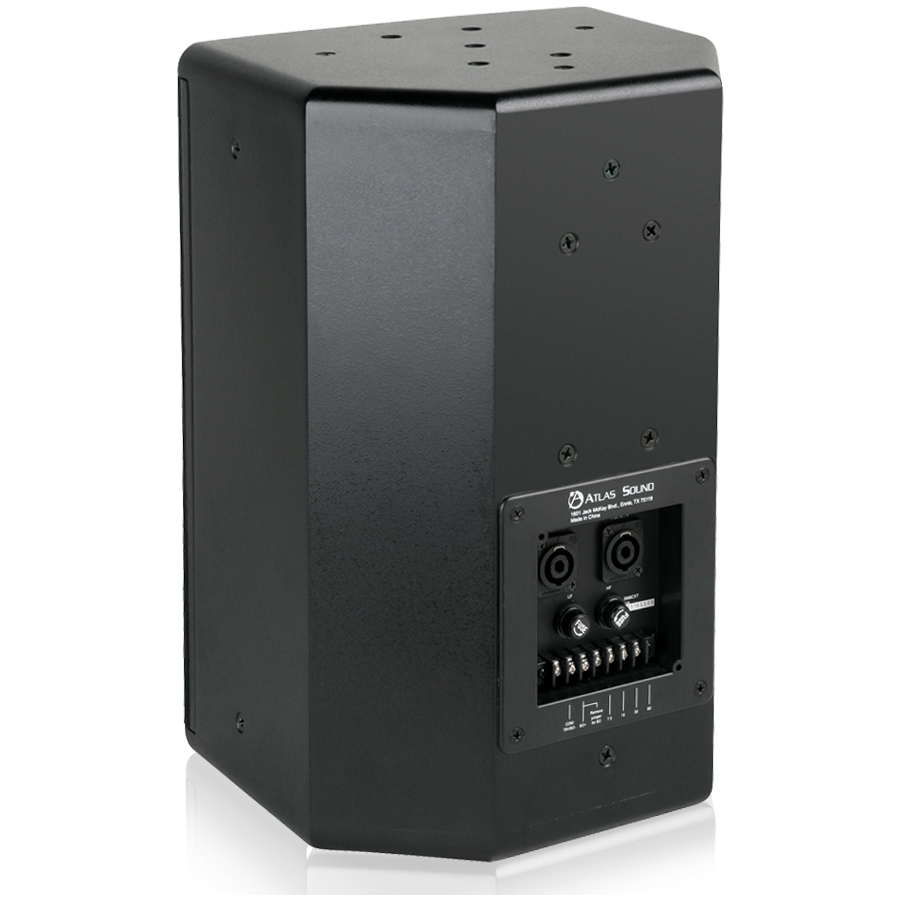

A 60-watt transformer handles 70.7V/100V lines, with inputs on a barrier strip (70.7V, 100V or 8 ohms) or on parallel 4-pole speakON connectors (8 ohms only), and a fuse protects the driver. The flyable cabinet has 1/4"-20 inserts for forged eyebolts or the optional SM8CBKT-B bracket, a heavy-duty grille and a black rough-coat finish. It is 10 5/8" wide, with a 60-month warranty.
- Frequency Response55Hz - 100Hz
- Speaker TypeSub
- DispersionOmni
- Width10 5/8"
- Transformer60W 70.7V/100V
| Part Number | SM8SUB70-B |
|---|---|
| Frequency Response | 55Hz - 100Hz |
| Speaker Type | Sub |
| Dispersion | Omni |
| Width | 10 5/8" (26.9875 cm) |
| Transformer | 60W 70.7V/100V |
| Enclosure Volume | 915 cubic inches |
| Inputs | Barrier strip (70.7V/100V/8Ω) or parallel 4-pole speakON (8Ω only) |
| Warranty Period | 60 months from date of purchase |
