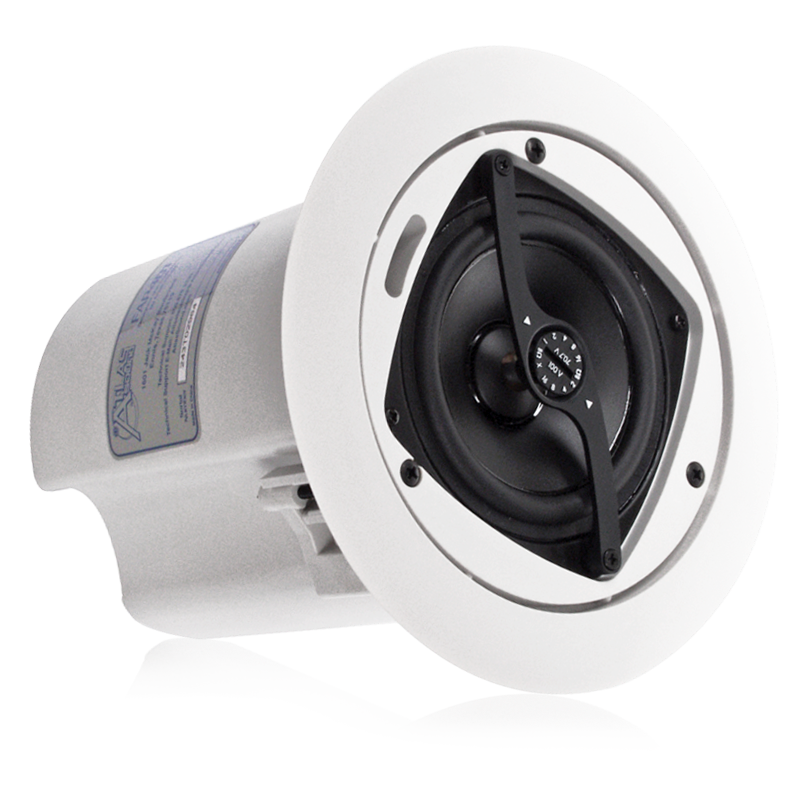

AtlasIED FAP40T 4" In Ceiling Speaker with 16-Watt 70/100V Transformer and Ported Enclosure
The AtlasIED FAP40T is a 4" in ceiling speaker with 16-watt 70/100V transformer and ported enclosure. Designed to provide high performance in a very compact footprint, the FAP40T appeals to both system designers and architects. FAP40T is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications. It runs a single cone driver over 100Hz - 12kHz.
A unique (patent pending) tap selector switch design allows for easy system tuning. A full selection of taps up to 16 watts as well as an 8 ohm transformer bypass setting is included for maximum system versatility. AtlasIED lists 16 watt internal transformer; 8 ohm transformer bypass setting; input via 2 pole terminal strip; lightweight construction makes use of additional support in drywall ceilings unnecessary. It measures 7 1/8" deep and 7 3/8" in diameter. It ships at 8.50 lbs, is certified to UL 1480, and carries a manufacturer warranty of 60 months from date of purchase.
| Part Number | FAP40T |
|---|---|
| Speaker Type | Single Cone |
| Power Taps | 1, 2, 4, 8, 16 Watts & 8Ω |
| Sensitivity | 87dB Average |
| Frequency Response | 100Hz - 12kHz |
| Dispersion | 130° |
| Depth | 7 1/8" (18.0975 cm) |
| Diameter | 7 3/8" (18.7325 cm) |
| Shipping Weight | 8.50 lbs (3.86 kgs) |
| Certified to Safety Listing | UL 1480 |
| Warranty Period | 60 months from date of purchase |
