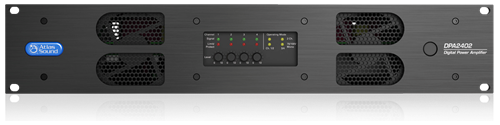

AtlasIED DPA2402 2400-Watt Networkable Multi-Channel Power Amplifier

The DPA2402 is a DSP-controlled, four-channel power amplifier that ships preconfigured for two channels of 70V operation but reconfigures in the field to four channels at 4 or 8 ohms, or a hybrid mix of 70V and low-impedance outputs. A browser-based GUI reachable from a PC, tablet, or phone handles setup, and an optional wired remote covers rooms where network access is not convenient.

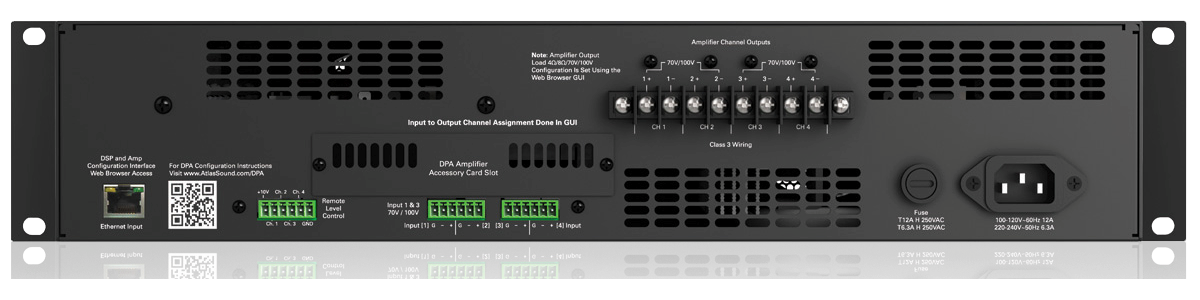

Four balanced line inputs come standard and expand to eight with an optional Dante receiver card or analog mixer accessory. Every channel carries level control, EQ, limiting, high/low-pass filtering, and delay, and AtlasIED's Site Manager software auto-discovers units on the network for fault reporting and remote scheduling.
