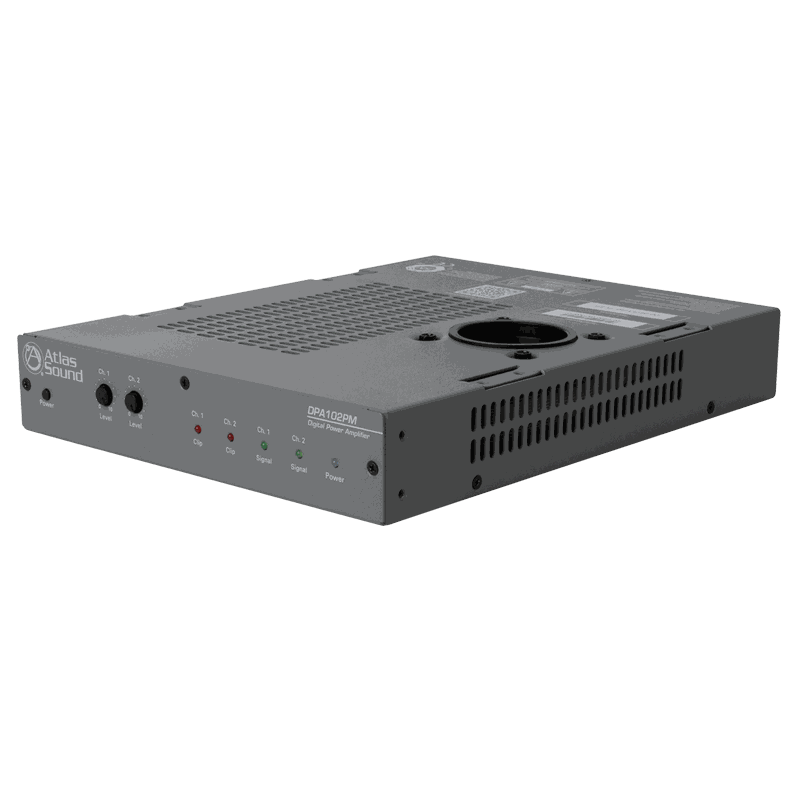

AtlasIED DPA-102PM 2-Channel x 100-Watt 4Ω Networkable Pole Mount Power Amplifier
The AtlasIED DPA-102PM is a 2-channel x 100-watt 4Ω networkable pole mount power amplifier. The AtlasIED DPA Series amplifiers feature a combination of flexibility, performance and control to provide high value features for applications that require more than just great sound. Atlas DPA amplifiers can be used right out of the box as traditional power amplifiers requiring no programming, special set-up, or network connectivity. Published frequency response is 20Hz - 20kHz.
However; if you need more from the amplifier, the web enabled DPA Series has an assortment of DSP tools including level controls, EQ's, limiters, high & low pass filters, delays and summing to provide great flexibility for a range of applications. Once configured, the amplifier can be password protected to prevent unauthorized changes. AtlasIED lists 2 x 100 watt class-D amplifier technology; DSP signal processing, fully configurable; ethernet network connectivity; remote monitoring of status & levels. It measures 1.75" (45mm) high, 8.5" (215mm) wide, and 13.5" (343mm) deep. It carries a manufacturer warranty of 36 months from date of purchase.
| Part Number | DPA-102PM |
|---|---|
| Power Output | 2 x 100 Watts @ 4Ω |
| Frequency Response | 20Hz - 20kHz |
| THD | 0.2% @ Rated Output |
| Signal to Noise Ratio | 100dB |
| Height | 1.75" (45mm) |
| Width | 8.5" (215mm) |
| Depth | 13.5" (343mm) |
| Voltage Compatibility | Universal |
| Warranty Period | 36 months from date of purchase |
