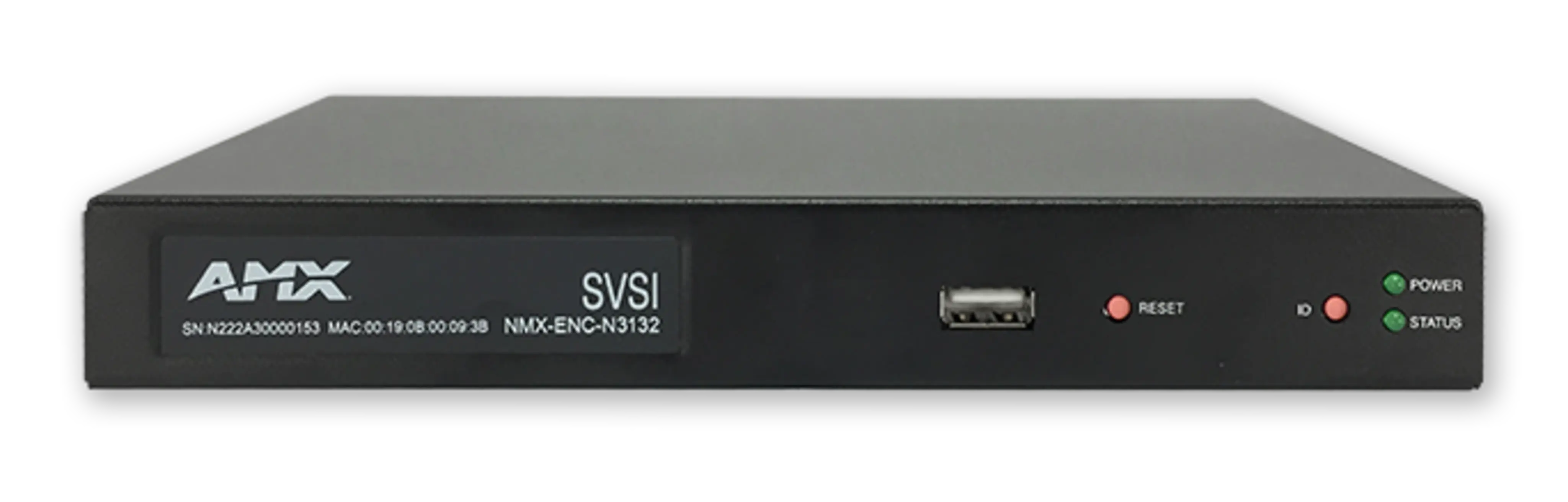

AMX NMX-ENC-N3132 H.264 Video over IP Encoder

The N3132 is the SVSI N3000 series encoder for installations where bandwidth matters more than zero latency. It accepts HDMI, DVI-D, DisplayPort (DP++), and RGB/VGA sources, compresses them with an H.264 engine, and puts the result on a 10/100/1000 Ethernet network, so streams travel over ordinary IT infrastructure rather than a dedicated AV backbone. A local HDMI and DVI-D pass-through keeps a confidence monitor alive at the source.

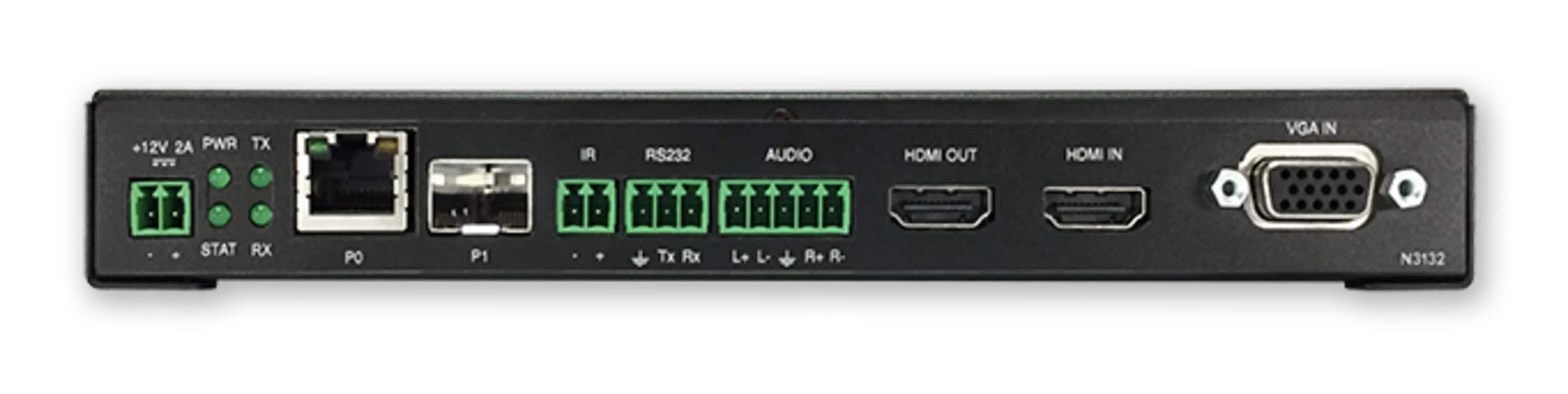

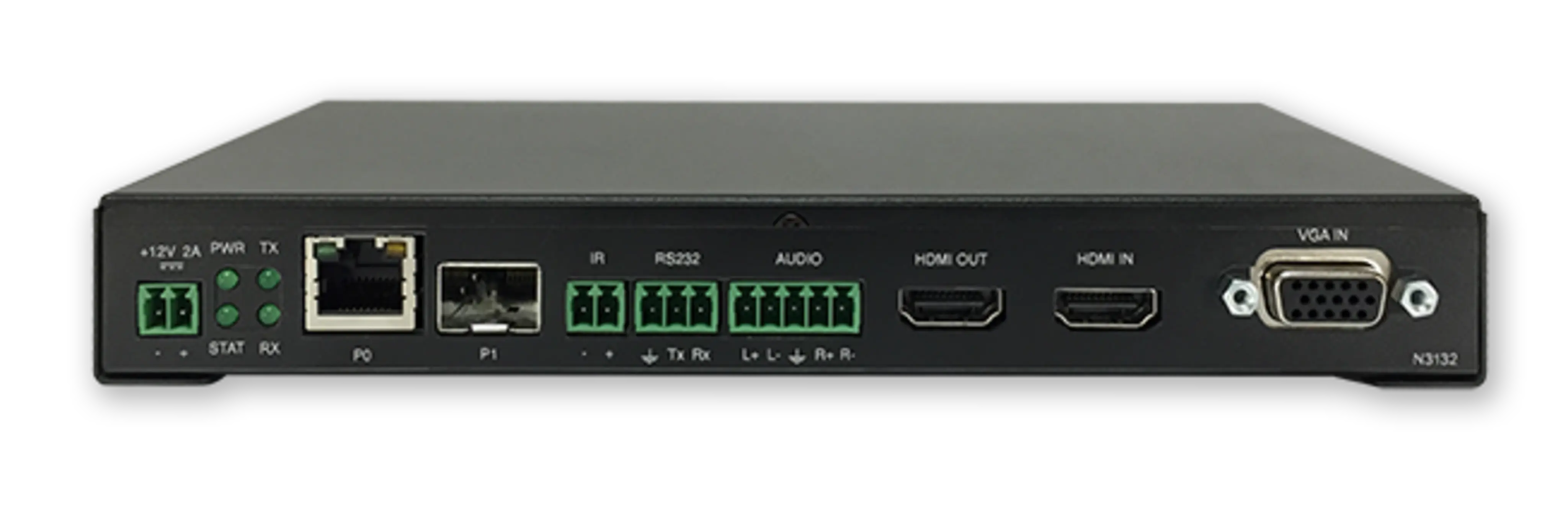

It handles most common HD formats up to 1080p60 including 1080i60, with latency of 175 ms at 60 fps. Audio can be the embedded HDMI stream or balanced/unbalanced analog stereo at 16-bit, 32/44.1/48 kHz. Network connection is RJ45 or a 1G SFP port for fiber or copper modules, and the unit takes Power over Ethernet or local 12VDC. Control includes an infrared emitter, serial, and onboard TCP/UDP command triggering from events.
