AceBackstage Stage Pocket for Hybrid Fiber Optic and Speciality Connectivity

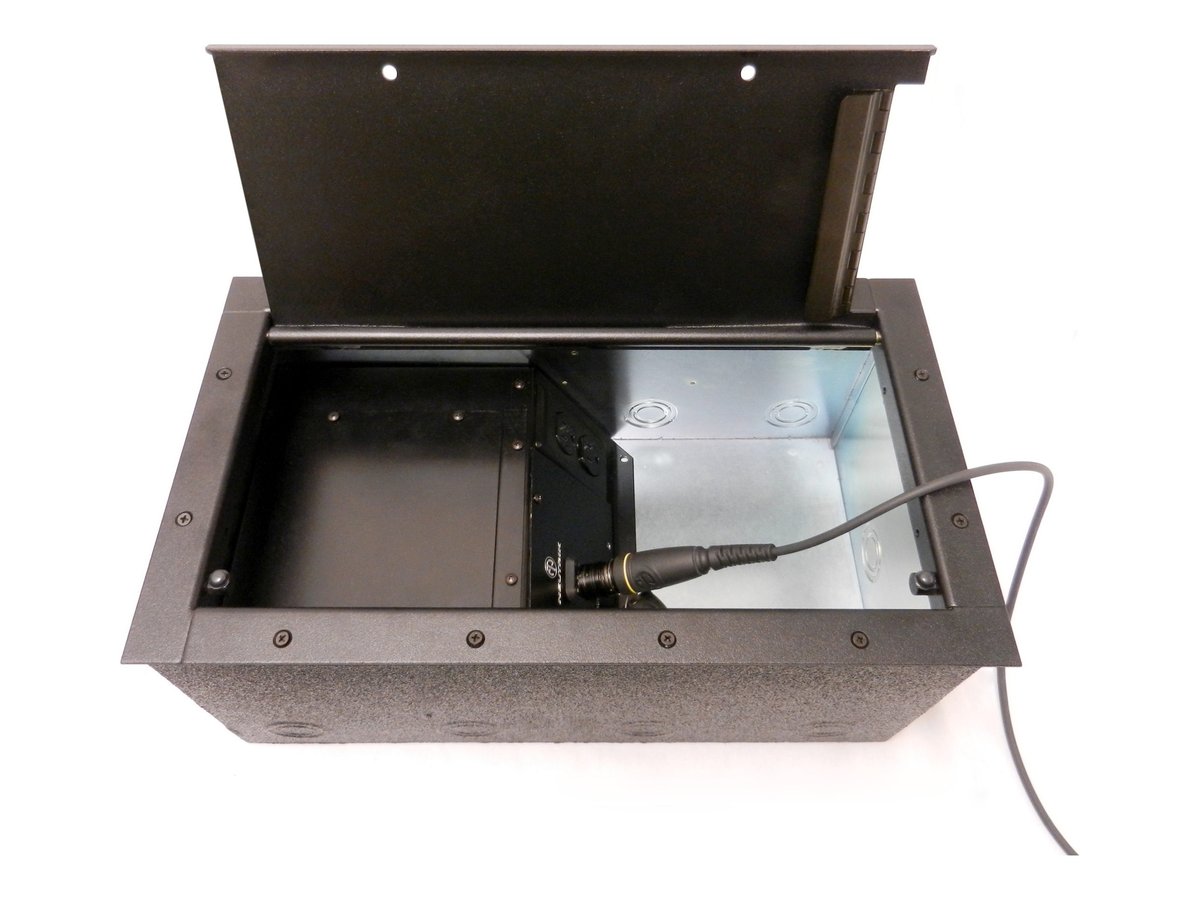

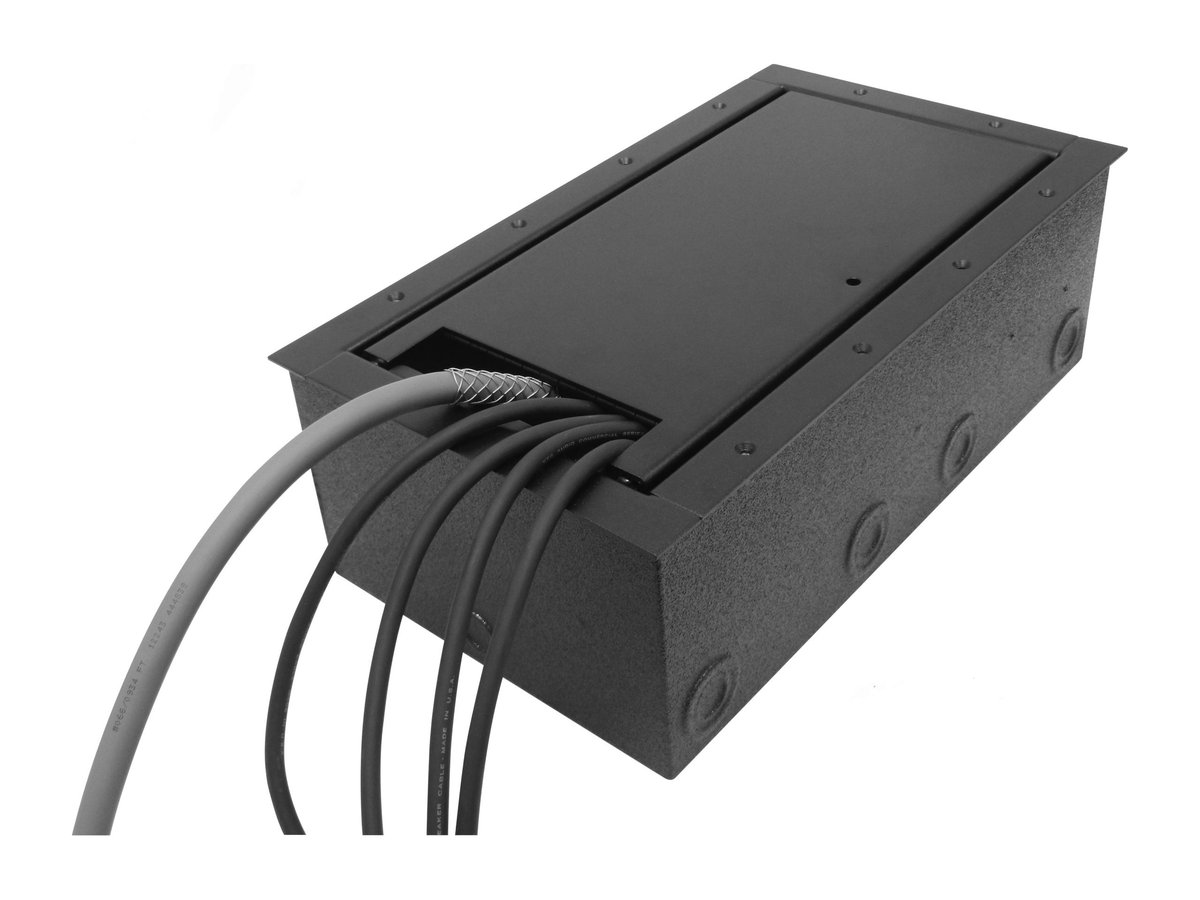

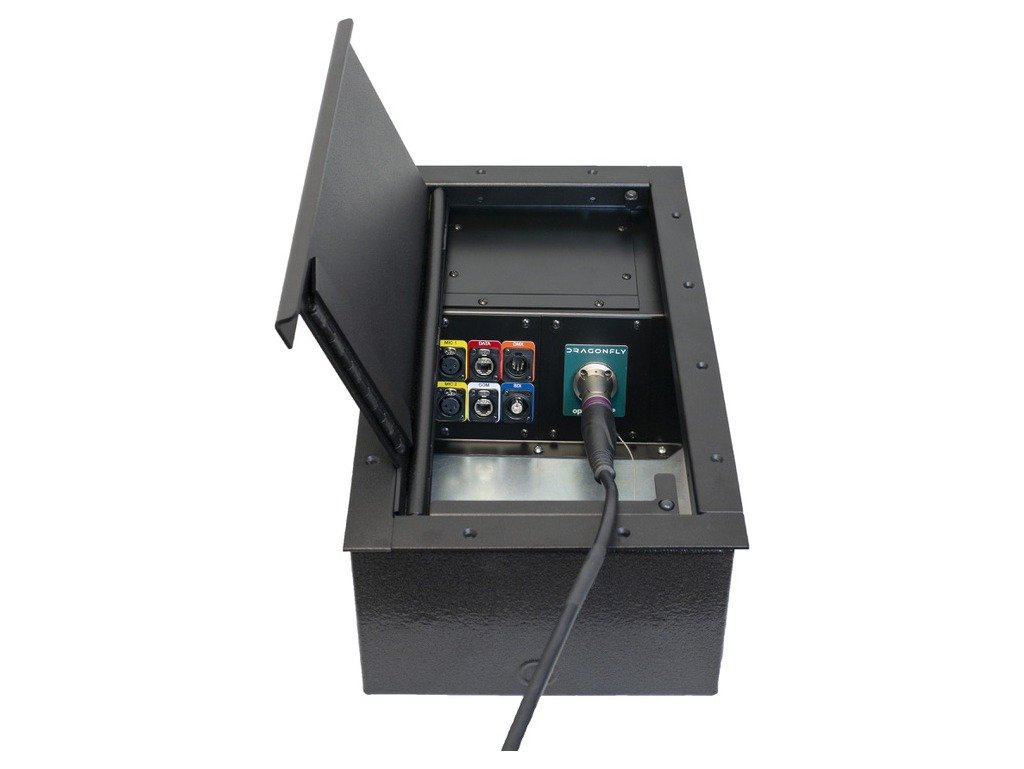

The Stage Pocket for Hybrid Fiber Optic and Speciality Connectivity is a floor pocket that puts stage connectivity flush with the deck and out of the walk path. The bezel sits at floor level, the lid lifts on the hinge, and the CONNECTRIX panel inside carries whatever mix of audio, data, video and power the room was specified for.

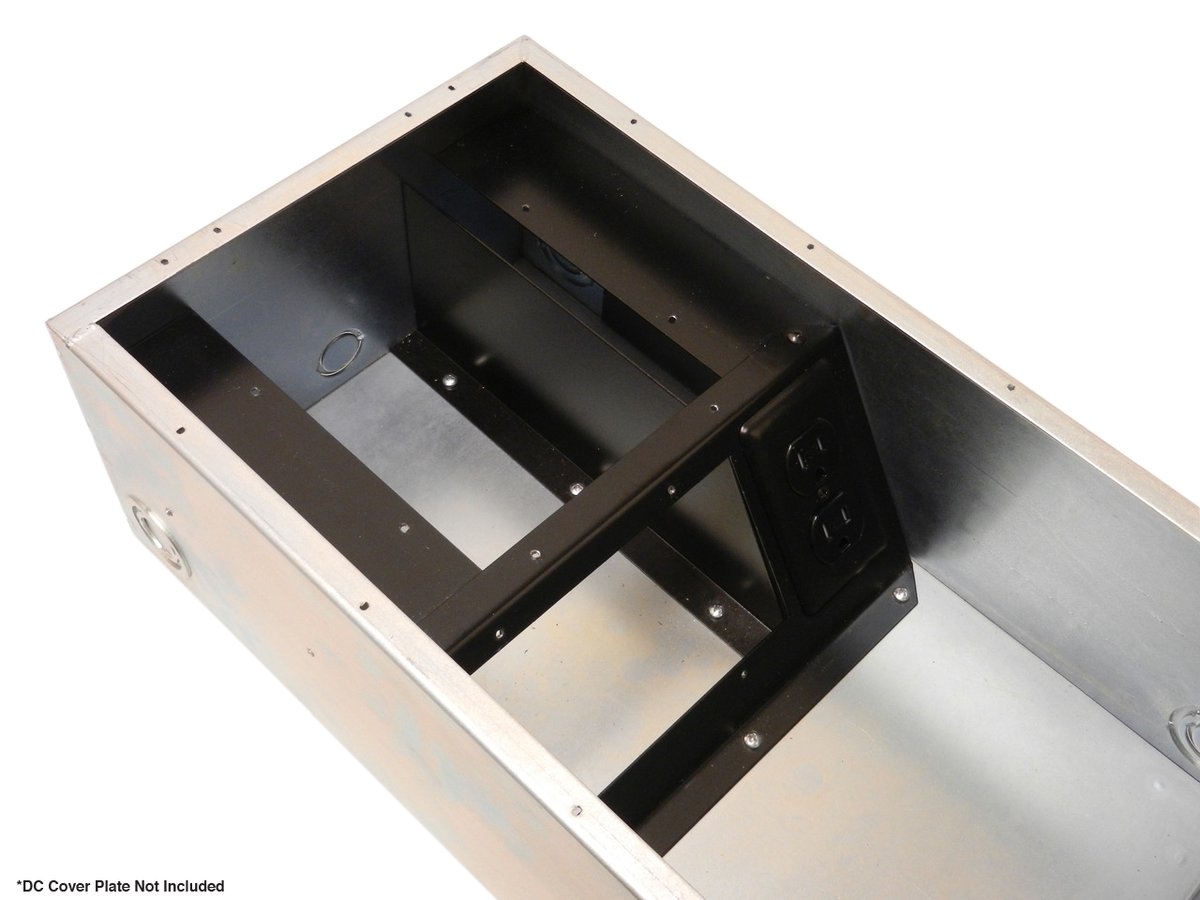

Ordered as part number 154SLBK. Floor cut out is 18" x 10"; under floor depth 6" deep. It drops into the matching AceBackstage back box, which is ordered separately along with the connector panel. Full published dimensions are in the specifications tab.

Part Number	154SLBK
Above Floor Dimensions	18.5" x 10.5"
Floor Cut Out	18" x 10"
Under Floor Depth	6" deep
Hinged Lids	Removable hinge pins allow the lid to be disconnected for easy pocket floor installation.
Connectrix Panels & Connectors	Newly Updated to provide increased flexibility, standard CONNECTRIX PNL-100 Series Panels are always in-stock and mate perfectly with this pocket.
Easy Installation	Frame the Pocket Body Back Box below the construction floor surface to support your load requirements, accounting for finished floor height offset.
Brand	AceBackstage
