AceBackstage RackWell for Digital Snakes

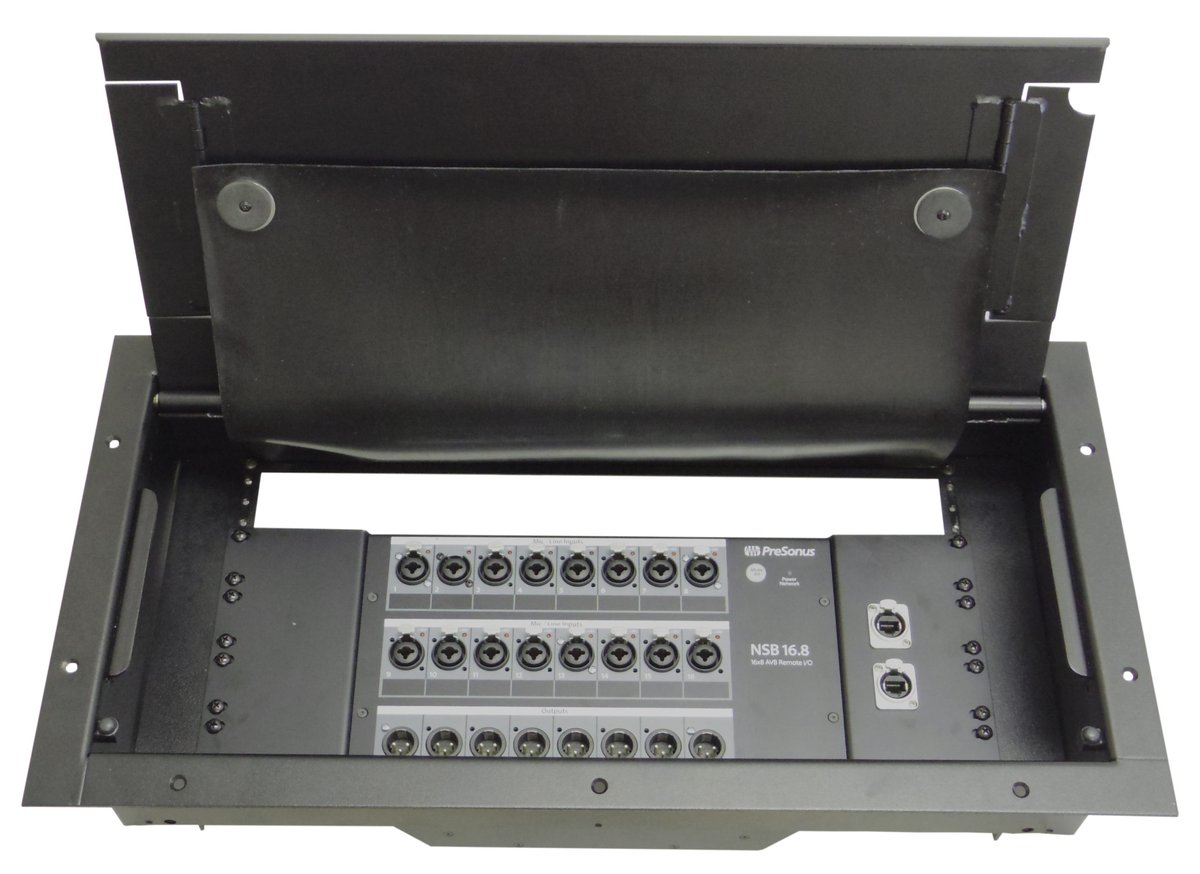

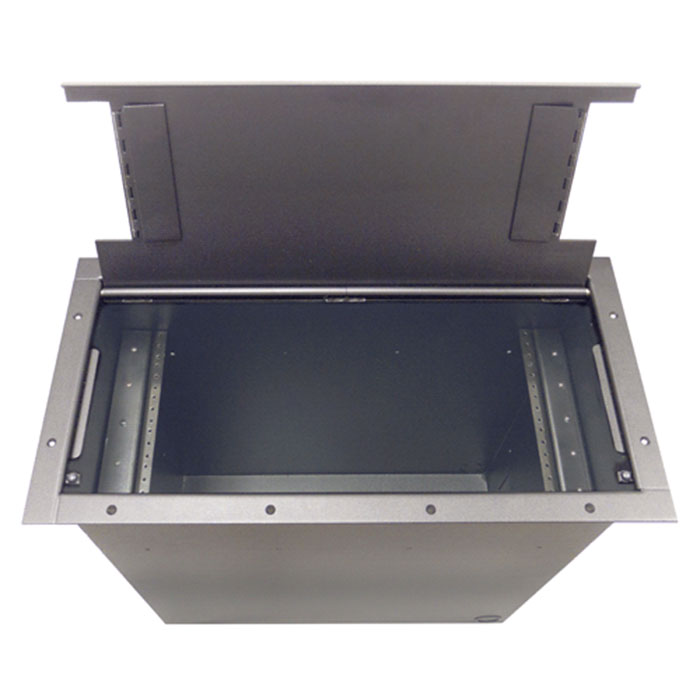

The RackWell for Digital Snakes is a floor pocket that puts stage connectivity flush with the deck and out of the walk path. The bezel sits at floor level, the lid lifts on the hinge, and the CONNECTRIX panel inside carries whatever mix of audio, data, video and power the room was specified for. Published capacity is 5 RU.

Ordered as part number 125SLBK. Floor cut out is 22.5" x 10.375"; under floor depth 4" deep. It drops into the matching AceBackstage back box, which is ordered separately along with the connector panel. Full published dimensions are in the specifications tab.

Part Number	125SLBK
Capacity	5 RU
Above Floor Dimensions	24.3" x 12.3" deep
Floor Cut Out	22.5" x 10.375"
Under Floor Depth	4" deep
Equipment Accomodation	Fixed and recessed rack rail placement accommodates rackable equipment with 4 inches of receptacle clearance when the RackWell lid is closed.
Brand	AceBackstage
