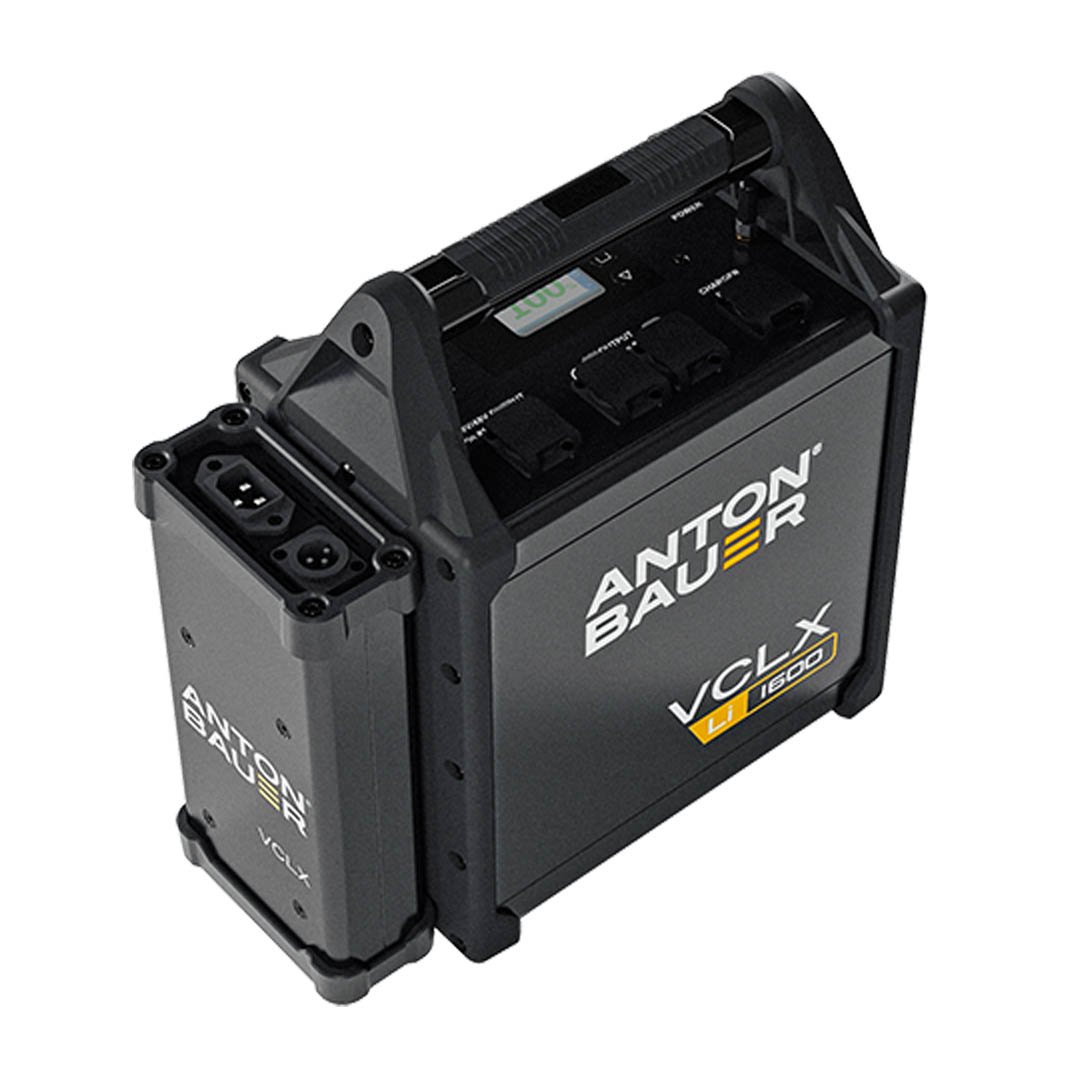

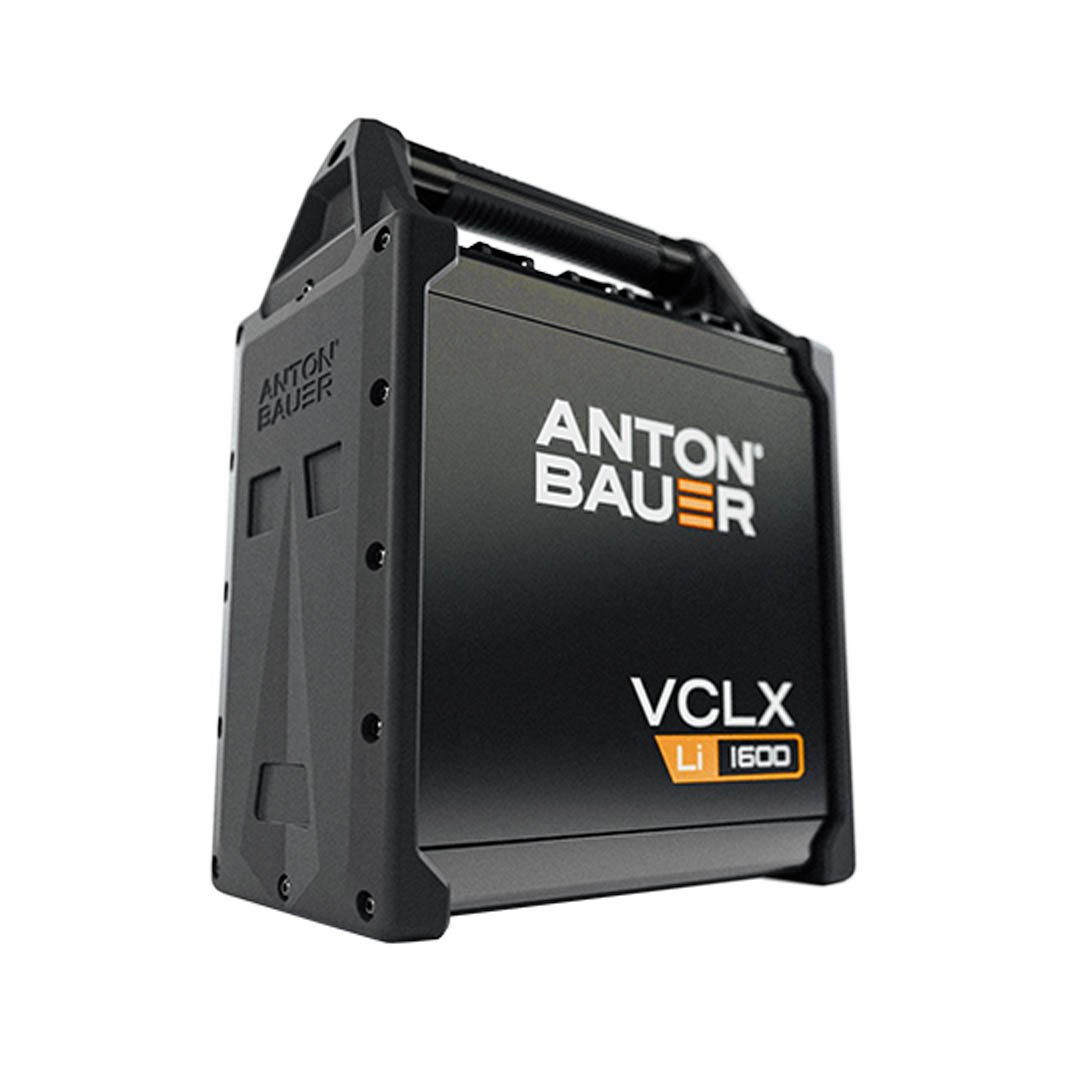

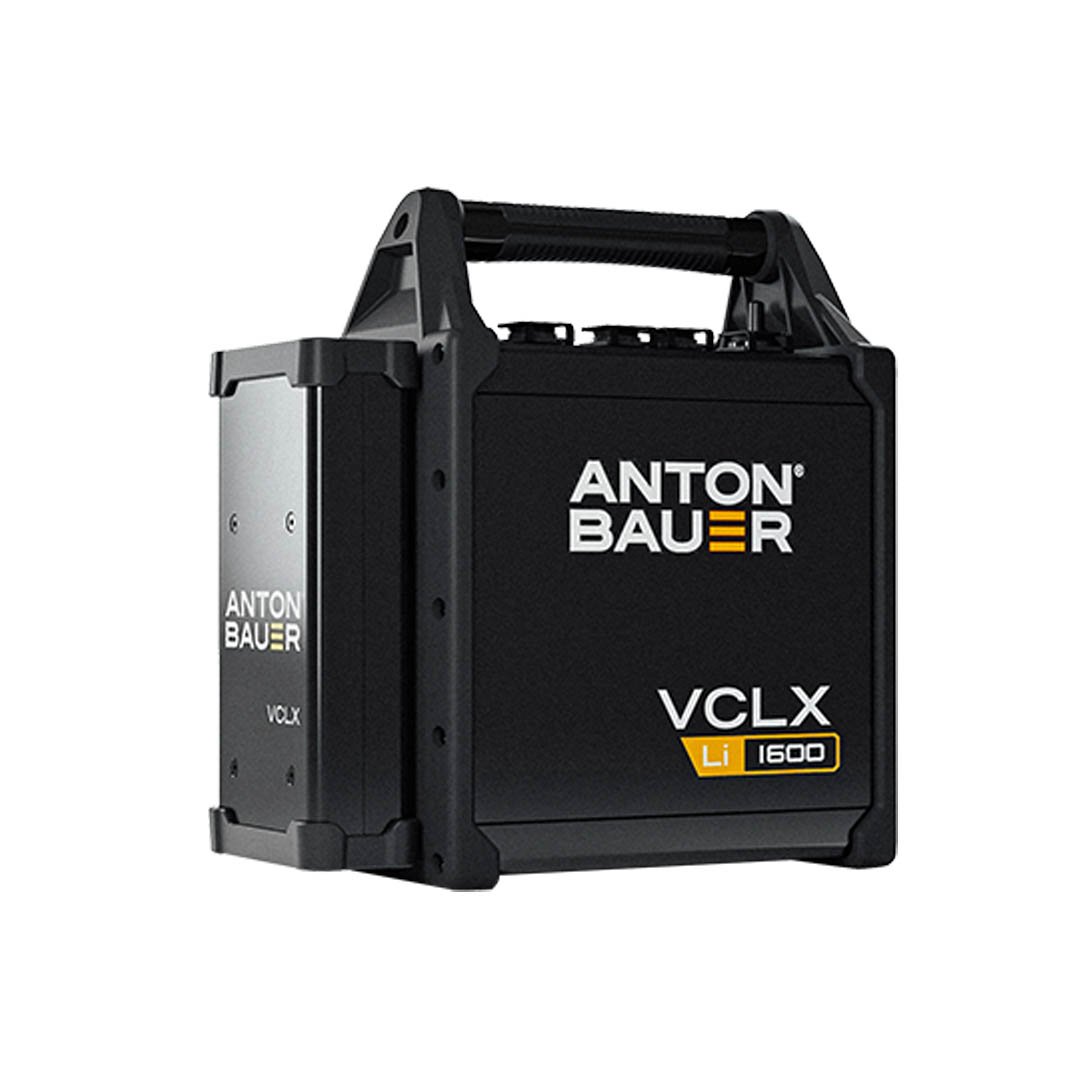

Anton Bauer VCLX LI 1600Wh Block Battery

The VCLX LI is the lithium successor to the NM2 and it changes the arithmetic on off-grid days: over twice the stored energy of the NM2 at a lighter 25.5 lbs. It supplies 24A continuous at 14.4V through two XLR4 outputs, and 16A at a selectable 28V or 48V through one XLR3, plus a 5V 2A USB port, so cameras, monitors and lighting can all sit on one battery.

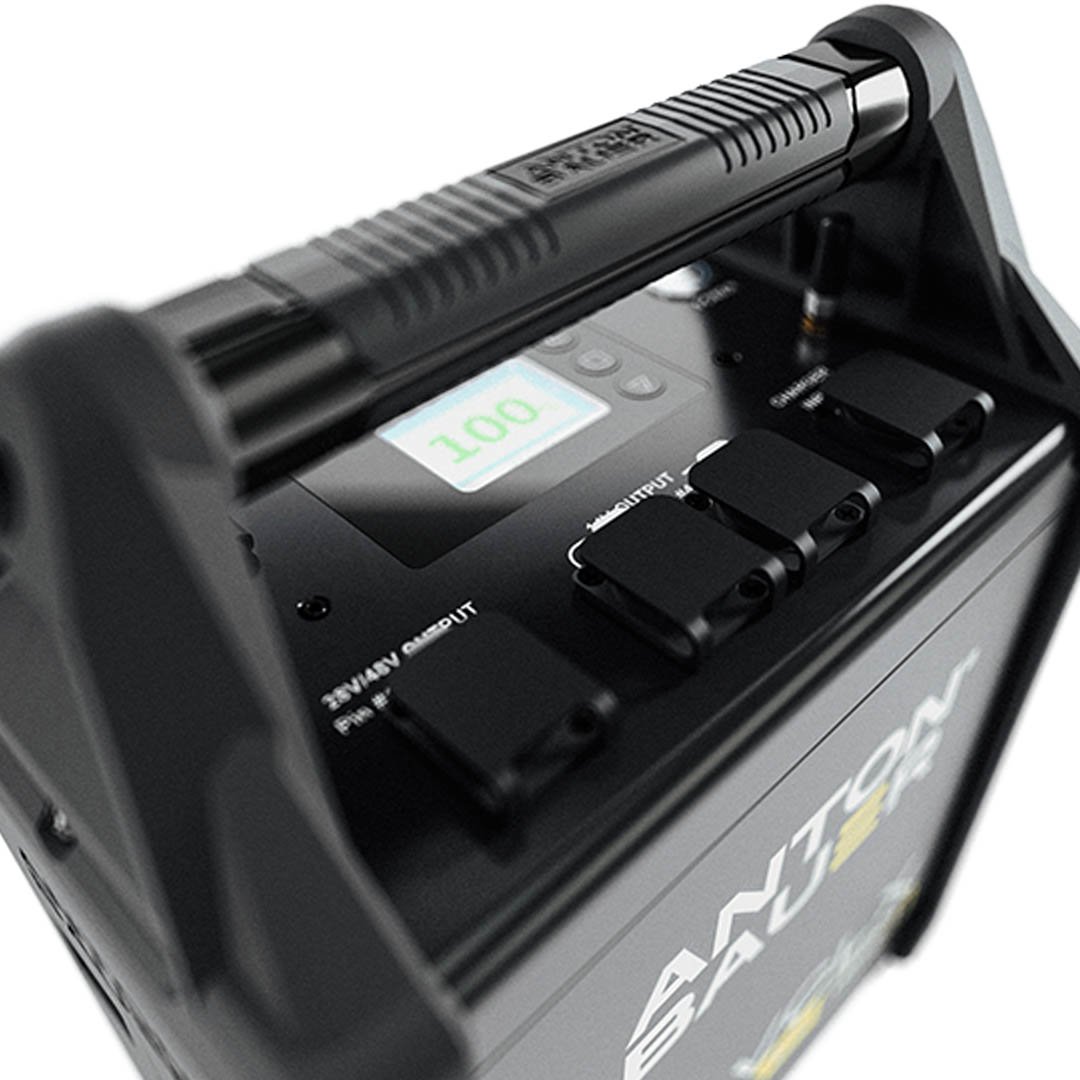

A 2.4 inch colour LCD reports runtime to the minute under load, time to full when charging, and system and fault information. Smart electronic fuses protect each output, built-in Wi-Fi feeds Anton Bauer Fleet Management, and the anodised aluminium chassis is IP65 rated with the included sleeves. Charge time is eight hours.

Outputs	2 x XLR4 at 14.4 V (12 A each), 1 x XLR3 selectable 28 V or 48 V (16 A), 1 x USB 5 V 2 A
Continuous Draw	24 A at 14.4 V; 16 A at 28 V or 48 V
Charge Time	8 hours
Display	2.4 in colour LCD smart screen
Series	VCLX
Chemistry	Lithium-ion
Capacity	1642 Wh
XLR Input	Yes
Max Load	850W
