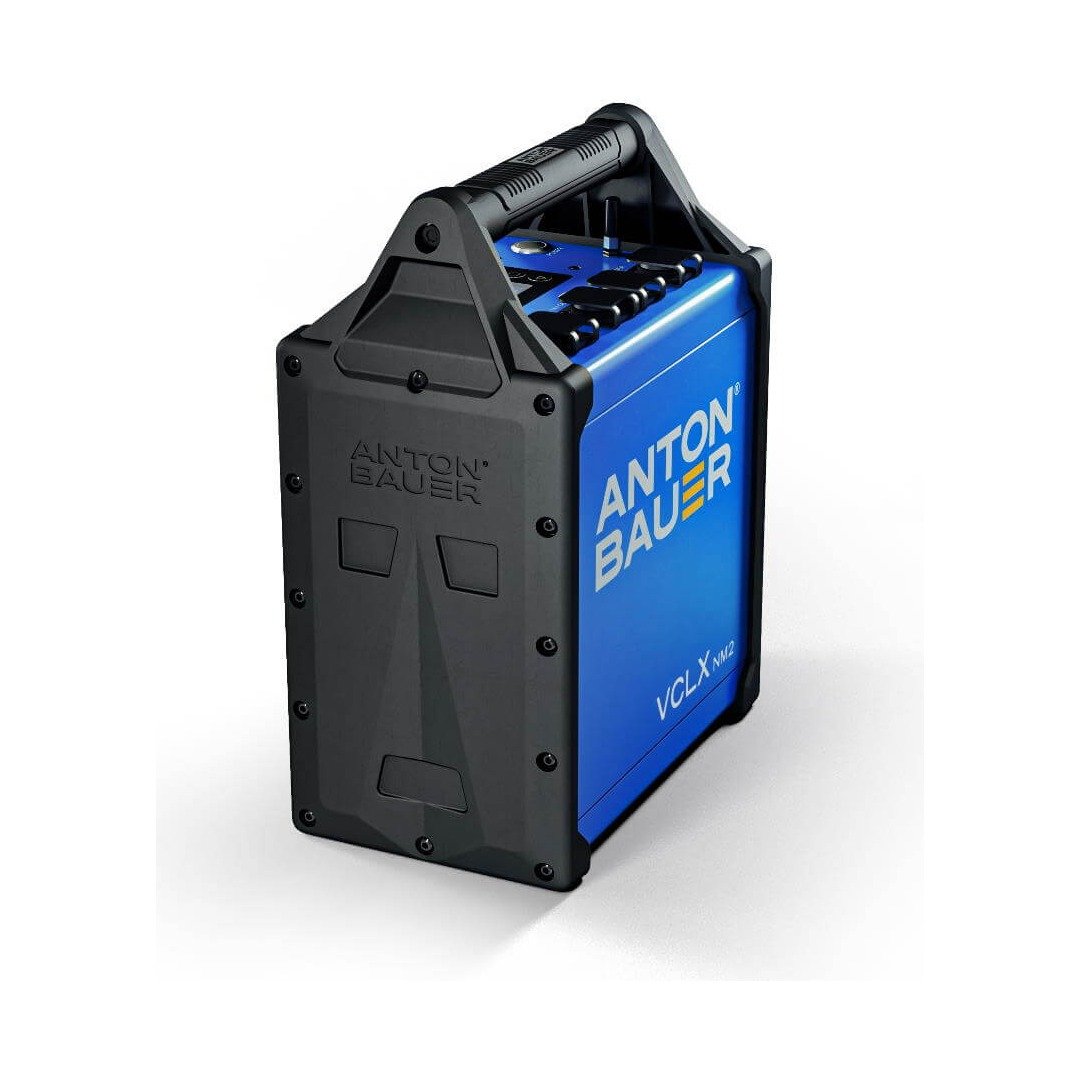

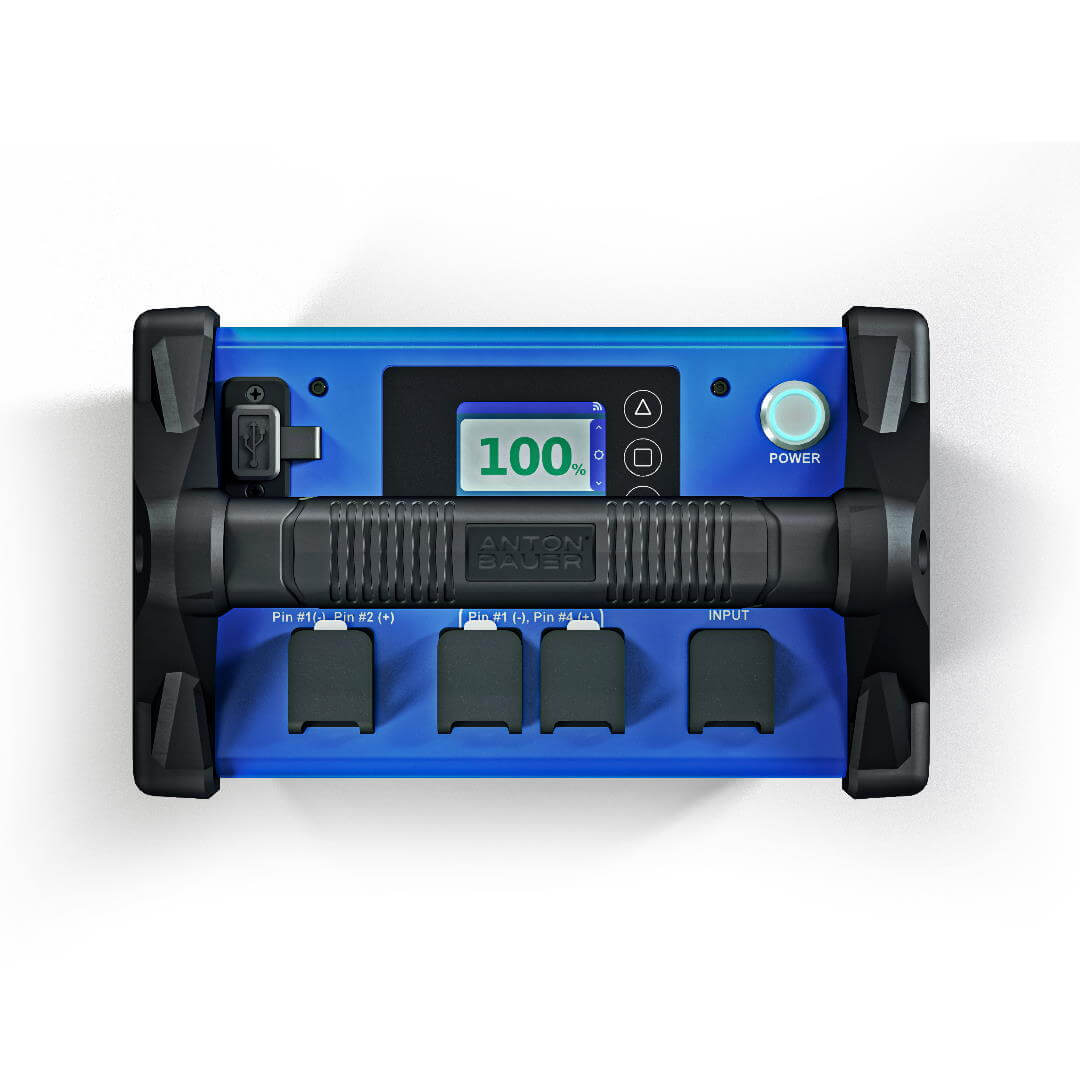

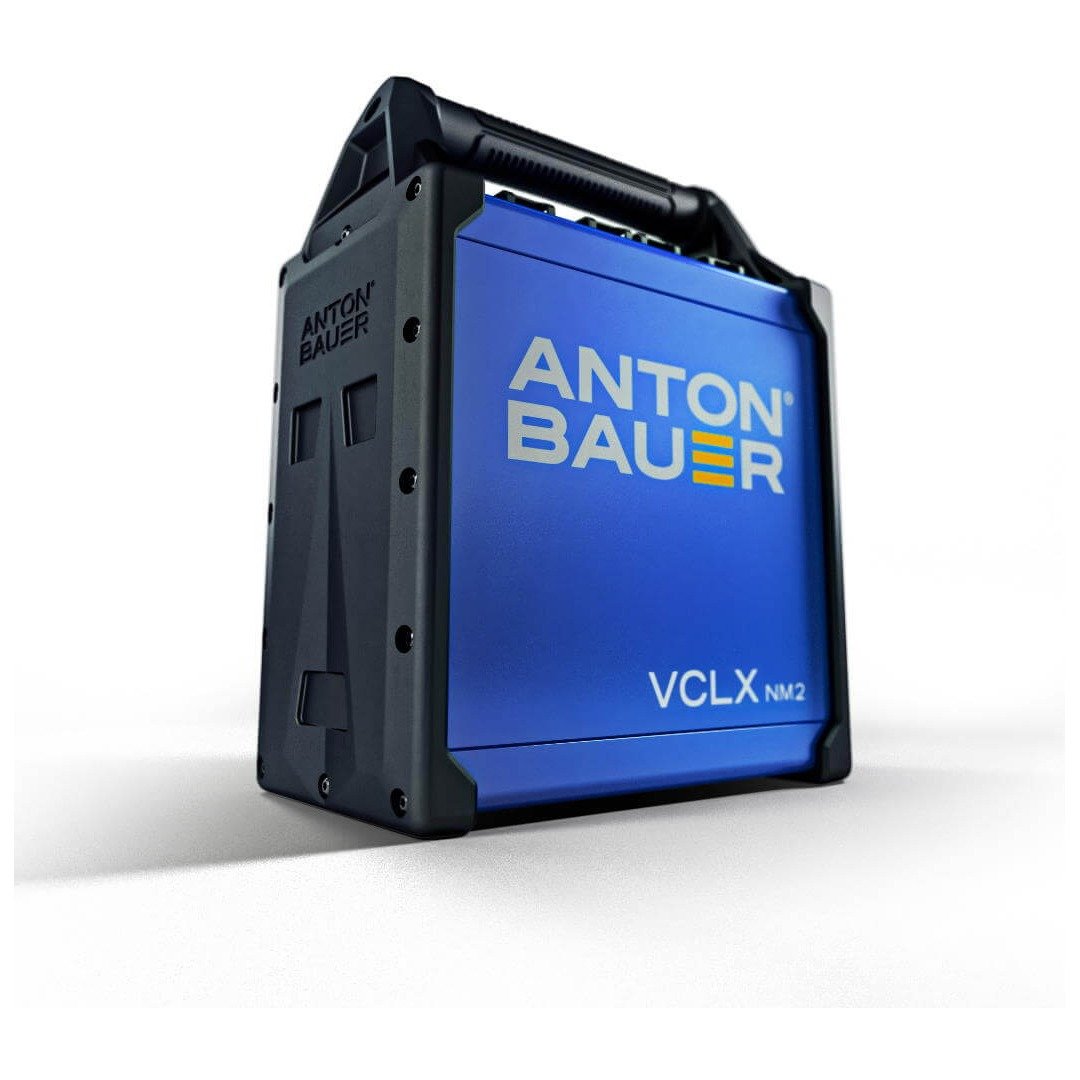

Anton Bauer VCLX NM2 600Wh Block Battery
The VCLX NM2 is a free-standing 600Wh NiMH block battery that feeds a whole cart rather than one camera. It puts out 14.4V on two 4-pin XLR connectors and 28V or 48V on a 3-pin XLR, and it will run those outputs simultaneously, which is what makes it the usual answer for high-current lighting and camera packages off the grid.
It pairs with the VCLX 2 charger, whose charge algorithm is among the fastest available for block batteries. Built-in Wi-Fi exposes product ID, learned capacity, cycle count, time-stamped errors and pack condition, either on the battery itself or through Anton Bauer's Fleet Management software, and smart electronic fuses protect each output.
| Outputs | 2 x 4-pin XLR (14.4 V), 1 x 3-pin XLR (28 V or 48 V) |
|---|---|
| Fleet Management | Built-in Wi-Fi reporting to Anton Bauer Fleet Management |
| Protection | Smart electronic fuses |
| Series | Cine, VCLX |
| Chemistry | Nickel Metal Hydride |
| Capacity | 600 Wh |
| Voltage | Multi |
| P-Tap Outputs | None |
| USB Port | Yes |
