Audio Technica AT803b

Click for more info

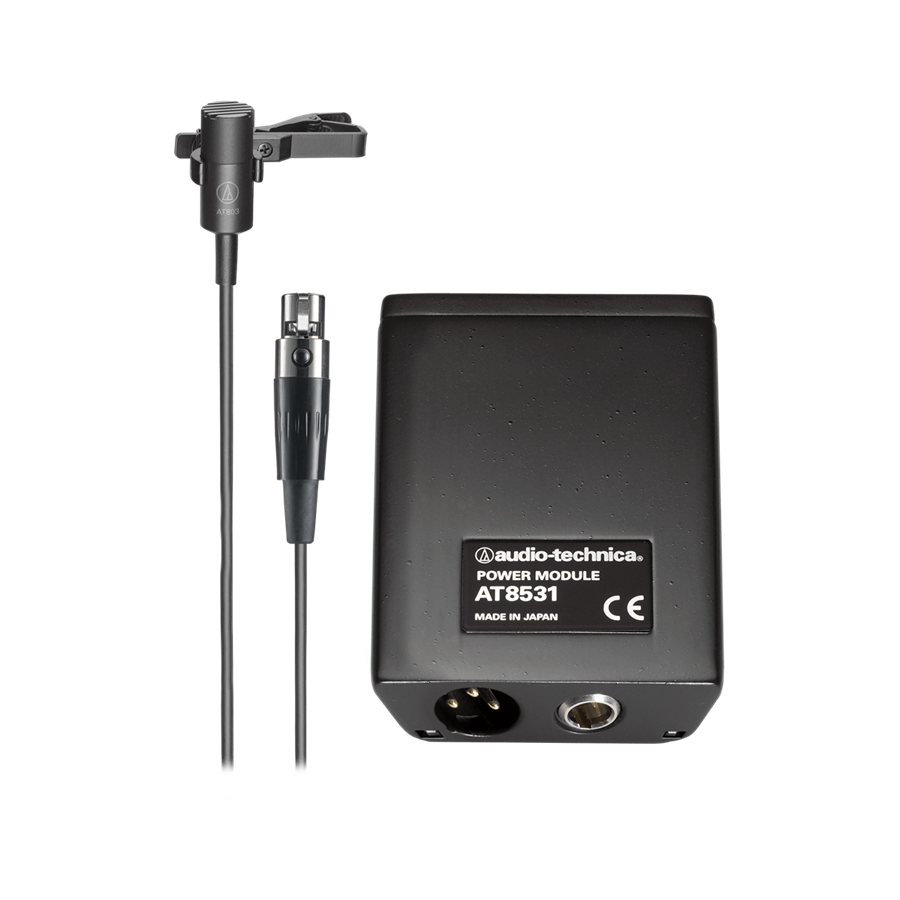

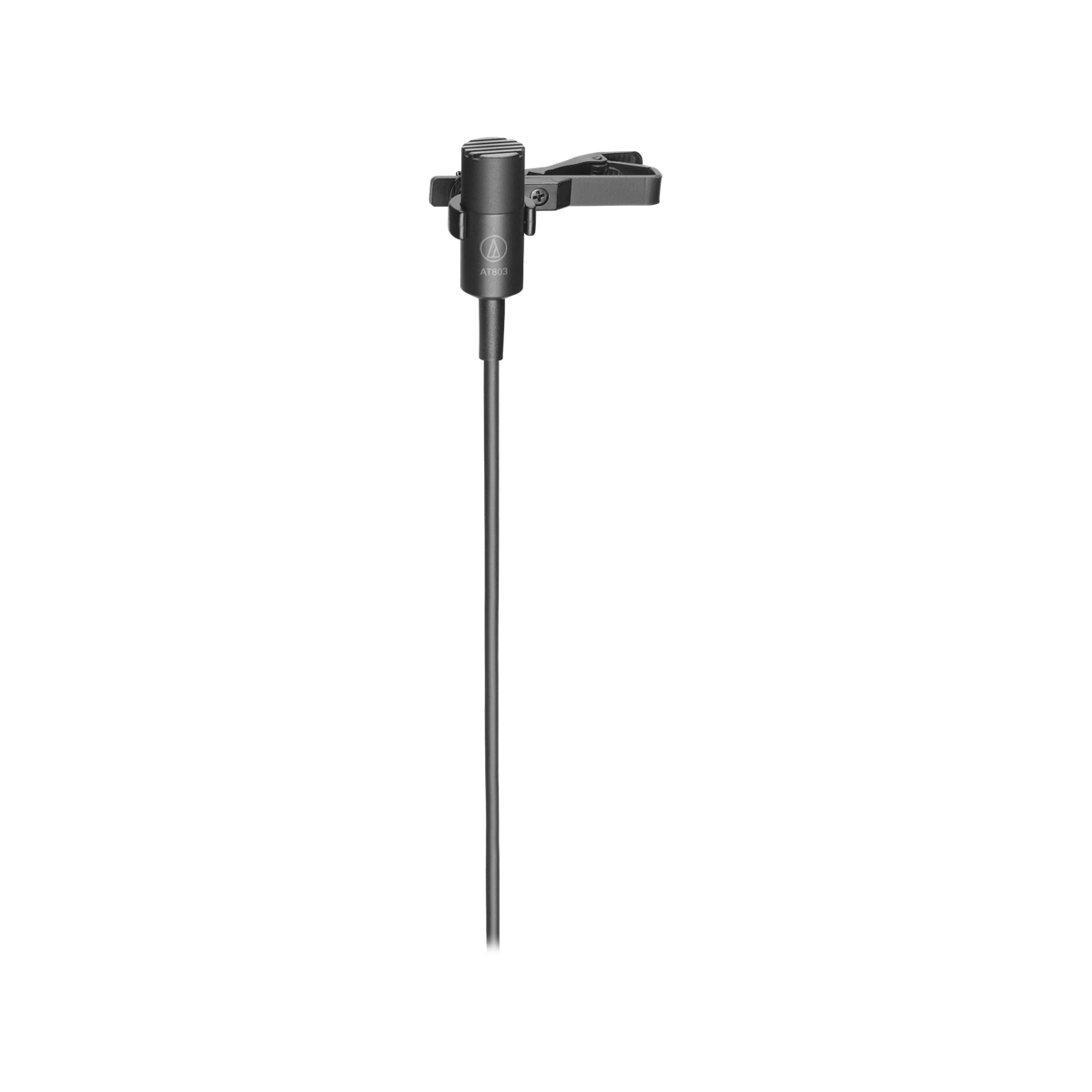

Audio Technica AT803
G&G Price: $148
Miniature Omnidirectional Lavalier Condenser Microphone.

Features:

Designed for clip-on lavalier and musical instrument use
Small size is ideal for applications requiring minimum visibility
Operates on battery or phantom power
6' (1.8 m) cable permanently attached between microphone and power module

Specifications:

Element: Condenser
Phantom Power Requirements: 9 - 52V, 2 mA typical
Polar Pattern: Omnidirectional
Battery Type: 1.5V AA/UM3
Frequency Response: 30 - 20,000 Hz
Battery Current/Life: 0.4 mA/1200 hours typical
Open Circuit Sensitivity: PHANTOM: -45 dB (5.6 mV) re 1V at 1 Pa, BATTERY: -46 dB (5.0 mV) re 1V at 1 Pa
Switch: Off/on-flat/on-roll-off
Impedance: PHANTOM: 200 ohms, BATTERY: 270 ohms
Low Frequency Roll-off: 80 Hz, 18 dB per octave
Maximum Input Sound Level: PHANTOM: 135 dB SPL, 1 kHz at 1% T.H.D., BATTERY: 121 dB SPL, 1 kHz at 1% T.H.D.
Weight: 0.09 oz (2.5 g)
Signal to Noise Ratio: 65 dB, 1 kHz at 1 Pa

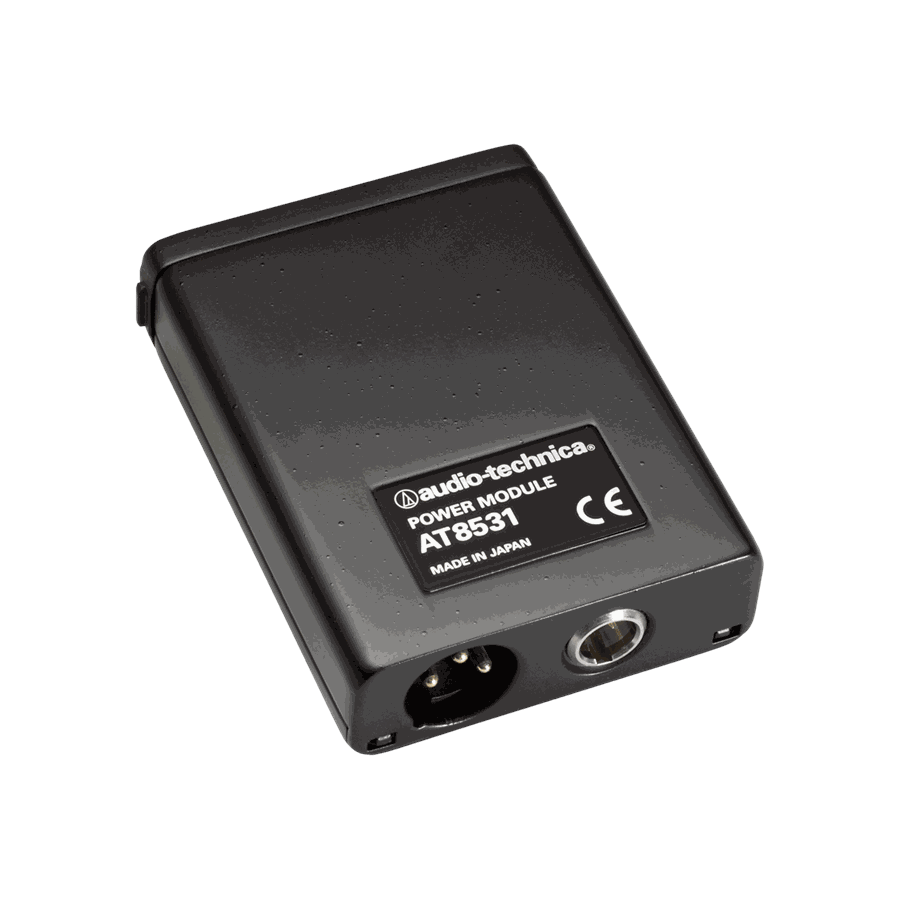

Power Module: In-line
Dynamic Range (Typical): PHANTOM: 106 dB, 1 kHz at Max. SPL, BATTERY: 92 dB, 1 kHz at Max. SPL
Output Connector: XLRM-type (power module)

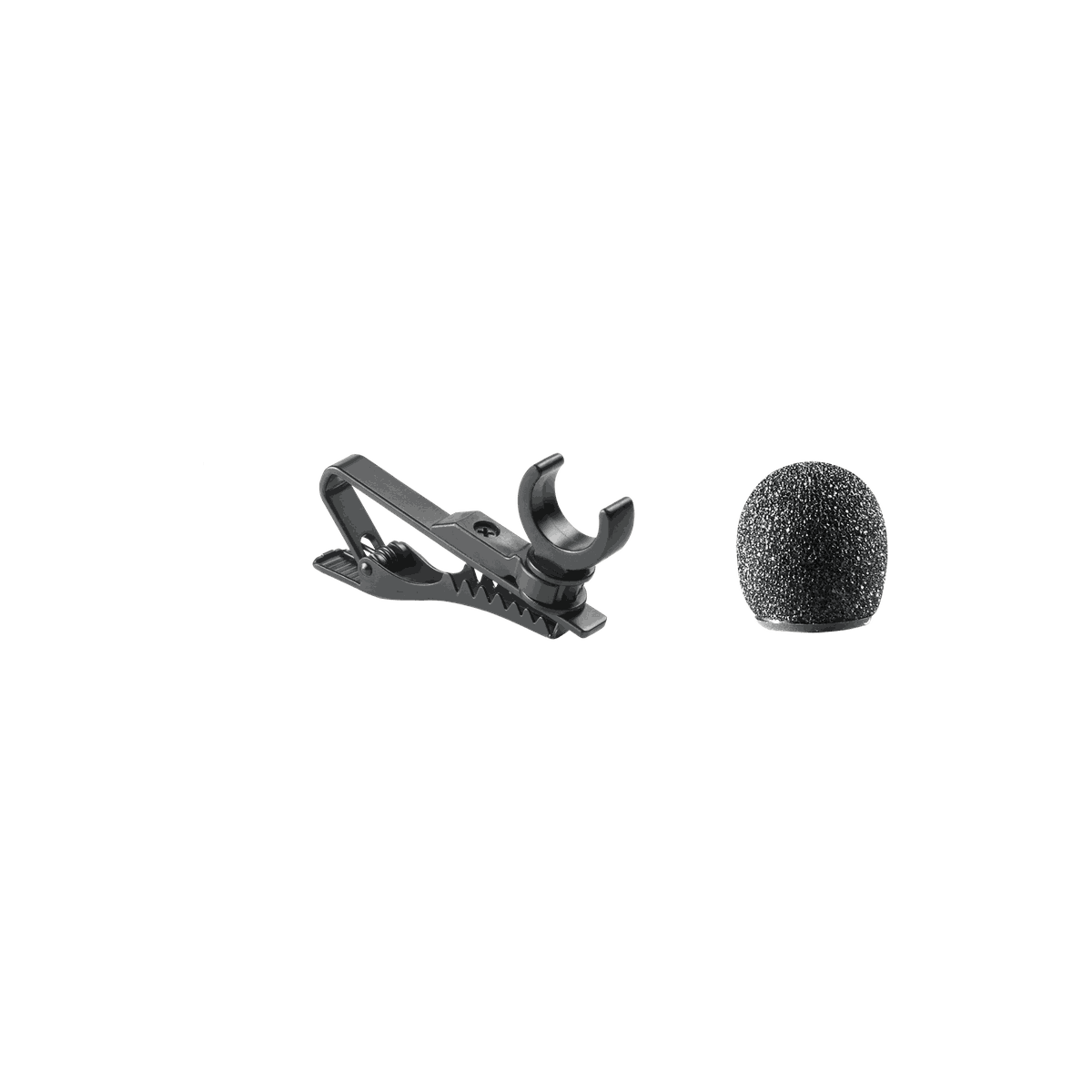

Accessories Furnished: AT8116 foam windscreen; AT8417 clothing clip; AT8530 power module (attached); battery; protective case
