Marshall Cameras

Broadcast and ProAV Cameras:

Model Image Description Pricing
CV420-30X-IP Marshall CV420-30X-IP 30X Zoom IP Camera
Ideal for use in networked A/V installations, the CV420-30X-IP offers the convenience of triple-stream (H.264/H.265/MJPEG) and HDMI outputs with audio embedding.
  • 8.5 Megapixel (1/2.5") 4K (UHD) sensor
  • 30X Optical Zoom (4.6~135mm) - 68° AOV
  • Up to 3840x2160, 1920x1080, and 1280x720p
  • Frame-rates: 59.94/50/29.97/25fps
  • Triple-stream IP (H.265/H.264/MJPEG) and HDMI 2.0 outputs
  • Ethernet I/O supports video, control, and PoE over a single cable
  • RS232 and 3.5mm audio input with passthrough
  • Visca over IP, Onvif, SRT compliant
  • Please call or
    Email us for pricing
    CV355-30X-IP Marshall CV355-30X-IP 30X Zoom IP Camera
    3G/HDSDI and HDMI simultaneous outputs with audio embedding.
  • 8.5 Megapixel (1/2.5") HD sensor
  • 30X Optical Zoom (4.6~135mm) - 68° AOV
  • Up to 1920x1080 and 1280x720p
  • Frame rates: 59.94/50/29.97/25fps
  • Triple-stream IP (H.265/H.264/MJPEG), 3G/HDSDI, and HDMI 2.0 simultaneous outputs
  • Ethernet I/O supports video, control, and PoE over a single cable
  • RS232 and 3.5mm audio input with passthrough
  • Visca over IP, Onvif, SRT compliant
  • Please call or
    Email us for pricing


    Miniature Cameras:

    Model Image Description Pricing
    CV503 CV503 Miniature Full-HD Camera (3G/HDSDI)
  • 3G/HDSDI output
  • 2.5 Megapixel (1/2.86") sensor (4:2:2 color)
  • Interchangeable M12 lens mount (includes stock 3.6mm lens (72°H. AOV))
  • Full-HD resolutions: 1920 x 1080p, 1920 x 1080i, and 1280 x 720p
  • Frame rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
  • Remote adjust through RS485 (Visca) or OSD menu joystick
  • Wide range of picture adjustment settings including paint (red/blue), white balance, gain control, pedestal (blacks), white clip, exposure, gamma, and more
  • Compatible with Marshall RCP Control Unit, p/n: CV-RCP-V2
  • Includes 12V power supply in box
  • Please call or
    Email us for pricing

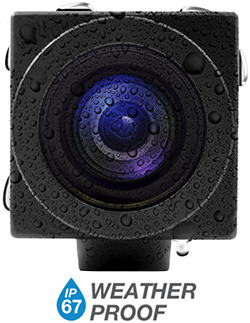

    CV503-WP CV503-WP All-Weather HD Miniature Camera (3G/HDSDI)
    The Marshall CV503-WP Weatherproof Miniature HD Camera is the professional solution for capturing crisp video in true color at outdoor broadcast events and AV applications where weather becomes a factor. The CV503-WP offers interchangeable lenses, remote adjustable settings, and protection from the elements in a compact IP67-rated housing.

  • Full-sized 3G/HDSDI (BNC) output
  • 2.5 Megapixel (1/2.86") sensor (4:2:2 color)
  • Interchangeable M12 lens mount includes stock 3.6mm lens (72°H. AOV)
  • IP67-rated weatherproof housing, wide lens cap for flexible wide shots
  • Full-HD resolutions: 1920 x 1080p, 1920 x 1080i and 1280 x 720p
  • Frame rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
  • Remote adjustable through RS485 (Visca) or OSD menu joystick
  • Wide range of picture adjustment settings including white balance, color, gain control, pedestal (blacks), white clip, exposure, gamma, and more
  • Please call or
    Email us for pricing
    CV506 CV506 Miniature Full-HD Camera (3G/HDSDI & HDMI)
  • 3G/HDSDI and HDMI simultaneous outputs
  • 2.5 Megapixel (1/2.86") sensor (4:2:2 color)
  • Interchangeable M12 lens mount (includes stock 3.6mm lens (72°H. AOV)
  • Full-HD resolutions: 1920 x 1080p, 1920 x 1080i, and 1280 x 720p
  • Frame rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
  • Remote adjust through RS485 (Visca) or OSD menu joystick
  • Wide range of picture adjustment settings including paint (red/blue), white balance, gain control, pedestal (blacks), white clip, exposure, gamma, and more
  • Compatible with Marshall RCP Control Unit, p/n: CV-RCP-V2
  • Includes 12V power supply in box
  • Please call or
    Email us for pricing
    CV-506-H12 CV-506-H12 - Miniature High-Speed Camera
    The Marshall CV506-H12 is built for capturing high-speed action for detailed, high-definition slow-motion video but also able to deliver 60fps for clear crisp fast paced action.
  • HDMI output
  • 2 Megapixel (1/2.8") Sony sensor (4:2:2)
  • Interchangeable M12 Prime Lenses (3.6mm, 72° H. AOV)
  • HD (Progressive): 1080p / 720p @ 120, 100, 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
  • HD (Interlaced): 1920 x 1080i @ 60, 59.94, 50 fps
  • TRS stereo audio inputs (mic & line level)
  • Please call or
    Email us for pricing
    CV565-MGB CV565-MGB - Miniature GENLOCK POV Camera with interchangeable 3.7mm HD Lens
    Marshall Electronics next generation Miniature GENLOCK CV565-MGB PRO-Series Camera adds the convenience of Signal Sync at camera level to ensure seamless switch transitions between cameras on location.
  • 2.5 Megapixel 1/3-inch CMOS Sensor
  • 3.7mm Megapixel M12 Prime Lens installed (interchangeable)
  • GENLOCK Tri-Level Sync at camera level to ensure clean switching between cameras
  • Sync in 3GSDI (1080p59.94/50/60fps) as well as HDSDI (1080i59.94/50/60fps and 1280x720p59.94/50/60fps)
  • Supports resolutions of 1920x1080p, 1920x1080i, and 1280x720p
  • Supports frame rates of 59.94, 50, 60, 29.97, 25, 30fps
  • Camera will adjust to Resolution & Framerate of Sync source
  • 3G/HD-SDI (BNC) & HDMI (full size v1.3) built into rear panel
  • Hirose-style (I/O) connector contains: Sync-IN, Sync-OUT, RS-485 connect, 12V power connector & TRS Mic/Line level (selectable) input with 2.5V power
  • Captures sharp & vivid color images at 0.2lux (low light sensitive)
  • New WDR function adjusts automatically to bright and dark areas in FOV
  • Audio Mic/Line level audio embedding w/ 2.5V power supplied
  • OSD Menu Joystick on cable and RS-485 connectable (Visca/Pelco)
  • Free downloadable software to control camera settings via RS485 (requires USB to RS485 converter)
  • Stepped (Red/Blue) Gain Control, Gamma, Shutter, Brightness
  • Compatible with Marshall RCP Control Unit, p/n: CV-RCP-V2
  • Please call or
    Email us for pricing
    CV225-MB CV225-MB - Lipstick IP67 HD Camera (3G/HD-SDI) + Remote Adjust via RS485 (Visca)
    The CV225 lipstick camera from Marshall utilizes the latest sensor technology in a compact and sleek weatherproof design while maintaining broadcast standards.
  • END-OF-LIFE PRODUCT - Will be discontinued soon- call us for availability
  • 2.5 Megapixel 1/3-inch CMOS Sensor
  • 3.7mm Megapixel M12 Prime Lens installed (interchangeable)
  • GENLOCK Tri-Level Sync at camera level to ensure clean switching between cameras
  • Sync in 3GSDI (1080p59.94/50/60fps) as well as HDSDI (1080i59.94/50/60fps and 1280x720p59.94/50/60fps)
  • Supports resolutions of 1920x1080p, 1920x1080i, and 1280x720p
  • Supports frame rates of 59.94, 50, 60, 29.97, 25, 30fps
  • Camera will adjust to Resolution & Framerate of Sync source
  • 3G/HD-SDI (BNC) & HDMI (full size v1.3) built into rear panel
  • Hirose-style (I/O) connector contains: Sync-IN, Sync-OUT, RS-485 connect, 12V power connector & TRS Mic/Line level (selectable) input with 2.5V power
  • Captures sharp & vivid color images at 0.2lux (low light sensitive)
  • New WDR function adjusts automatically to bright and dark areas in FOV
  • Audio Mic/Line level audio embedding w/ 2.5V power supplied
  • OSD Menu Joystick on cable and RS-485 connectable (Visca/Pelco)
  • Free downloadable software to control camera settings via RS485 (requires USB to RS485 converter)
  • Stepped (Red/Blue) Gain Control, Gamma, Shutter, Brightness
  • Compatible with Marshall RCP Control Unit, p/n: CV-RCP-V2
  • Please call or
    Email us for pricing
    CV225-M CV225-M - Lipstick IP67 HD Camera (3G/HD-SDI) + Remote Adjust via RS485 (Visca)
    Same as CV225-MB except:
  • 1080i60/50, 1080p60/50/30/25, 720p60/50/30/25 fps
  • END-OF-LIFE PRODUCT - Will be discontinued soon- call us for availability
  • Please call or
    Email us for pricing


    M12 Mount Lens options for CV502, CV503, CV505, CV506, CV565, CV225 cameras listed above

    (longer lens cap needed for 5mm+ lenses on CV502-WP):


    Lens Notes:
    1) Horizontal Angle-of-View (AOV) in degrees are approximate and vary according to exact sensor size and design.
    2) If camera model contains IP67 weatherproof cap, there may be some limitation as to which lenses will allow cap to fit back on camera.
    Model Image Description Pricing

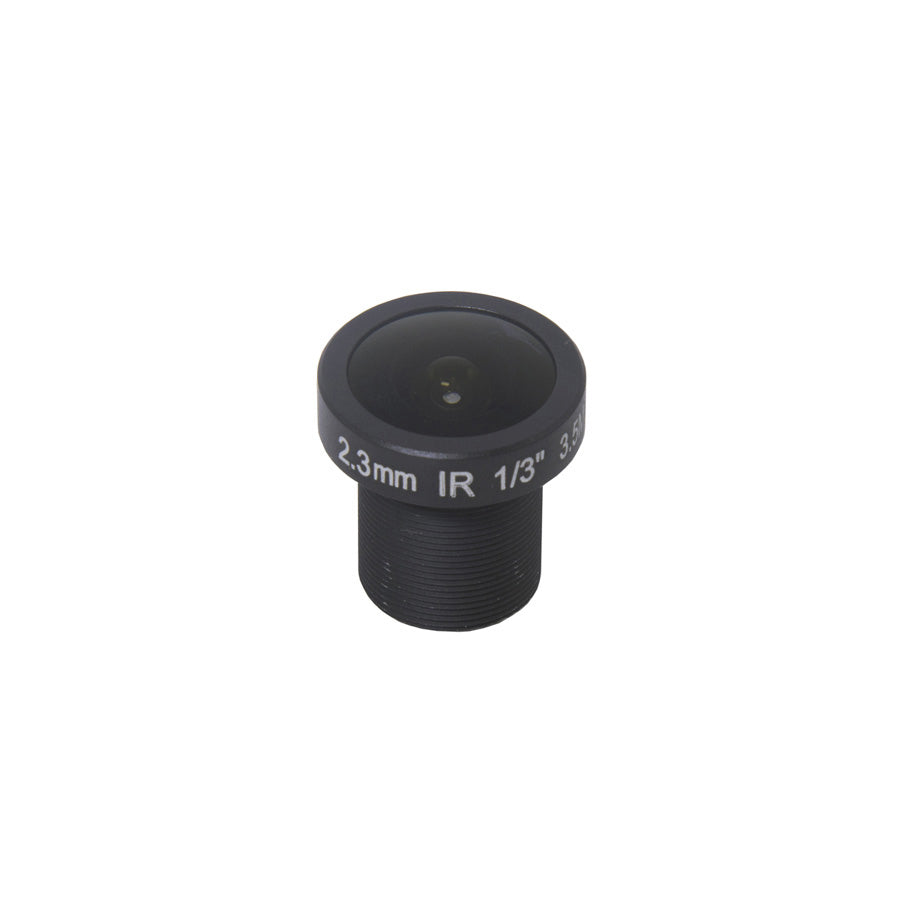

    CV-4702.3-3MP 2.3mm, F2.2 3MP M12 lens; Horiz AOV = 126°
    $39.99
    FREE UPS SHIPPING
    w/Camera Purchase


    CV-4702.8-3MP-IR 2.8mm F2.6 3MP M12 Lens, Horiz AOV = 100°, IR
    $29.99
    FREE UPS SHIPPING
    w/Camera Purchase

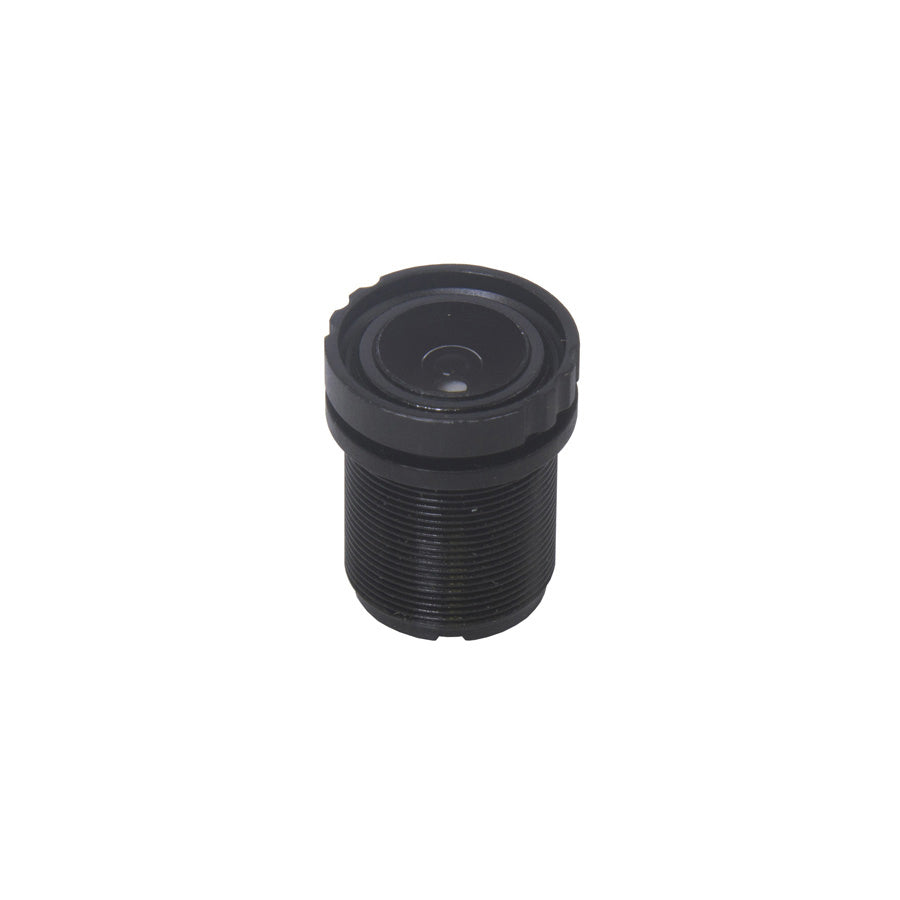

    CV-4703.6-3MP 3.6mm, F2.0 3MP M12 lens (stock); Horiz AOV = 72°
    $39.99
    FREE UPS SHIPPING
    w/Camera Purchase

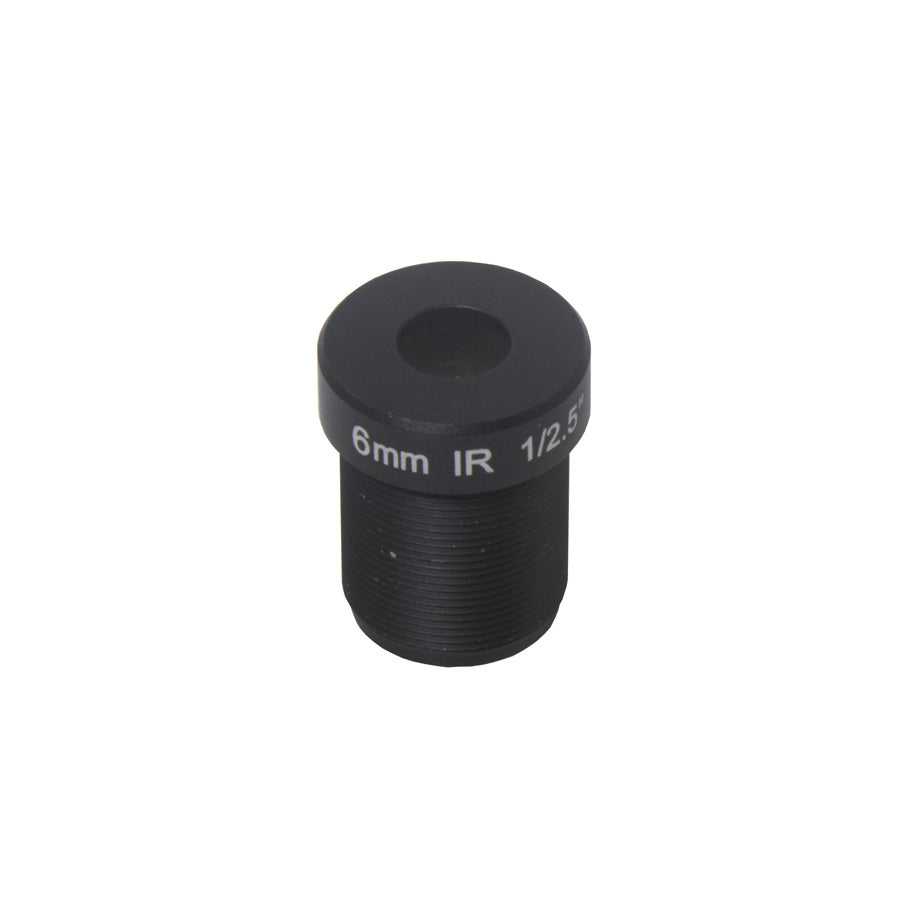

    CV-4706-3MP-IR 6.0mm, F2.4 3MP M12 lens; Horiz AOV = 48°, IR
    $29.99
    FREE UPS SHIPPING
    w/Camera Purchase

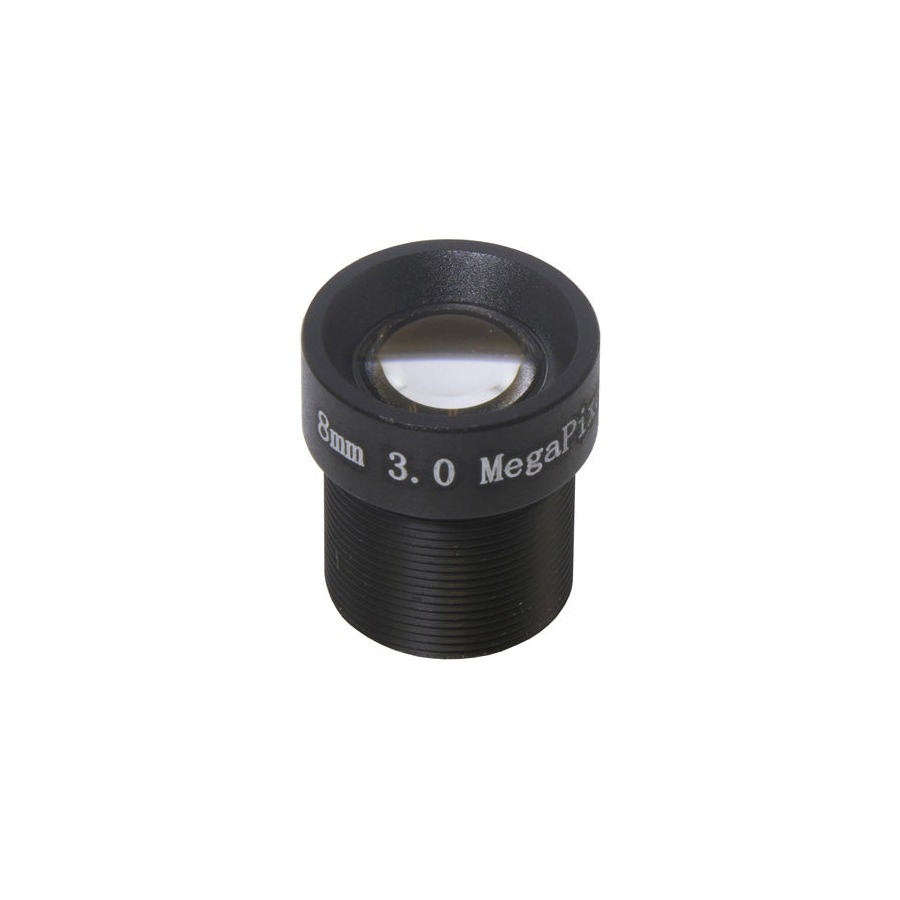

    CV-4708.0-3MP 8.0mm, F1.8 3MP M12 lens; Horiz AOV = 40°
    $39.99
    FREE UPS SHIPPING
    w/Camera Purchase

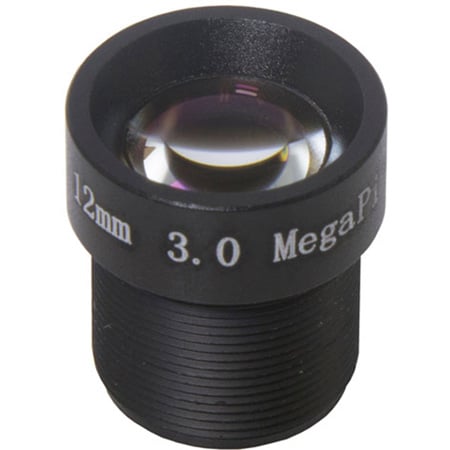

    CV-4712.0-3MP 12.0mm, F1.8 3MP M12 lens; Horiz AOV = 33°
    $39.99
    FREE UPS SHIPPING
    w/Camera Purchase

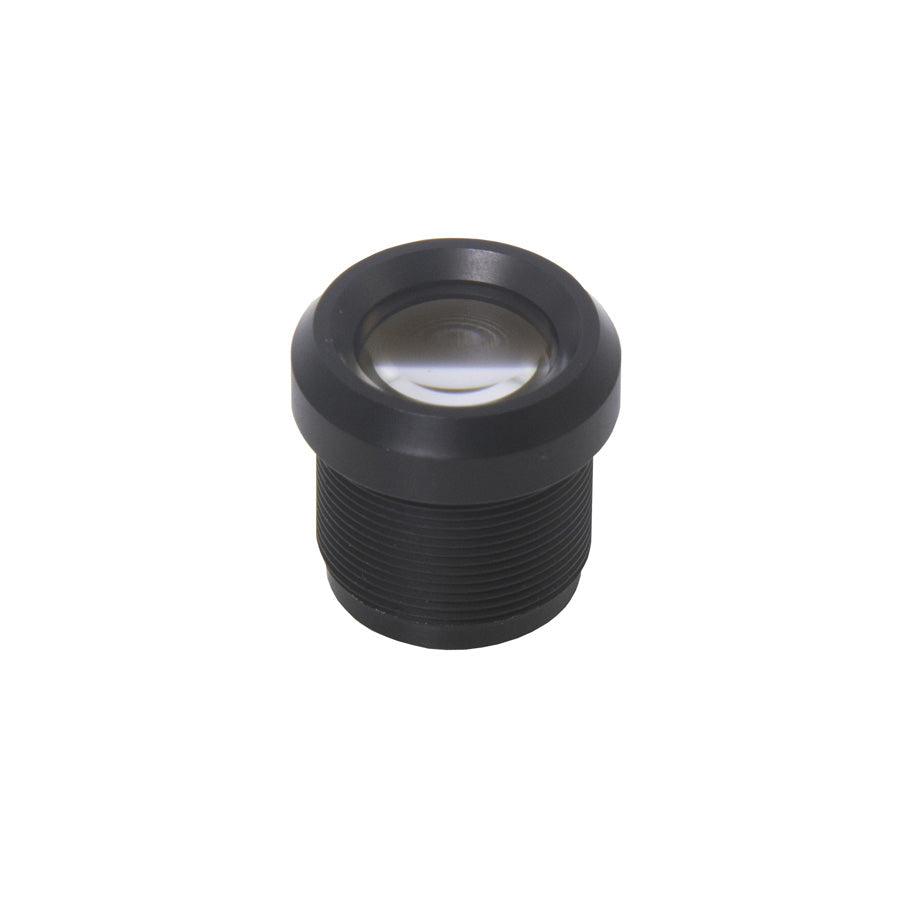

    CV-4716.0-2MP 16.0mm, F1.8 2MP M12 lens; Horiz AOV = 25°
    $39.99
    FREE UPS SHIPPING
    w/Camera Purchase


    V-553.9-5MP-VIS-IR M12 3.9mm F2.0 5MP M12 Lens - 80° (1/3"), 96° (1/2.5"), 125° (1/1.7")
    $59.99
    FREE UPS SHIPPING

    V-555.0-5MP-VIS-IR M12 5.0mm F2.0 5MP M12 Lens - 63° (1/3"), 75.5° (1/2.5"), 98° (1/1.7")
    $59.99
    FREE UPS SHIPPING

    V-557.6-5MP-VIS-IR M12 7.6mm F2.0 5MP M12 Lens 40.4° (1/3"), 48° (1/2.5"), 60° (1/1.7")
    $59.99
    FREE UPS SHIPPING

    CV-2812-3MP 2.8~12mm, F1.4 3MP Varifocal M12 lens; Horiz AOV = 108~3°
    $19.99
    FREE UPS SHIPPING
    w/$100 Purchase


    CV-0622-5MP 6.0~22mm, F1.6 5MP Varifocal M12 lens; Horiz AOV = 46~16°
    $29.99
    FREE UPS SHIPPING
    w/$100 Purchase




    Accessories:

    Model Image Description Pricing
    CV-RCP-V2 Remote adjust, paint, and match Marshall Cameras without ever having to leave the convenience of a production room or broadcast truck. Match mini POV cameras without an OSD Menu to provide a seamless workflow and next level convenience on multi-view camera displays.
  • Seven cameras are selectable from ALL screen menus with intuitive navigation layout.
  • Global or individual camera adjustment capability without OSD (On-screen Display) Menu appearing on video stream.
  • Adjust Red/Blue, Pedestal (Black-levels), Brightness (AE Offset), Gain, Gamma, Iris, Shutter, Saturation, Hue, Optical/Digital Zoom, Pan-Tilt, Focus, and more.
  • Rugged machined aluminum enclosure provides durability while a larger 5-inch screen provides easier access to digital buttons.
  • Easy access USB port for field up-gradable firmware and memory saves using USB thumb drives (sold separately).
  • Red and Blue adjustment follows every screen menu with optional Favorites Menu to save important controls to specific events for easy access.
  • Set up multiple cameras with one global preset or multiple presets that are savable on-board the RCP unit or external USB memory sticks.
  • Low power consumption requires 12V power at less than 12W (AC or battery packs).
  • Easily convert to fiber using common fiber media converters for much longer distances.
  • Please call or
    Email us for pricing
    CV-RCP-V2-RMK Top Rack Mount Bracket for CV-RCP-V2 RCP
    (mounts for CCU control board)
    $79.99
    FREE UPS SHIPPING
    w/CV-RCP-V2 Purchase


    CVM-12 CVM-12 Heavy Duty C-Clamp (1/4"-20 & 3/8" female)
  • Use with Marshall's CVM-7, CVM-11, or CVM-22 or any other compatible products
  • Attaches to tables, counters, pipes, etc.
  • $39.99
    FREE UPS SHIPPING
    w/$100 Purchase


    CVM-7 CVM-7 7" Articulating Locking Arm
  • Durable construction, single point locking, 1/4"-20 male to 1/4"-20 male, 1/4"-20 female to 1/4"-20 male, adaptable position arm for each clamp/mount/grip, and shoe mount adapter
  • Use with CVM-10, CVM-12, or CVM-20 or any other compatible products.
  • $69.99
    FREE UPS SHIPPING

    CVM-11 CVM-11 11" Articulating Locking Arm
  • Durable construction, single point locking, 11/4"-20 male to 1/4"-20 male, 1/4"-20 female to 1/4"-20 male, adaptable position arm for each clamp/mount/grip, and shoe mount adapter
  • Use with CVM-10, CVM-12, or CVM-20 or any other compatible products.
  • $74.99
    FREE UPS SHIPPING

    CVM-13 CVM-13 10-inch Gooseneck Arm Mount, 360° Versatility
  • Flexible Gooseneck contains a 1/4"-20 (male) to a 1/4"-20 (male), perfect for mounting mini POV cameras.
  • Usable with CVM-12 C-Clamp, CVM-15 Wall Mount Plate, or other 1/4"-20 setups.
  • $19.99
    FREE UPS SHIPPING
    w/$100 Purchase


    CVM-20 CVM-20 Heavy Duty Spring Clamp (1/4"-20)
  • Durable heavy duty steel, swivel head, spring clamp and pole adapter.
  • Attach to tables, counters, car windows, pipes.
  • $49.99
    FREE UPS SHIPPING
    w/$100 Purchase
