Yamaha DSR Series Powered Loudspeaker

DSR is the high-output end of Yamaha's powered PA range. The three full-range cabinets are two-way bi-amplified bass-reflex designs sharing one 1,500 W amplifier package split 1,020 W to the low driver and 480 W to a 2-inch titanium-diaphragm compression driver, with FIR-X linear-phase crossover filtering so the transition stays phase-coherent off axis.

Maximum output runs 134 dB SPL on the DSR112, 136 dB on the DSR115, and 138 dB on the dual-15 DSR215, all with 90 x 60 degree nominal coverage. The DSR118W subwoofer takes the same amplifier platform down to an 18-inch driver at 1,020 W with a 40 Hz low corner. Every cabinet has balanced XLR and TRS inputs with a paralleled XLR output, D-CONTOUR dynamic processing, and 100 W power consumption; the tops add three M10 flying points and a 35 mm pole socket.

Type	Bi-amplified powered loudspeaker, bass-reflex (DSR118W powered subwoofer)

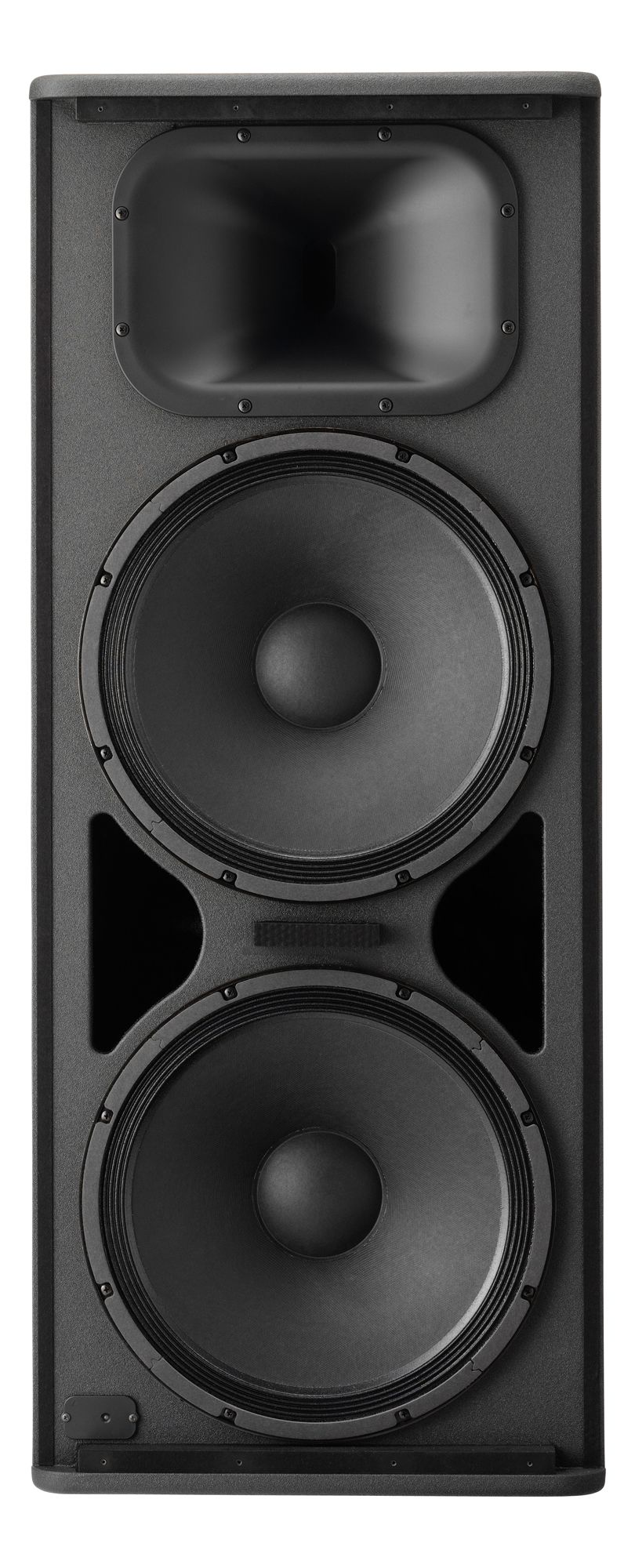

Drivers	DSR112 12" / DSR115 15" / DSR215 2x 15" / DSR118W 18" cone; 2" titanium compression driver on tops
Output Power	Tops 1,500 W (LF 1,020 W, HF 480 W); DSR118W 1,020 W
Maximum Output Level	DSR112 134 dB / DSR115 136 dB / DSR215 138 dB / DSR118W 132 dB SPL (1 m, on axis)
Frequency Range (-10 dB)	DSR112 55 Hz - 20 kHz / DSR115 and DSR215 45 Hz - 20 kHz / DSR118W 40 Hz - 130 Hz
Nominal Coverage	90 degrees H x 60 degrees V (full-range models)
Crossover	FIR-X tuning, linear phase FIR filter

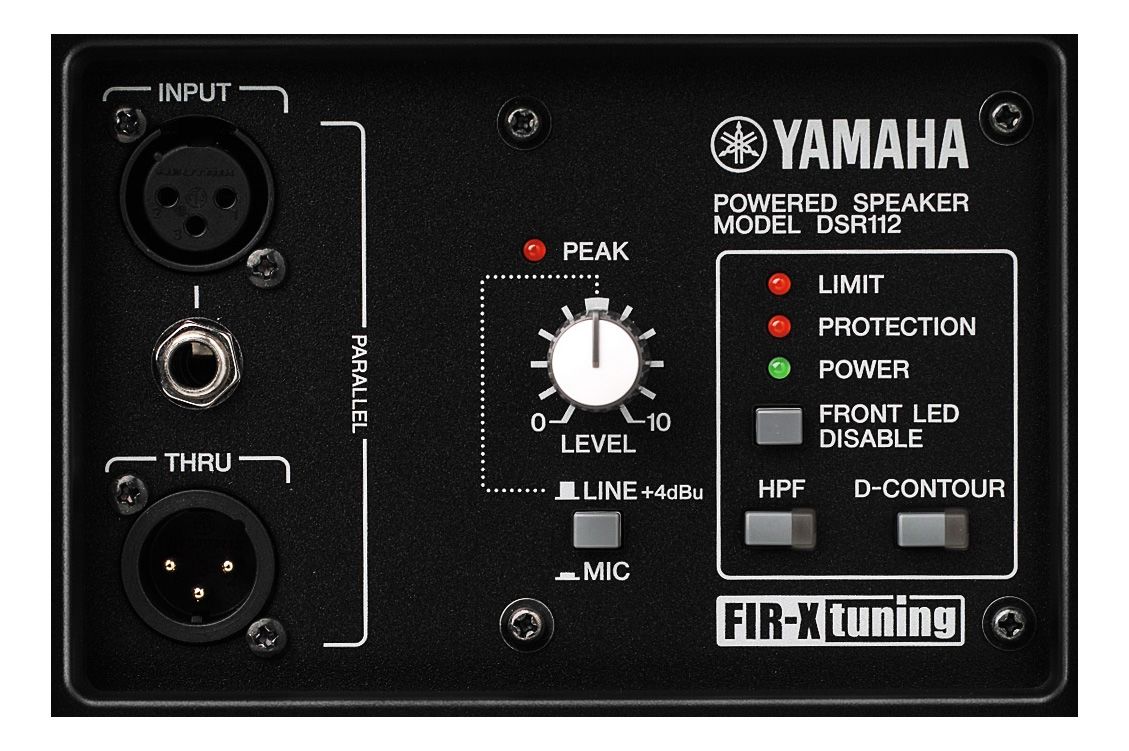

I/O Connectors	Input XLR-3-31 and TRS phone jack (balanced), output XLR-3-32 paralleled with input
Processing	D-CONTOUR dynamic contour
