Williams AV Body-pack charger, 12 bay, with case

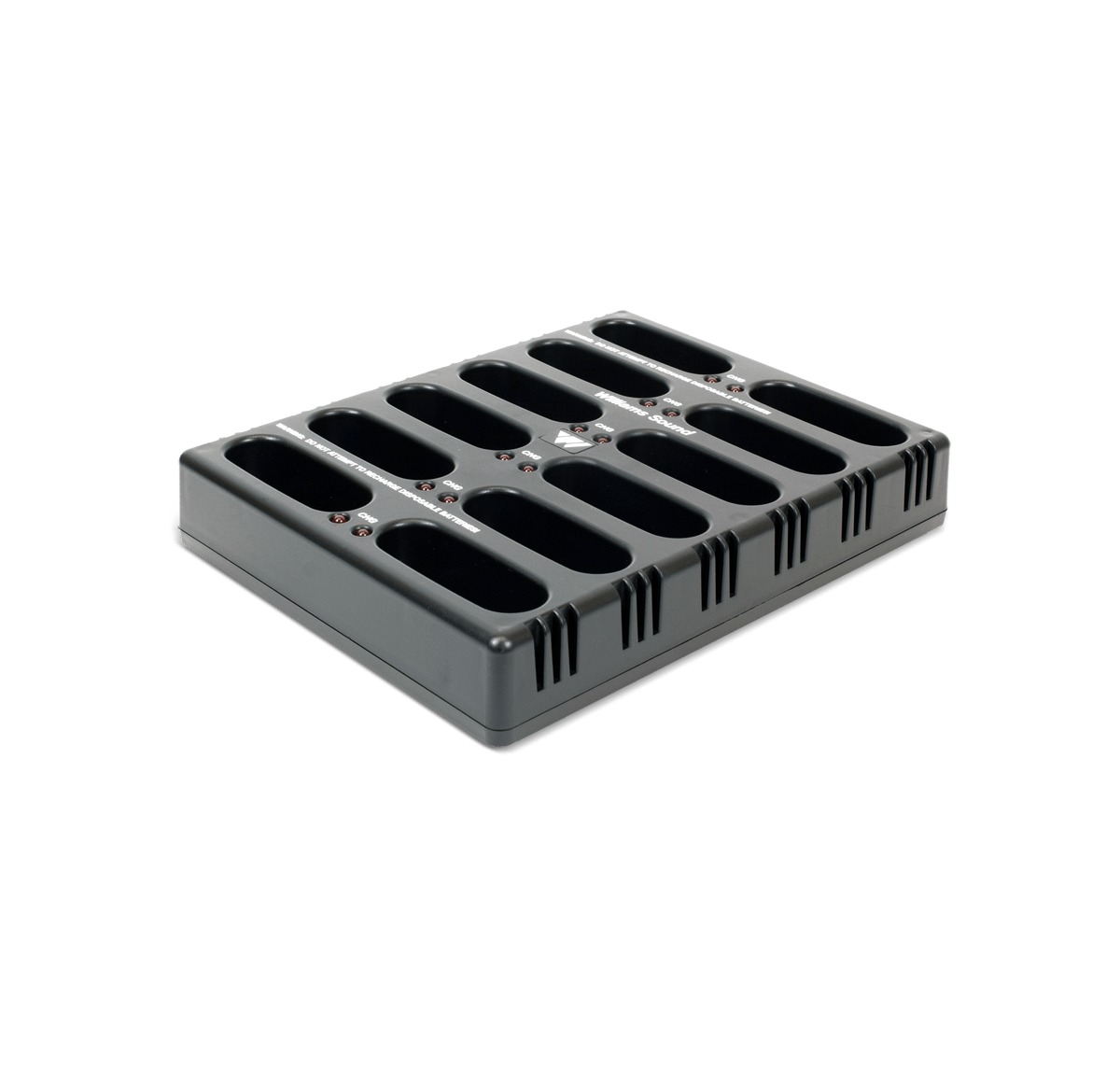

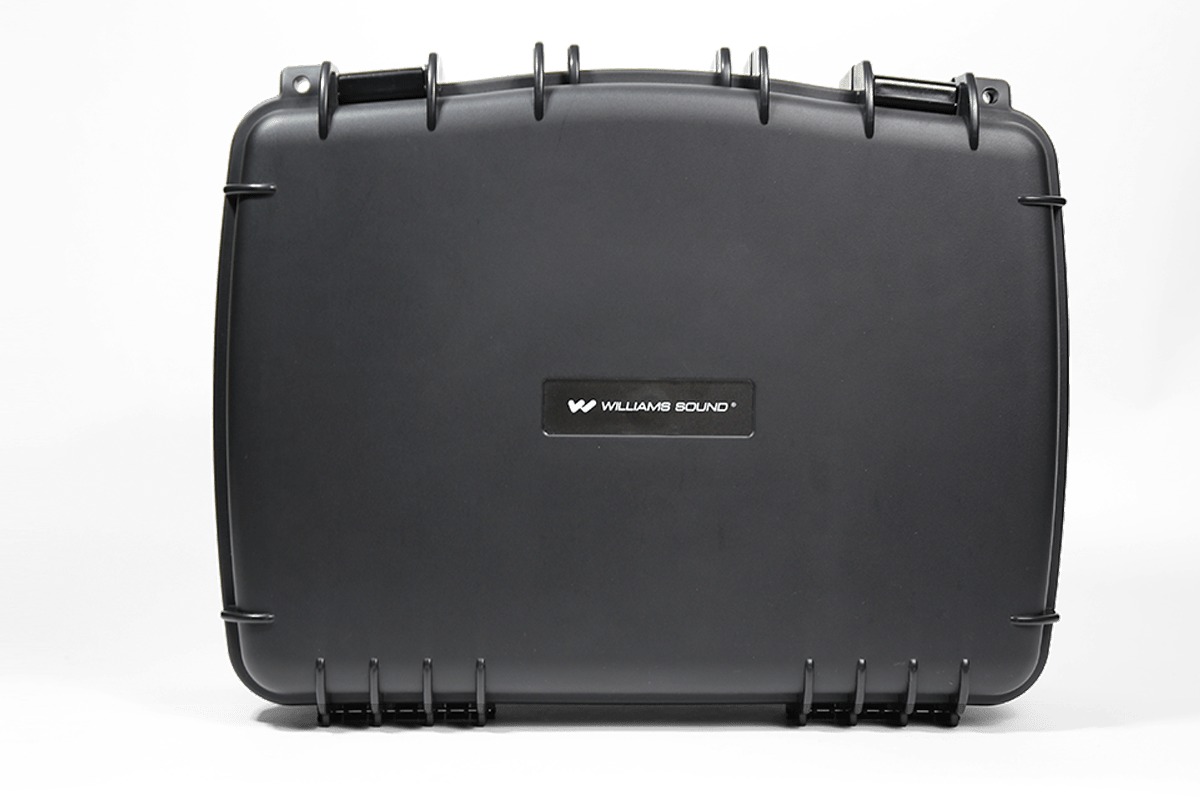

The Williams AV CHG 3512 PRO. Charger for body-packs, 12 bay, with case. For up to 12 receivers or transmitters, switching 100-240 VAC power supply. (For use in US).

18-1/4" x 7" x 14-1/8", 10.7 lbs. Includes Power Supply. For use with: PLR BP1 Loop receiver PPA R37 FM receiver PPA R38 FM receiver PPA T46 FM transmitter WIR RX22-4 Infrared receiver Ordered as part number CHG 3512 PRO. Published dimensions, power and warranty are in the specifications tab.

Part NumberCHG 3512 PRO
CategoryAccessories, Chargers / Power Supplies / Batteries, ProAV
Size:18"L x 14"W x 6.75"H (45.7 cm L x 35.5 cm W x 17.1 cm H)
Weight:10.7 lbs (4.85 kg)
Color:Black ABS
Power Supply Input:90 - 240 VAC input

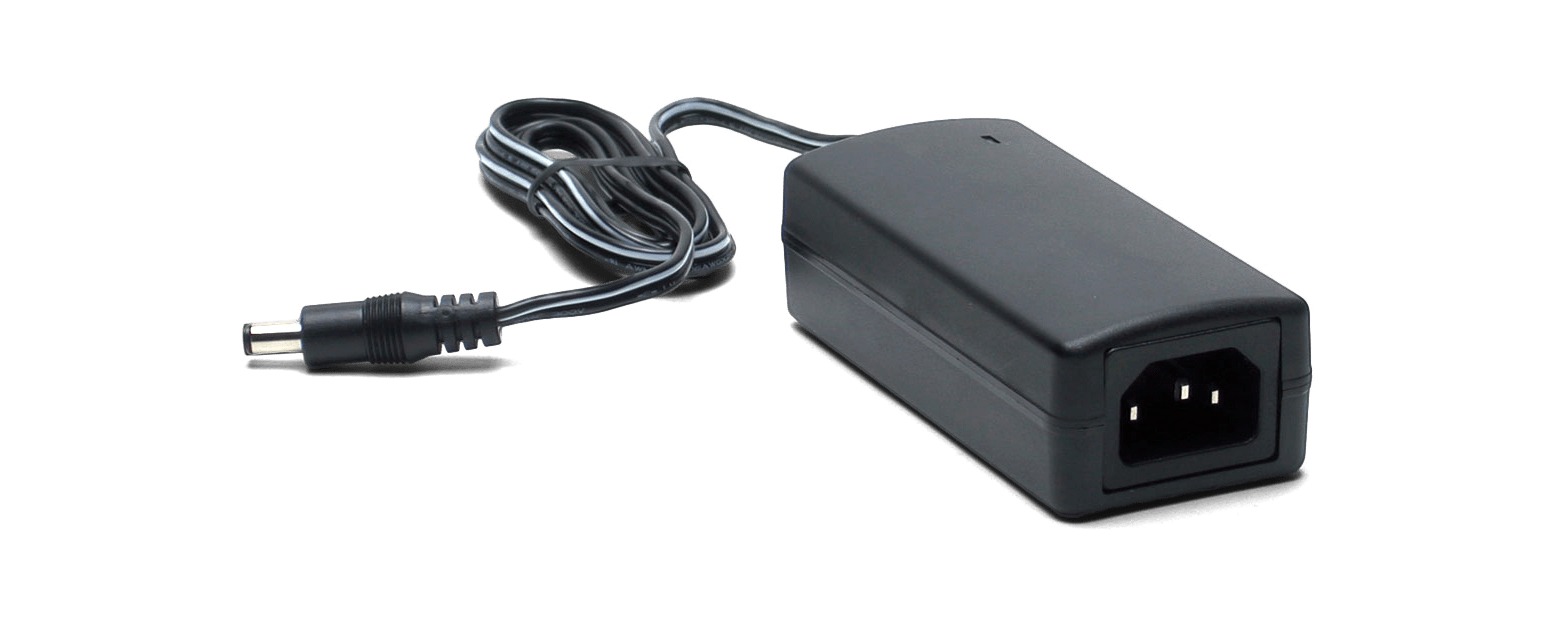

Power Supply:TFP 037 Switching AC adapter, 5 VDC - 4A output
Charging Rate:16 Hour Charge: 140 mA Pulse/Maintain: 140 mA
WarrantyLimited Lifetime
Weight10.7 lbs
Connector1/4"
Capacity12 bay
BrandWilliams AV
