Whirlwind pcDIQ Four-Channel Rack Direct Box

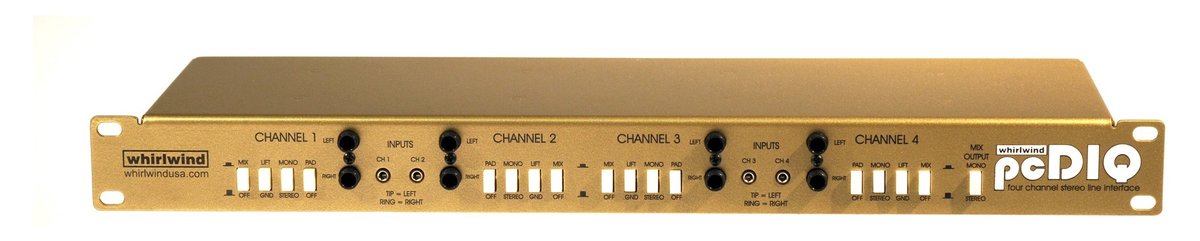

The pcDIQ is the rack mount, four channel version of the pcDI. Each channel takes stereo unbalanced line level in on gold plated left and right RCA jacks or a 3.5 mm stereo jack, plus a left-only 1/4 inch tip-sleeve jack so a channel can work as an ordinary direct box, and converts it to balanced mic level on left and right XLRs at the rear.

Every output is transformer isolated. A stereo mix bus lets any combination of the four channels be summed to a single stereo mic level balanced output, and per channel switches cover PAD, MONO, GROUND LIFT and MIX assignment. A separate switch converts the mix bus output from stereo to mono, so a channel can run mono while the bus stays stereo.

Type	Four-channel rack mount stereo direct box
Format	Single rack space
Inputs per channel	Left/right RCA, 3.5 mm stereo, 1/4 in. TS (left only)

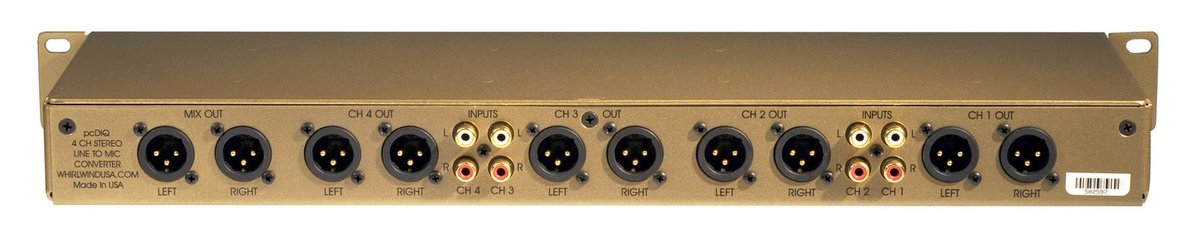

Outputs per channel	Transformer isolated left and right XLR, rear panel
Mix bus	Stereo mic level balanced, any combination of the four channels
Per channel switches	Pad, mono, ground lift, mix assign
Mix bus switch	Stereo or mono output
Output isolation	Transformer isolated on every output
