Whirlwind Patchmaster60 Patch Panel

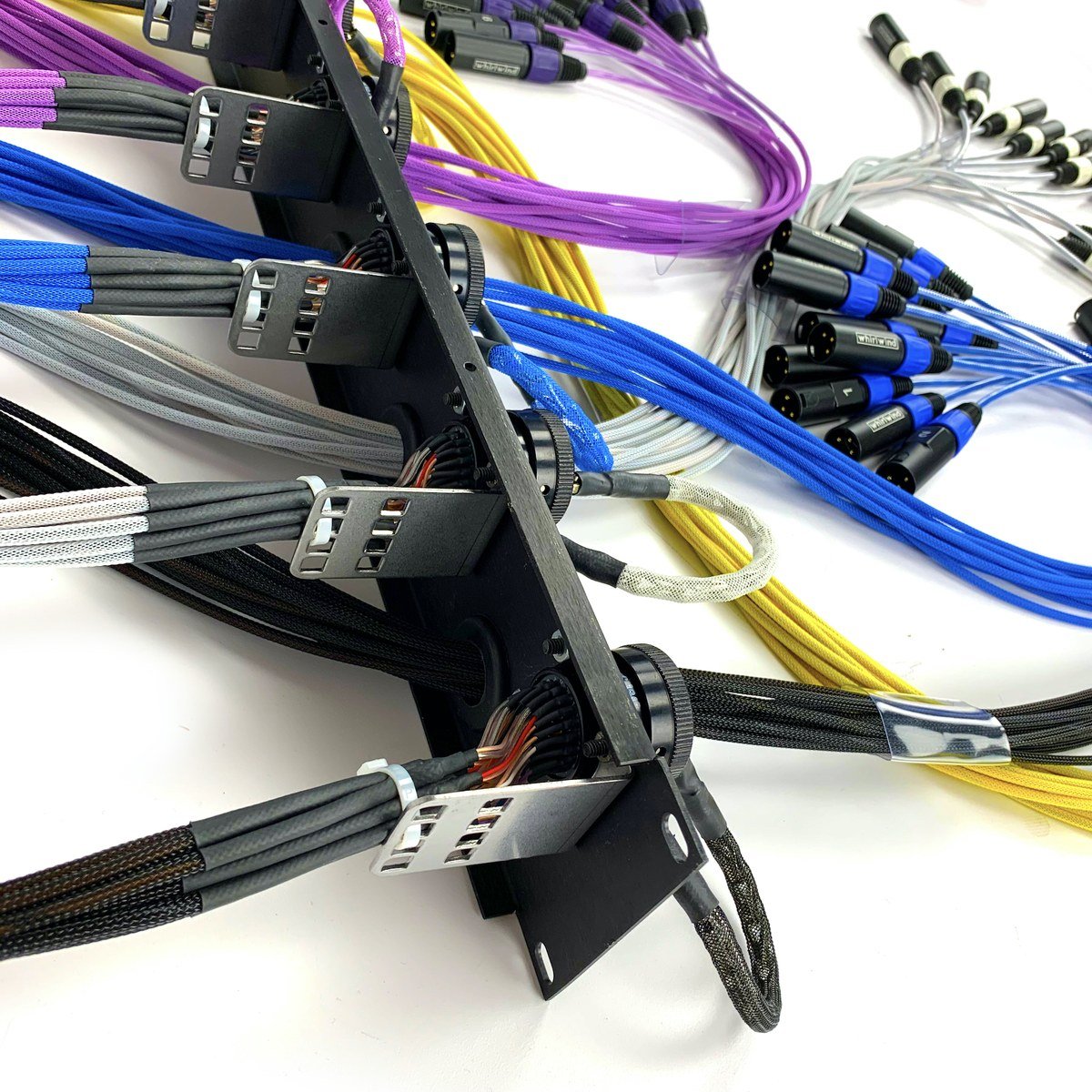

The PatchMaster is Whirlwind's answer to the multipin patch problem: five W1 multipin inputs connected directly to colour-coded tails, so a stage plot can be repatched by colour instead of by counting pairs in a dark wing.

Direct connection means there is nothing active in the path to fail or to colour the signal. The PATCHMASTER60-2 is the alternative build in the same family.
