Whirlwind HATTXL Table Top Mono Headphone Control Box
The HATTXL is the mono balanced version of the HATT: the same active table top headphone amplifier, but fed on XLR instead of TRS, which is what a broadcast or interpretation feed usually arrives on.

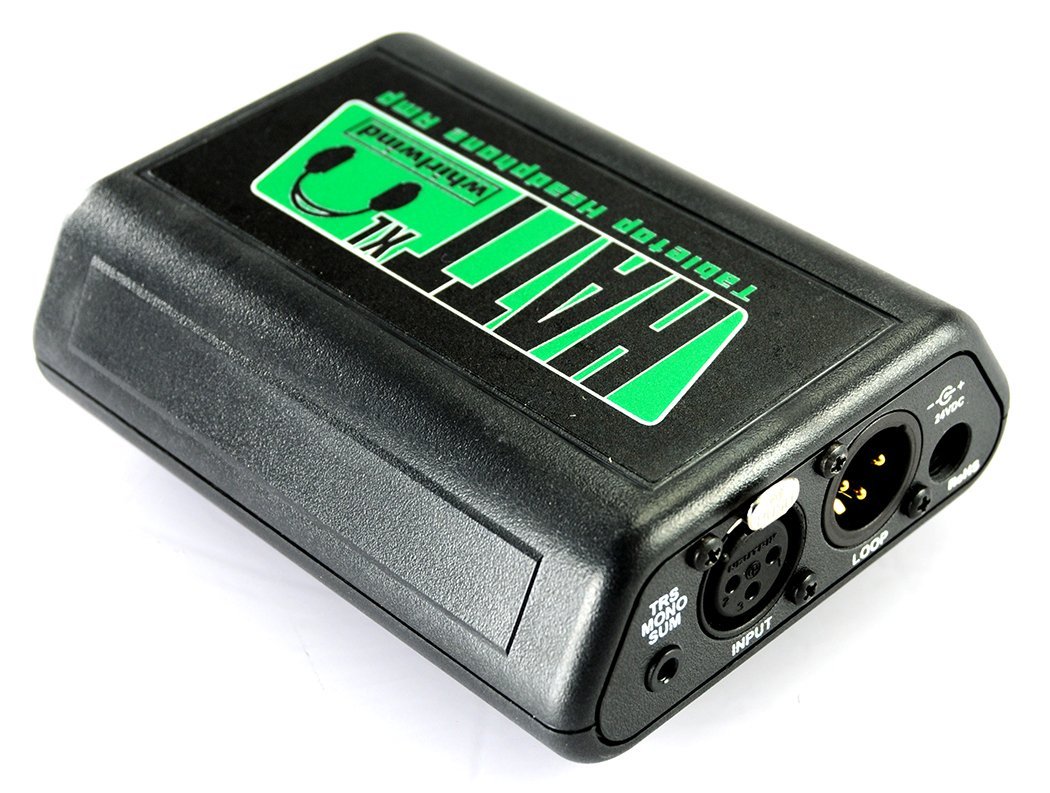

It drives headphones from 8 to 600 ohms with low distortion and wide response. The front panel has 1/4 inch and 1/8 inch headphone jacks and the volume control; the rear has two XLR jacks and one 1/8 inch TRS jack for input and loop through. It runs from the included 24 VDC adapter.
| Type | Active mono balanced headphone amplifier and control box |
|---|---|
| Mounting | Table top |
| Headphone impedance range | 8 to 600 ohms |
| Front panel | 1/4 in. and 1/8 in. headphone jacks, volume control |
| Rear panel | Two XLR and one 1/8 in. TRS input / through jacks |
| Power | 24 VDC adapter included |
