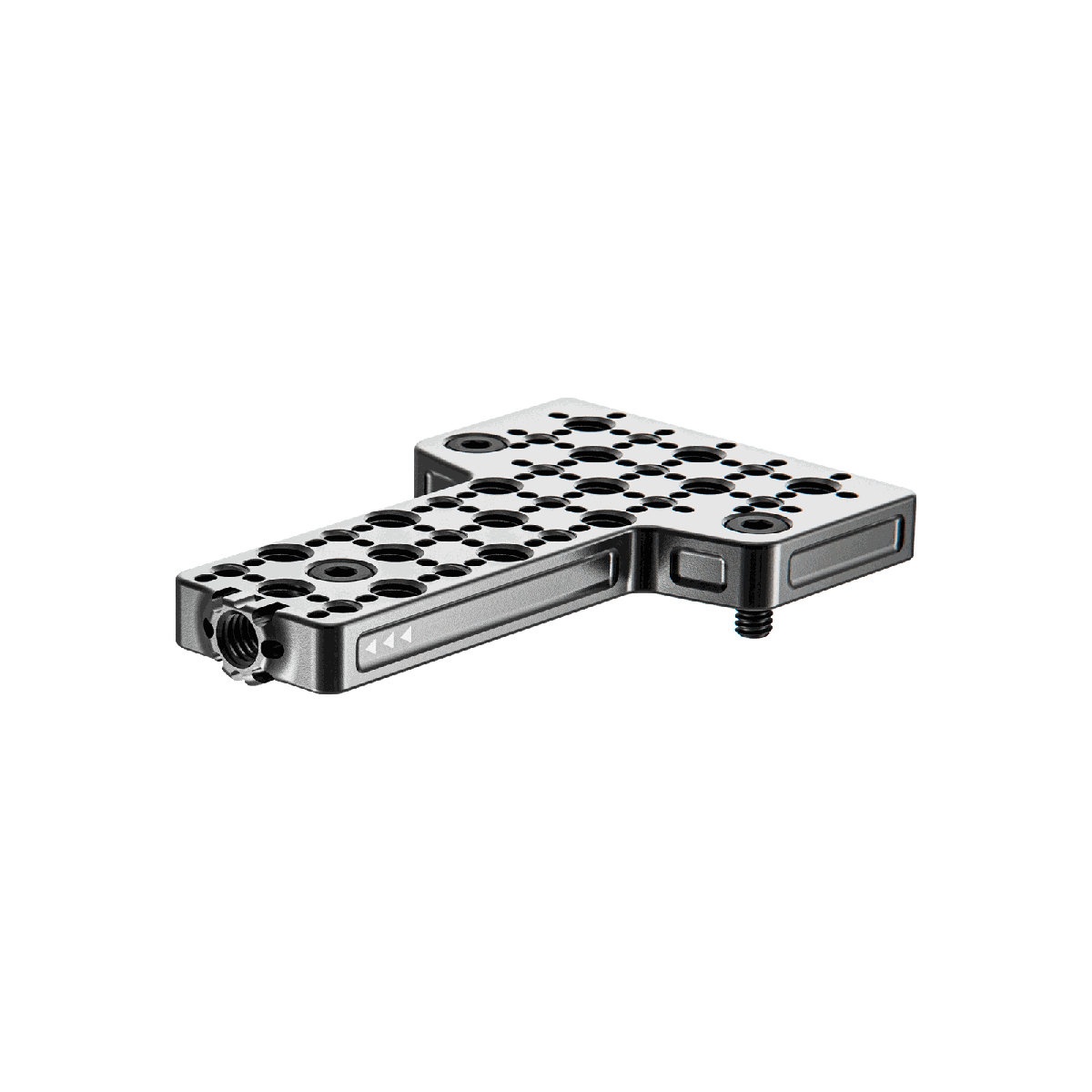

Wooden Camera Top Plate for Canon EOS C400 (Center)

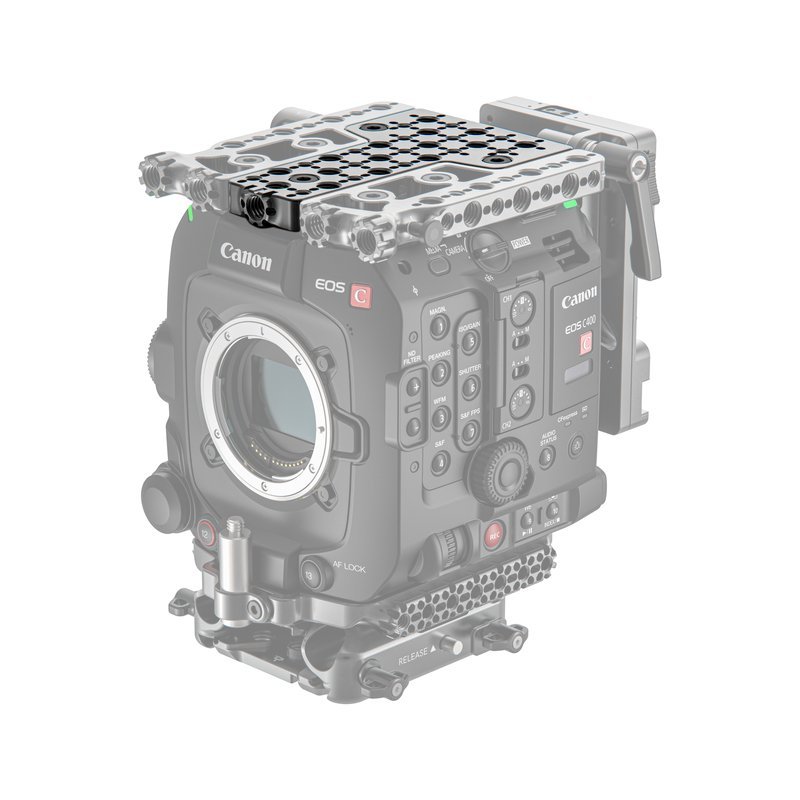

The Top Plate for Canon EOS C400 (Center) is a camera support accessory from Wooden Camera. The Center Top Plate lets you replace the native handle with the Ultra Handle 5" Kit or other third-party top handle, providing additional mounting points across the top of the camera. A forward facing 3/8"-16 mounting point allows for Bolt-On Rods and Rod Clamps. The plate installs easily with three included 1/4"-20 screws using a 3/16 hex tool. Etching indicates the suggested mounting point for the Ultra Handle 5" Kit.

It weighs 114.3 g (0.25 lbs). It mounts via 1/4"-20, 3/8"-16.

TypeCamera Support
CompatibilityCenter
Weight114.3 g (0.25 lbs)
Dimensions121.5 x 81 x 19.2 mm (4.8 x 3.2 x 0.75 in)
Mounting / Interface1/4"-20, 3/8"-16
Manufacturer Part NumberA00767
