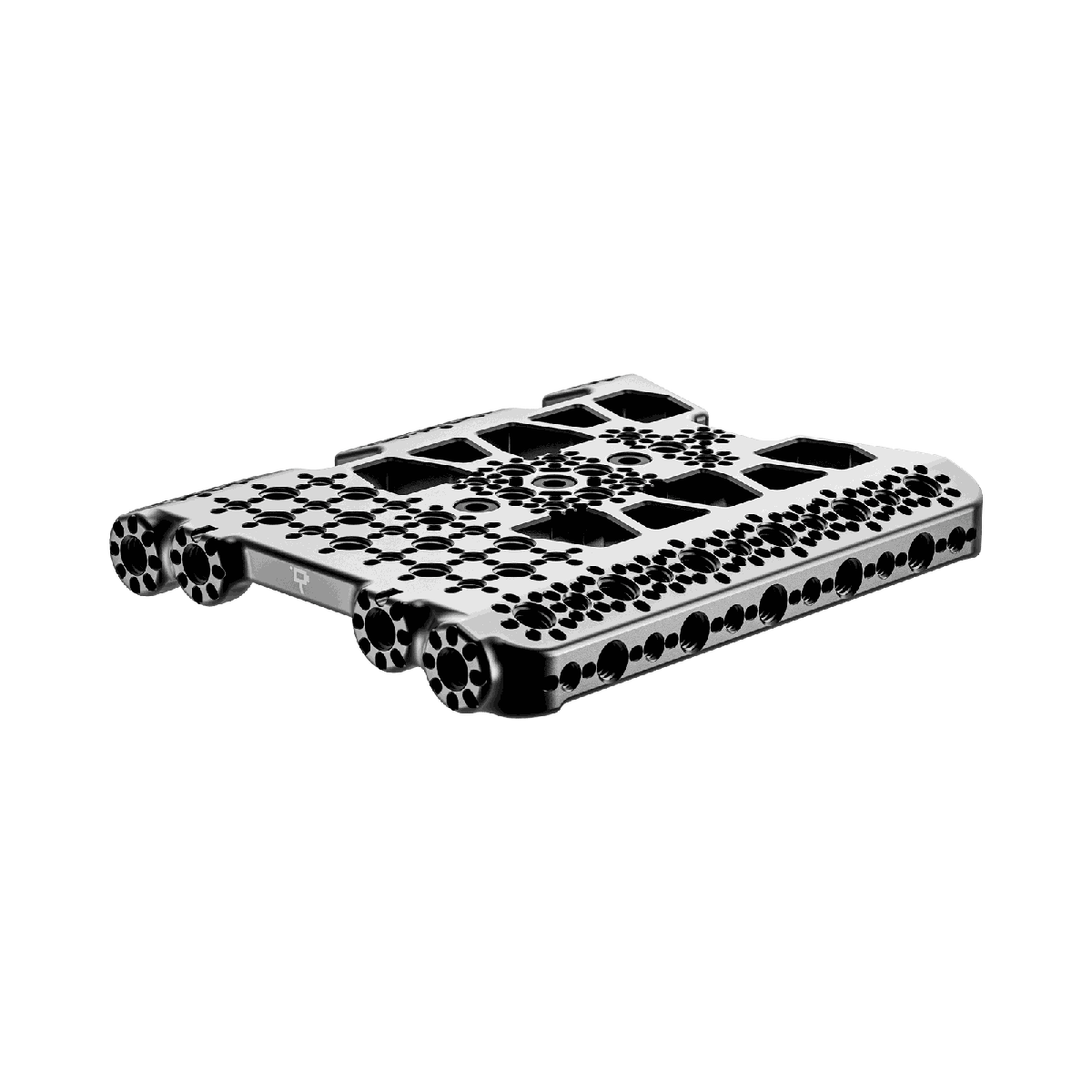

Wooden Camera Top Plate for Blackmagic URSA Cine 12K/17K
The Top Plate for Blackmagic URSA Cine 12K/17K is a camera support accessory from Wooden Camera. This system securely mounts to the top of the camera using three 1/4"-20 screws down the center of the camera and adds multiple 1/4"-20 and 3/8"-16 mounting points across the top and sides of the plate. The rear mounting point on the Assistant's Side of the camera allows for a mounting point to add the Top Plate Extension Block, while the front-facing 3/8"-16 mounting points allow users to add accessories like the Front Dual Rod Clamp to secure 15mm rods for accessories like EVF's or lens motors.
It weighs 412.8g (0.91 lbs). It mounts via 1/4"-20, 3/8"-16, 15mm rod.
| Type | Camera Support |
|---|---|
| Camera Compatibility | Blackmagic |
| Weight | 412.8g (0.91 lbs) |
| Dimensions | 160.6 x 135 x 56 mm (4.2 x 5.3 x 2.2 in) |
| Mounting / Interface | 1/4"-20, 3/8"-16, 15mm rod |
| Manufacturer Part Number | A00829 |
