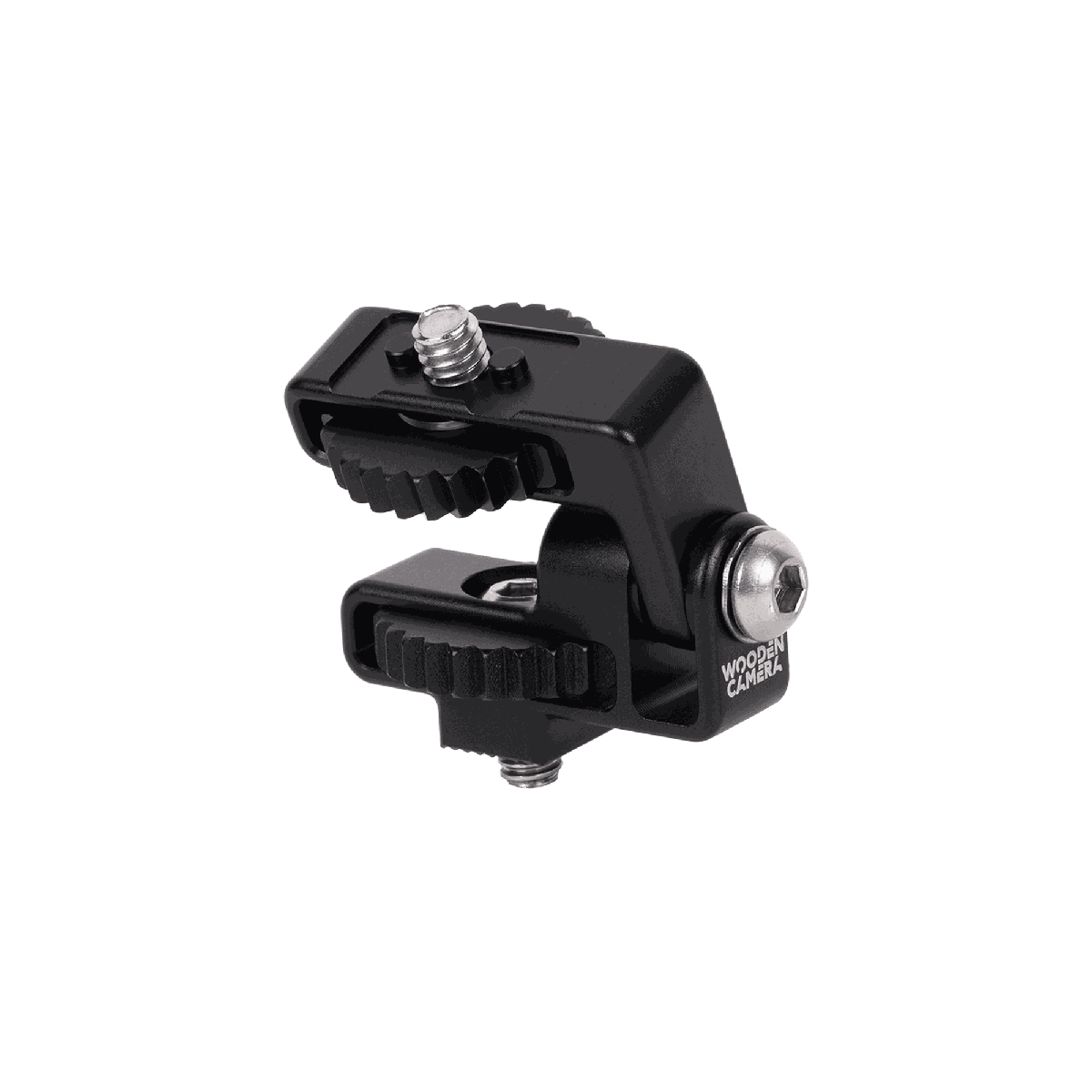

Wooden Camera Monitor Hinge for Canon EOS C70

This hinge tilts a full 180 degrees for shifting the viewing angle of an on-camera monitor mounted to the Canon EOS C70. The lower thumbwheel has interlocking ridges with an integrated 1/4-20 screw that mounts to any standard Canon Accessory Mount - the C70's hot shoe, the WC Top Handle (Canon C70), or the WC Top Plate (Canon C70).

The upper attachment thumbwheel carries a 1/4-20 screw with standard locating pins sized for SmallHD monitors, plus an additional rubber pad for mounting third-party monitors that don't use the SmallHD pin pattern.

Camera Compatibility	Canon EOS C70
Tilt Range	180 degrees
Lower Mount	1/4-20, Canon Accessory Mount interlock
Upper Mount	1/4-20 with SmallHD locating pins + rubber pad for others
Weight	57 g (0.1 lb)
Dimensions	38 x 50.8 x 31.7 mm (1.5 x 2 x 1.25 in)
Compatible Accessories	WC Top Handle (C70), WC Top Plate (C70)
