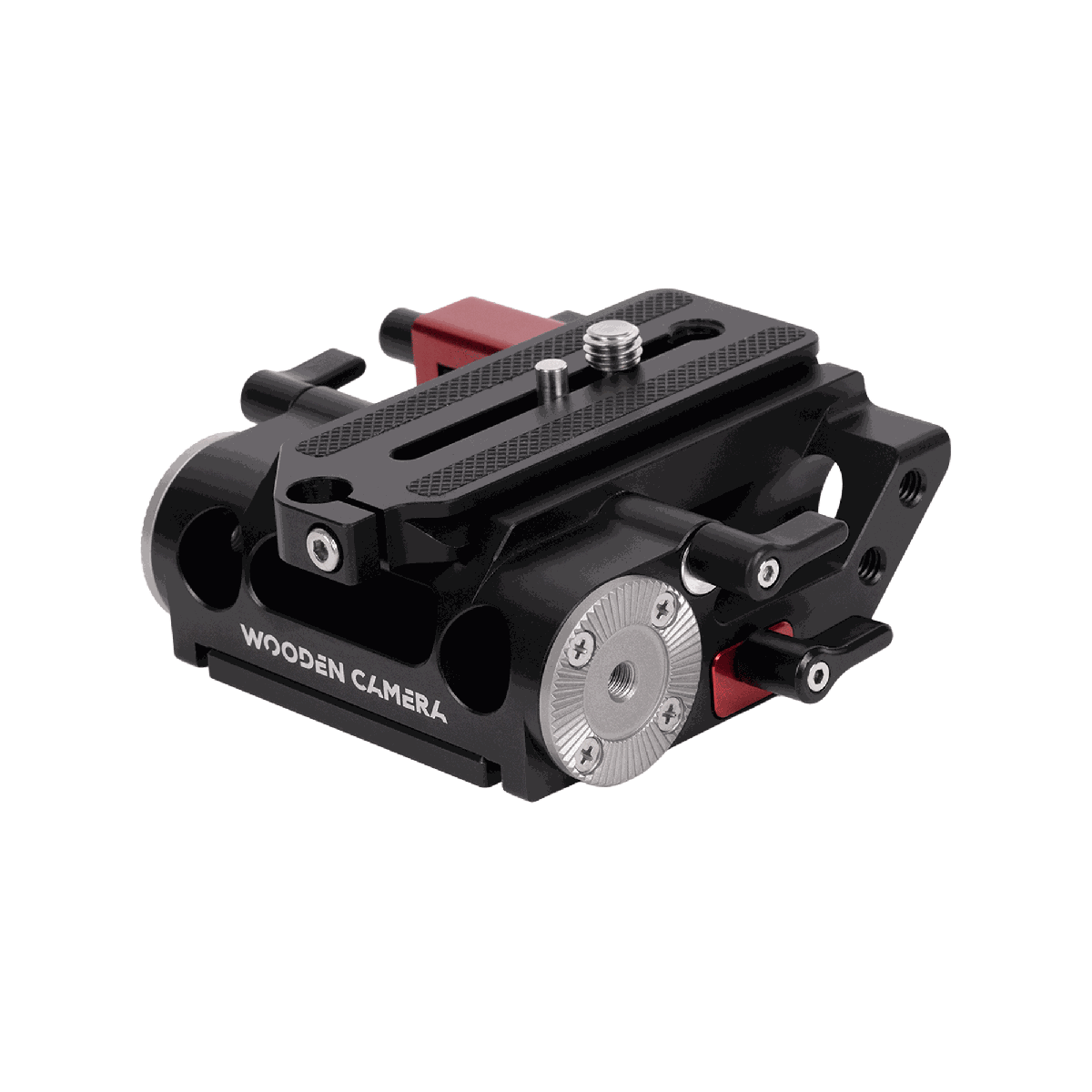

Wooden Camera LW 15mm Baseplate for Canon EOS C70

This quick-release baseplate carries lightweight 15mm rods through front to back at the correct lens height for the Canon EOS C70, with two locking thumbscrews per side. ARRI-standard M6 rosettes sit on both sides alongside 1/4-20 threaded holes, and one 3/8-16 ARRI accessory mount is available on the camera-right side.

An upper ARCA-Swiss standard dovetail, secured with a 3/8-16 screw and locating pin, slides into the baseplate core and includes a push-pull safety release pin for quick removal; a vertical lens-support post system is also built in. The lower ARRI-standard dovetail slot takes the included Quick Dovetail, which in turn mounts an ARRI-standard bridge plate such as the Quick Release Bridgeplate (19mm) or (15mm Studio).

Camera Compatibility	Canon EOS C70
Weight	400 g (0.8 lb)
Dimensions	90 x 120 x 40 mm (3.54 x 4.72 x 1.5 in)
Rod Support	15mm lightweight, front-to-back pass-through
Rosettes	2x ARRI-standard M6
Accessory Mount	1x 3/8-16 ARRI mount, camera-right
Dovetail	ARCA-Swiss upper with safety release pin; ARRI-standard lower
