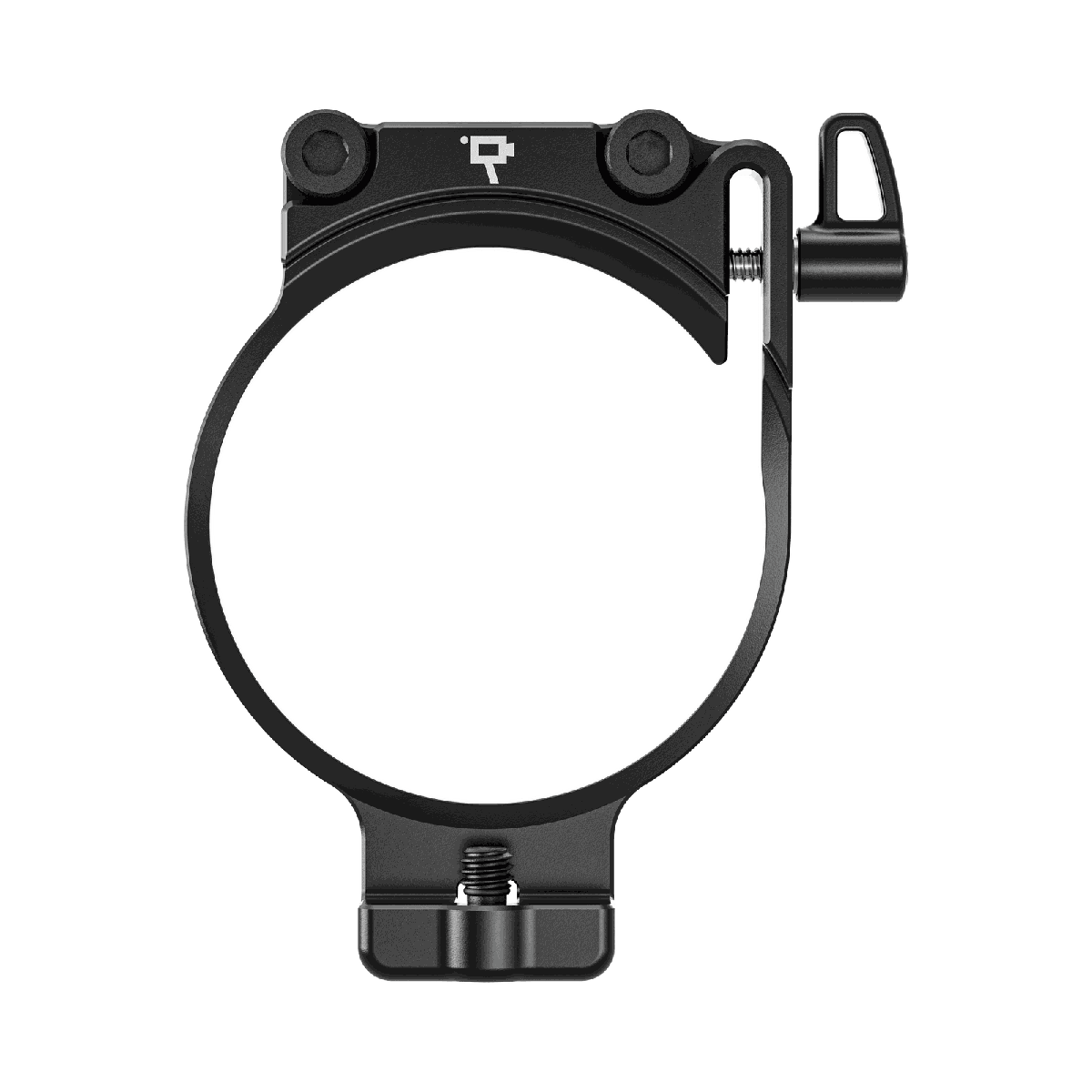

Wooden Camera LPL Lens Adapter Support for Canon EOS C50
The LPL Lens Adapter Support is designed to secure the Wooden Camera RF to LPL lens mount adapter, enhancing stability and reducing strain on the camera's lens mount. Installation requires the Top Plate of the cage. The support bracket bolts directly onto the Top Plate and uses a ratcheting tie-down system to tightly secure the lens adapter. This bracket should be installed before the lens mount adapter is added. Mounted using standard 1/4"-20 screws, this bracket was specifically engineered for use with Wooden Camera's Canon EOS C50 cage systems.
It weighs 43.32 g (0.096 lbs). It mounts via 1/4"-20.
| Type | Lens Supports |
|---|---|
| Weight | 43.32 g (0.096 lbs) |
| Dimensions | 85.1 x 85.6 x 19.2 mm (3.35 x 3.37 x 0.76 in) |
| Mounting / Interface | 1/4"-20 |
| Manufacturer Part Number | 50-A01130 |
