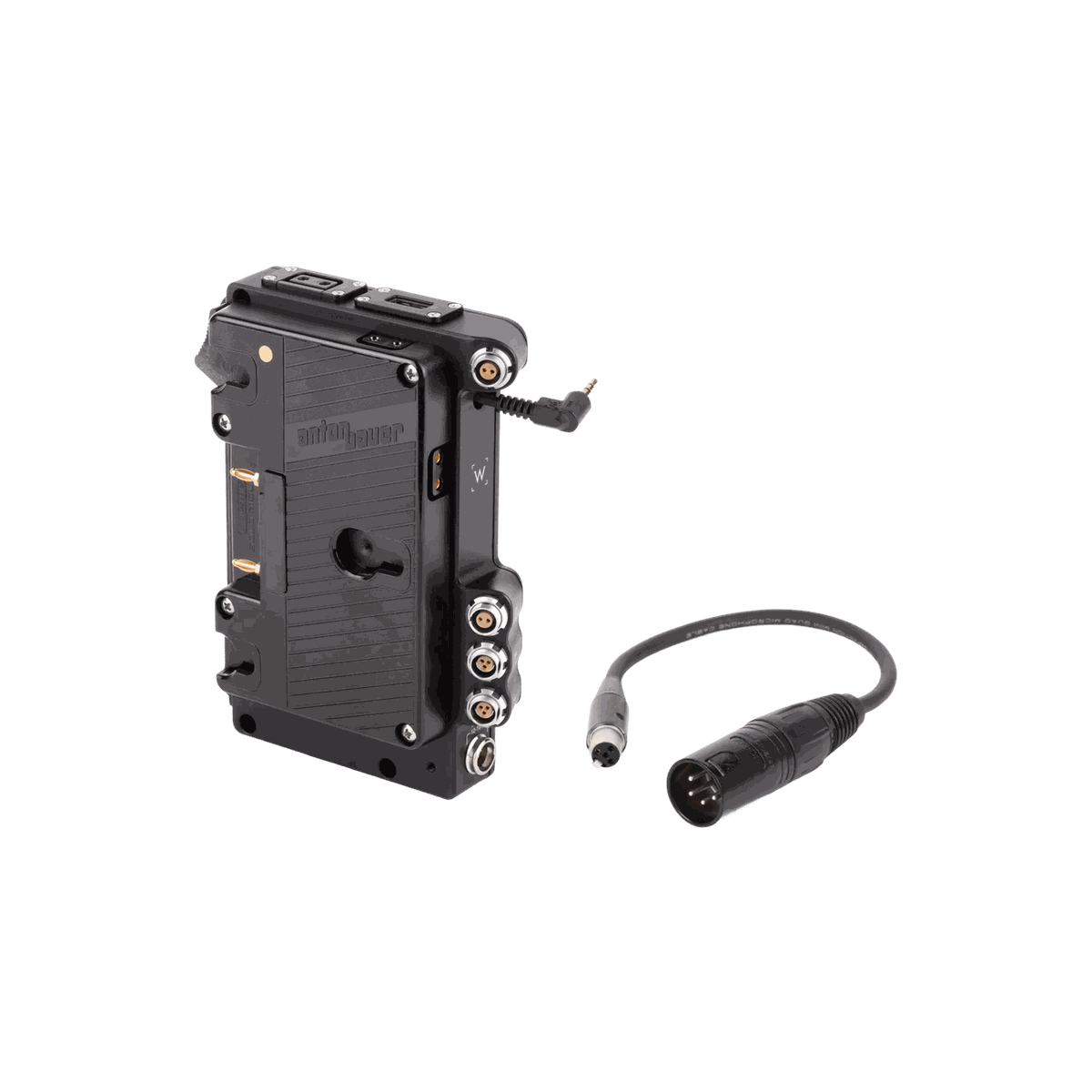

Wooden Camera D-Box for Blackmagic URSA Mini Pro/12K

This D-Box adds power distribution, standardized remote start/stop, and hot-swap capability to the Blackmagic URSA Mini Pro, URSA Mini Pro 12K, EF Mount, PL Mount, and B4 Mount cameras. It attaches directly to the camera body through a Molex connector, eliminating external cabling, and interfaces with the rear LANC port to control run/stop. It is not compatible with the Blackmagic URSA Cine 12K/17K.

An authentic Anton Bauer Gold Mount plate provides two unregulated D-Taps (one may be partially obscured by the right-side BNC connectors in use), with the camera drawing an unfused connection and the D-Box connectors sharing a 7.5A fuse. A Mini 4-pin XLR DC input, with an included pigtail to full-size 4-pin XLR, lets an AC supply or external power plate run the camera and accessories during a battery swap - note the OEM URSA Mini Pro power supply lacks the amperage for a hot swap with accessories attached; Wooden Camera's own 15V supply is rated for it.
