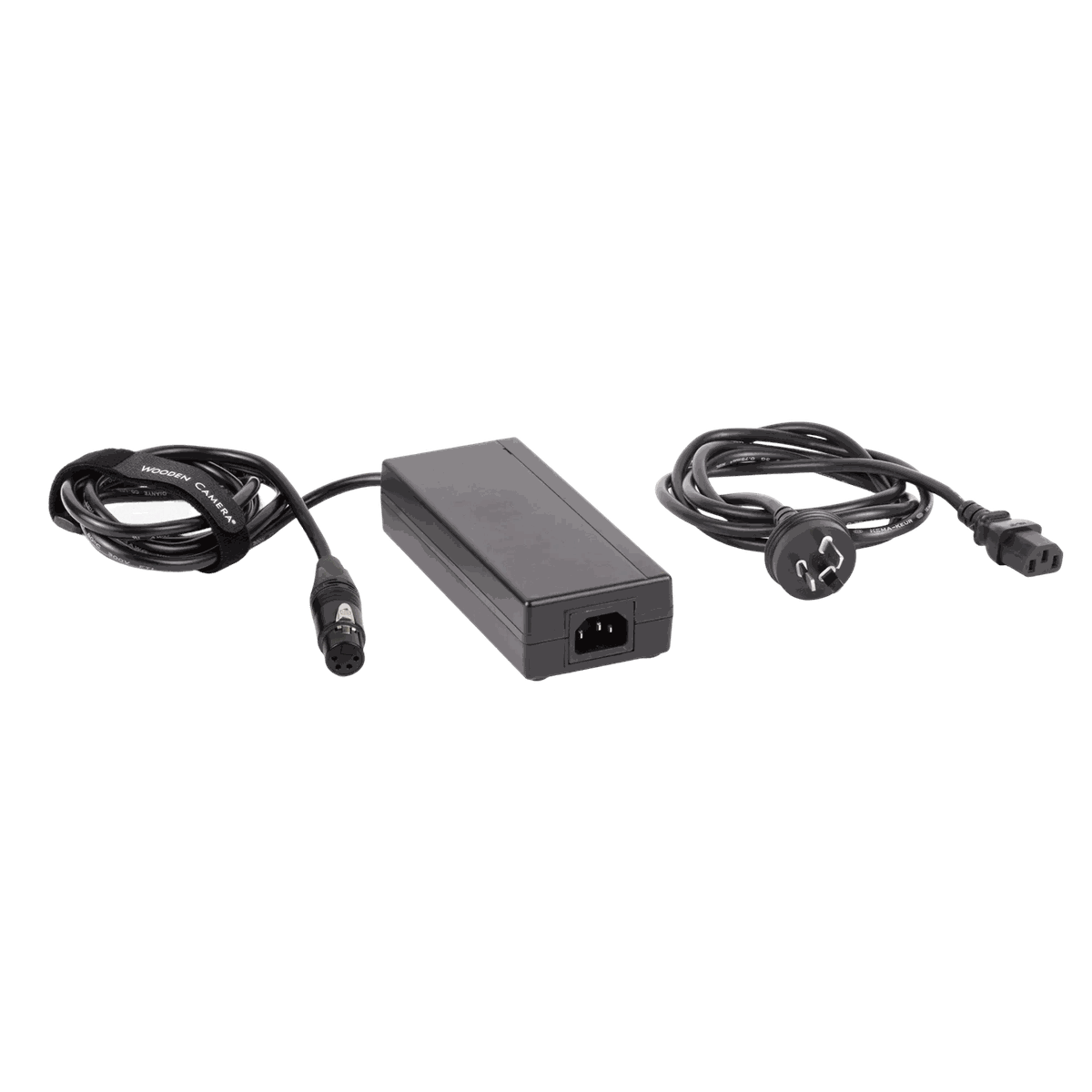

Wooden Camera 15V Power Supply (4pin XLR Female)
A 15V mains supply for cameras that take power on a 4pin XLR: Canon C500mkII, Panasonic VariCam and VariCam LT, Sony VENICE, VENICE 2, F55 and F5, Digital Bolex, and Blackmagic URSA, URSA Mini and Studio Camera. It plugs straight into the camera's male 4pin XLR input and delivers up to 10A, enough headroom to run the body plus the accessories hanging off it.
It also pairs with Wooden Camera's own 4pin XLR adapter cables and with the D-Box for ALEXA Mini and D-Box for C300mkII. The supply accepts 120V or 240V AC and ships with a choice of US, UK, European or Australian mains lead.
| Output Voltage | 15V |
|---|---|
| Output Current | Up to 10 A |
| Camera Connector | 4pin XLR female |
| AC Input | 120V / 240V |
| Mains Lead | Choice of US, UK, European or Australian |
| Camera Compatibility | Canon C500mkII, Panasonic VariCam / VariCam LT, Sony VENICE, VENICE 2, F55, F5, Digital Bolex, Blackmagic URSA, URSA Mini, Studio Camera |
| Also Works With | Wooden Camera D-Box (ALEXA Mini), D-Box (C300mkII) and 4pin XLR adapter cables |
| Manufacturer Part Number | 231000 (US), 231000-UK, 231000-EU, 231000-AU |
